PF97331B1-B00U-S99 SUNON Blower Fan

Brand :: SUNON

Model:: PF97331B1-B00U-S99 | SUNON 12V 19.2W 97x97x33mm DC Centrifugal Blower for Industrial Cooling

Type:: Blower Fans

Industry:: Industrial Cooling

Description:: Applied in servers and data-center electronics, SUNON PF97331B1-B00U-S99 is a 12 VDC DC blower in a 97 × 97 × 33 mm frame. 844.4 Pa maximum pressure is the standout documented duty-point value. For design qualification, start with the supplied airflow profile. Match the exact part number before approving a substitute.

Datasheet:: PF97331B1-B00U-S99 | SUNON 12V 19.2W 97x97x33mm DC Centrifugal Blower for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	97x97x33mm
Max.Air Flow(m³/h)	75.14
Max.Pressure(Pa)	844.4
Input Power(W)	19.2
Speed(rpm)	5400
Noise(db)	58

Product Features

Directed Air Cooling

SUNON PF97331B1-B00U-S99 brings active air movement to industrial equipment. This DC brushless blower helps equipment designers control thermal conditions around densely arranged parts.

The SUNON product series carries RoHS compliance and recognized safety approvals; buyers should confirm the approval marks for this exact suffix and target market. Correct airflow direction and inlet clearance help translate the documented operating point into reliable equipment-level cooling.

For PF97331B1-B00U-S99 integration, prioritize inlet clearance. Include environmental checks in engineering approval, and confirm the full model interface during sourcing review. This supports reliable cooling and traceable purchasing. Keep the intake free from nearby walls or bundled wiring.

Application Industry

Industrial Equipment

SUNON PF97331B1-B00U-S99 serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

How is PF97331B1-B00U-S99 electrically connected?

The supplied row does not state the connector or lead configuration. Follow the model-specific wiring drawing.

What maintenance is recommended for PF97331B1-B00U-S99?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Isolate power before cleaning or service.

How can PF97331B1-B00U-S99 affect operating cost?

Compare its listed 19.2 W input with the required airflow and run time. Total savings depend on the complete system duty point.

What speed is listed for PF97331B1-B00U-S99?

The listed speed is 5400 rpm. Confirm frequency, control method, and duty point for the installed system.

What airflow value is listed for PF97331B1-B00U-S99?

The worksheet lists up to 75.14 m³/h. Verify the operating point against system resistance.

Related Products

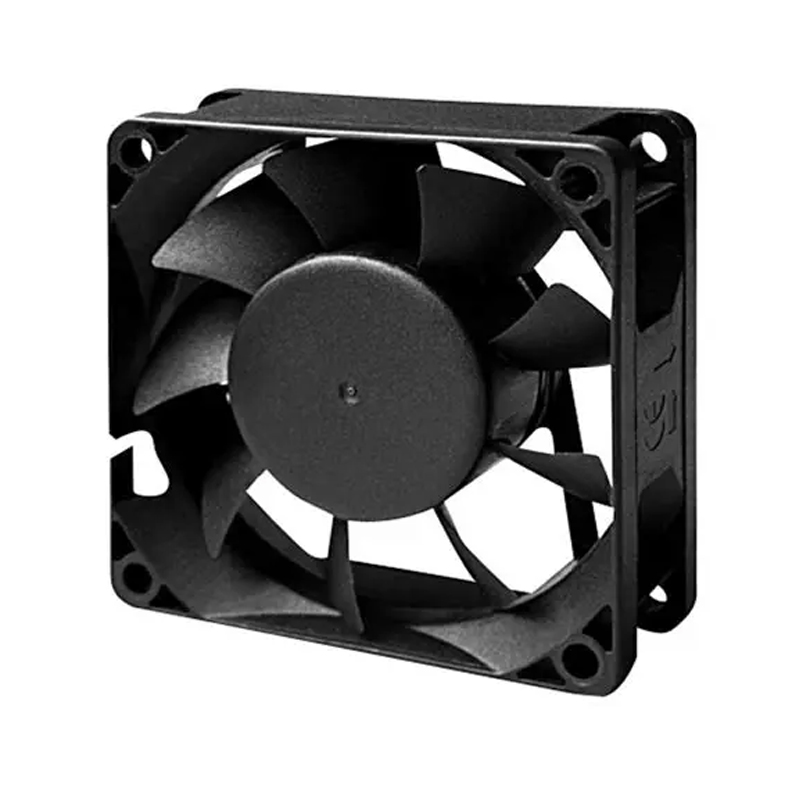

PF70201V1-1Q01U-S99 | SUNON 12V 3.42W 70x70x20mm 73.1m3/h DC Axial Fan for Industrial Cooling

The PF70201V1-1Q01U-S99 is SUNON's 12 VDC, 70 × 70 × 20 mm DC blower option for servers and data-center electronics. Up to 73.1 m³/h is its most prominent listed performance figure. During design qualification, compare the model's power demand. Match the exact part number before approving a substitute.

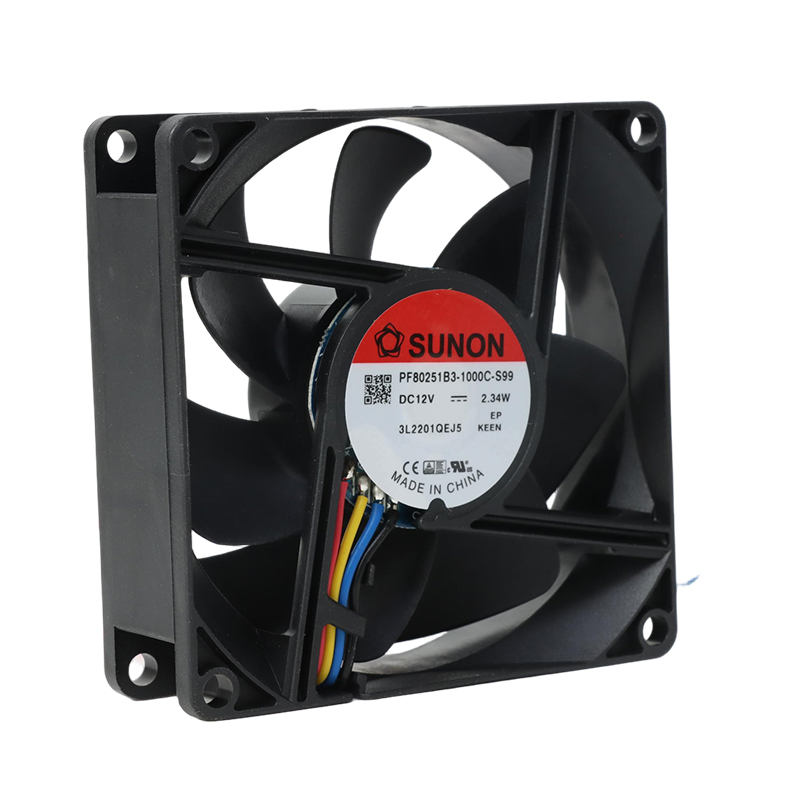

PF80251B3-1000U-S99 | SUNON 12V 2.34W 80x80x25mm 90.1m3/h DC Axial Fan for Industrial Cooling

Built around servers and data-center electronics, SUNON PF80251B3-1000U-S99 is a 12 VDC DC axial fan in a 80 × 80 × 25 mm frame. Up to 90.1 m³/h is its most prominent listed performance figure. Review its acoustic value during airflow-path design. Obtain the applicable curve before final duty-point approval.

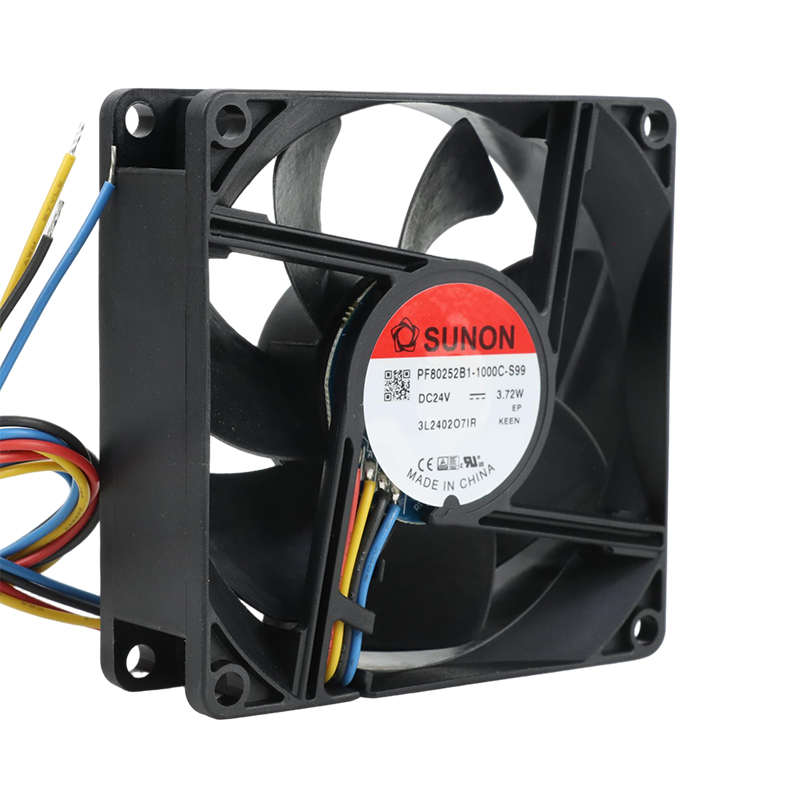

PF80252B1-1000U-S99 | SUNON 24V 3.72W 80x80x25mm 102m3/h DC Axial Fan for Industrial Cooling
