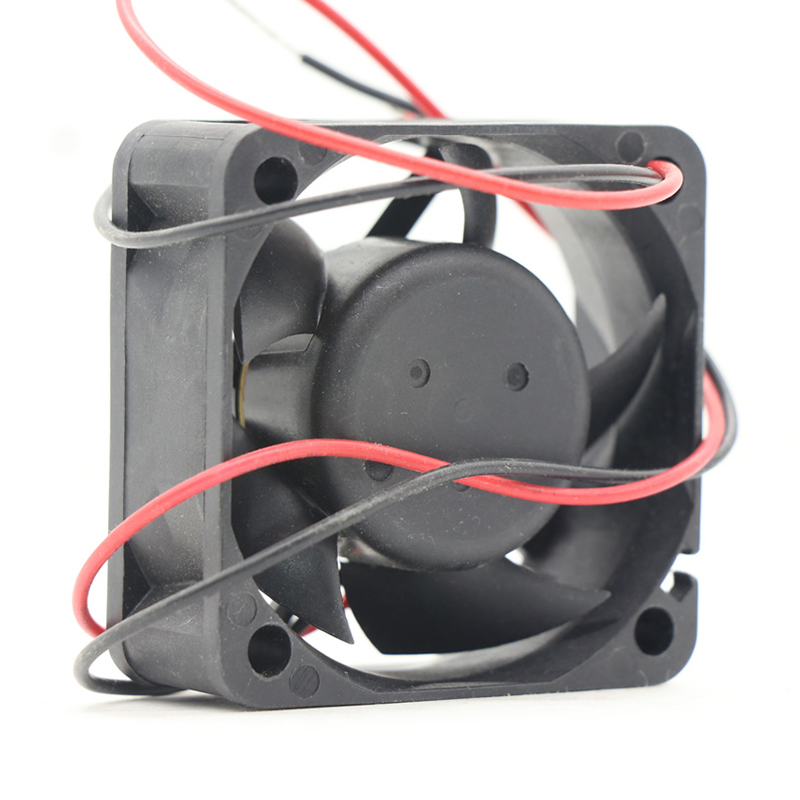

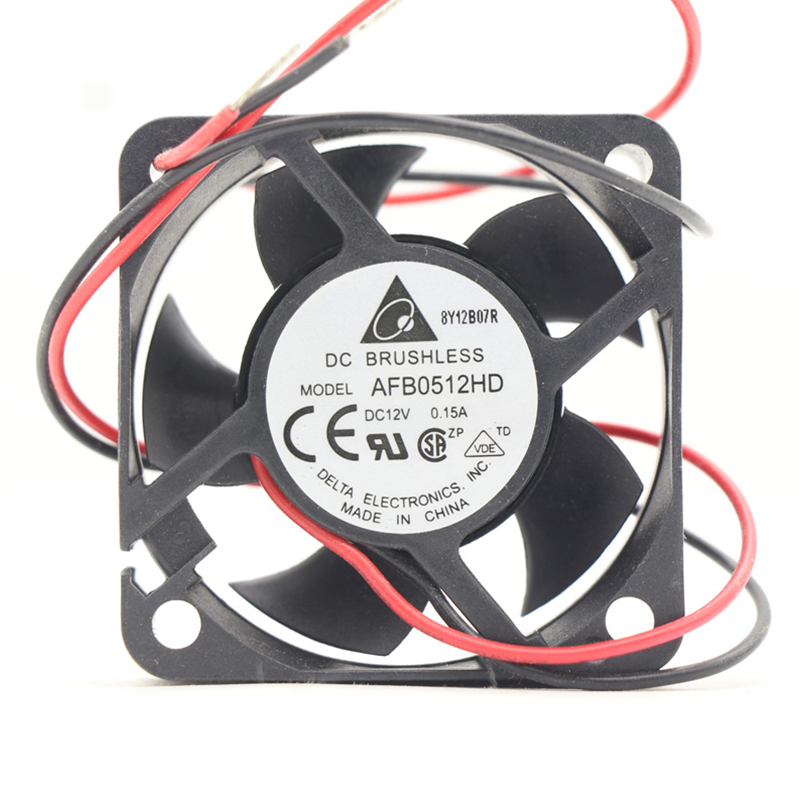

AFB0512HD Delta Blower Fan

Brand :: Delta

Model:: AFB0512HD | Delta Electronics 12VDC Axial Fan for Server, Storage and Power Supply Cooling

Type:: Blower Fans

Industry:: Data Center Cooling

Description:: AFB0512HD is a 12VDC axial fan intended for server, storage and power-supply ventilation. Its supplied 50 x 50 x 20 mm dimensions define an intermediate-depth format between 15 mm and 25 mm enclosure options.

Datasheet:: AFB0512HD | Delta Electronics 12VDC Axial Fan for Server, Storage and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	505020

Product Features

Compact DC Cooling

AFB0512HD is a Delta cooling solution for server and storage equipment. This brushless DC axial fan gives designers a practical means of circulating air through a thermally loaded equipment section.

Its listed 50 x 50 x 20 mm format defines the space needed for installation, helping designers reserve room for adjacent components and cable routing. The axial layout moves air along the fan axis, supporting a direct ventilation route through the equipment opening. The mounting arrangement and duct transitions should preserve the intended air path so cooling is not lost to leakage or recirculation.

Equipment manufacturers and maintenance teams should match the complete part number and installation limits for reliable operation across the service cycle.

Application Industry

Server & Storage

Delta AFB0512HD serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

For power-supply equipment, Delta AFB0512HD provides equipment cooling around power-conversion components. Managing electrical conversion losses helps maintain dependable power delivery.

Telecommunications

In telecommunications equipment, air movement helps handle continuous communication duty. Delta AFB0512HD supports cooling around densely arranged electronic assemblies, contributing to service continuity.

Industrial Controls

Delta AFB0512HD supports cooling in industrial control equipment. Air circulation around controllers and electronic modules helps manage heat accumulated within enclosures, supporting stable automation operation.

Frequently Asked Questions

What maximum airflow is listed for AFB0512HD?

No maximum-airflow value is present in the filter row. Use the exact-model pressure-flow curve rather than estimating performance from frame size or series.

Why choose AFB0512HD over a general-purpose fan?

AFB0512HD provides a defined axial fan format in a 50 x 50 x 20 mm size. Compare its fan curve with the actual duty point rather than assuming a universal advantage.

What equipment is AFB0512HD intended to cool?

AFB0512HD is listed for Server, Storage and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

Does AFB0512HD support speed control?

The filter data does not confirm a control interface. Check the exact-model datasheet and wiring for PWM, analog control, FG/RD feedback or fixed-speed operation before connection.

What operating speed is listed for AFB0512HD?

No speed value is present in the filter row. Confirm rated speed and any control range from the exact-model specification before selection.
