AFB0712HHB Delta Blower Fan

Brand :: Delta

Model:: AFB0712HHB | Delta Electronics 12VDC 3.12W Axial Fan for Server and Power Supply Cooling

Type:: Blower Fans

Industry:: Data Center Cooling

Description:: AFB0712HHB combines a 70 mm square footprint with a 15 mm depth for server and power-supply cooling. This 12VDC axial fan lists 4300 rpm operation, 63.78 m3/h maximum airflow and 3.12 W input.

Datasheet:: AFB0712HHB | Delta Electronics 12VDC 3.12W Axial Fan for Server and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	70x70x15
Max.Air Flow(m³/h)	63.78
Max.Pressure(Pa)	52.27
Input Power(W)	3.12
Speed(rpm)	4300
Noise(db)	38.5

Product Features

DC Equipment Cooling

Delta AFB0712HHB serves telecommunications equipment as a brushless DC axial fan. Equipment builders can use its mechanical format to establish forced ventilation near heat-producing parts.

The listed 3.12 W input is relevant to supply sizing and the system energy budget; actual consumption depends on the operating duty. The series combines ball-bearing construction with UL 94V-0 materials, addressing mechanical durability and component flammability requirements. Separating the intake from warmed exhaust improves the effectiveness of air exchange across the equipment section.

It suits engineering buyers who need a defined cooling component. Verify the exact wiring and environmental limits before approving long-term installation.

Application Industry

Server & Storage

Delta AFB0712HHB serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

Delta AFB0712HHB supports cooling in power-supply equipment. Air circulation around power-conversion components helps manage electrical conversion losses, supporting dependable power delivery.

Telecommunications

In telecommunications equipment, Delta AFB0712HHB helps remove heat from densely arranged electronic assemblies. The cooling solution addresses continuous communication duty to support service continuity.

Industrial Controls

For industrial control equipment, Delta AFB0712HHB provides equipment cooling around controllers and electronic modules. Managing heat accumulated within enclosures helps maintain stable automation operation.

Frequently Asked Questions

Can AFB0712HHB run continuously in 24/7 equipment?

The supplied filter data does not establish an unconditional 24/7 rating. Confirm bearing life, temperature range, duty cycle and derating in the exact datasheet, then validate system-level redundancy.

Can AFB0712HHB reduce total ownership cost?

The provided parameters do not prove a cost saving. Compare purchase price, power at the real operating point, service access, expected life and downtime risk for the complete cooling system.

Can AFB0712HHB directly replace another fan?

A matching outline alone does not prove compatibility. Check 12VDC, mounting dimensions, connector, pinout, airflow direction, control signals and the required pressure-flow point.

Is stock and lead time stable for AFB0712HHB?

In Stock is shown in the workbook, but this is not a delivery guarantee. Confirm the complete part number, quantity, current inventory and committed lead time when ordering.

What installation space is required for AFB0712HHB?

The workbook lists 70x70x15 mm. Confirm overall depth, hole pattern, connector clearance and guard or inlet-ring dimensions in the exact mechanical drawing.

What equipment is AFB0712HHB intended to cool?

AFB0712HHB is listed for Server and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

Related Products

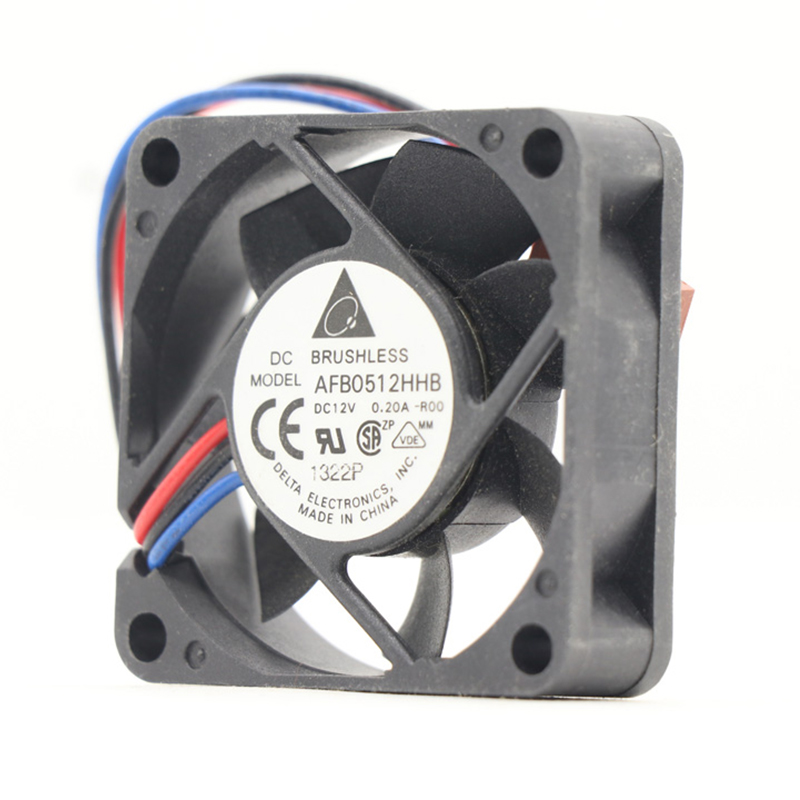

AFB0512HHB | Delta Electronics 12VDC 1.56W Axial Fan for Server and Power Supply Cooling

AFB0512HHB provides a 15 mm-deep, 50 mm axial format for servers and power supplies. The 12VDC fan is listed at 6400 rpm, with 1.56 W input and 28 m3/h maximum airflow as its operating selection points.

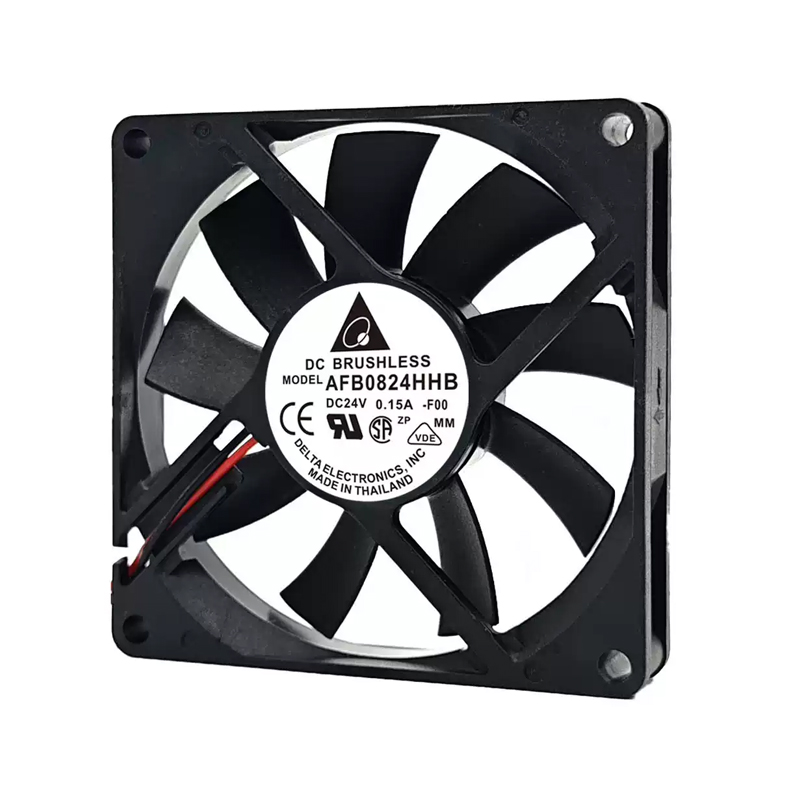

AFB0824HHB | Delta Electronics 24VDC 2.4W Axial Fan for Server and Power Supply Cooling

An 80 x 80 x 15 mm axial layout distinguishes AFB0824HHB for server and power-supply cooling. The 24VDC fan is listed at 3400 rpm and 2.4 W, with 60.6 m3/h maximum airflow for comparing enclosure options.

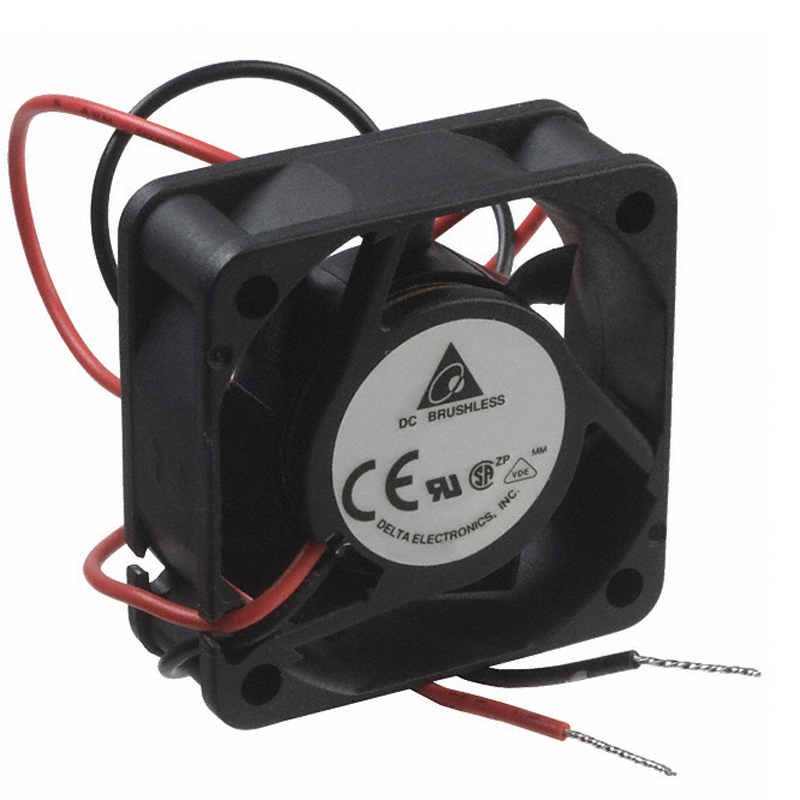

AFB0424HHB | Delta Electronics 24VDC 2.16W Axial Fan for Server and Power Supply Cooling

For 24VDC server electronics, AFB0424HHB offers axial fan cooling in a 40 x 40 x 15 mm frame. A listed 19.3 m3/h maximum airflow and 8300 rpm rotor are paired with 2.16 W input for this voltage variant.

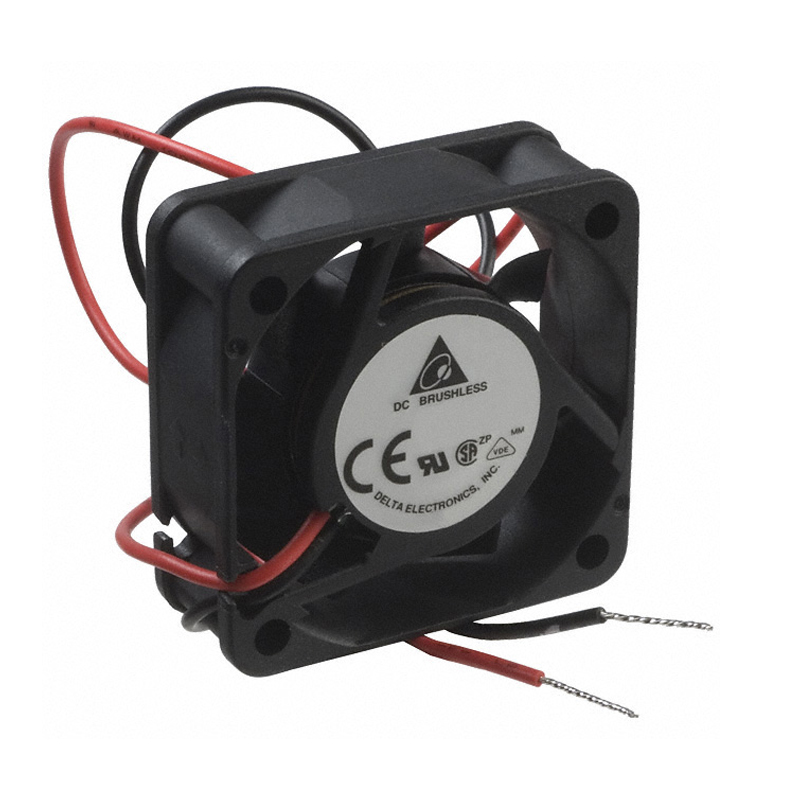

AFB0412HHB | Delta Electronics 12VDC 1.56W Axial Fan for Server and Power Supply Cooling
