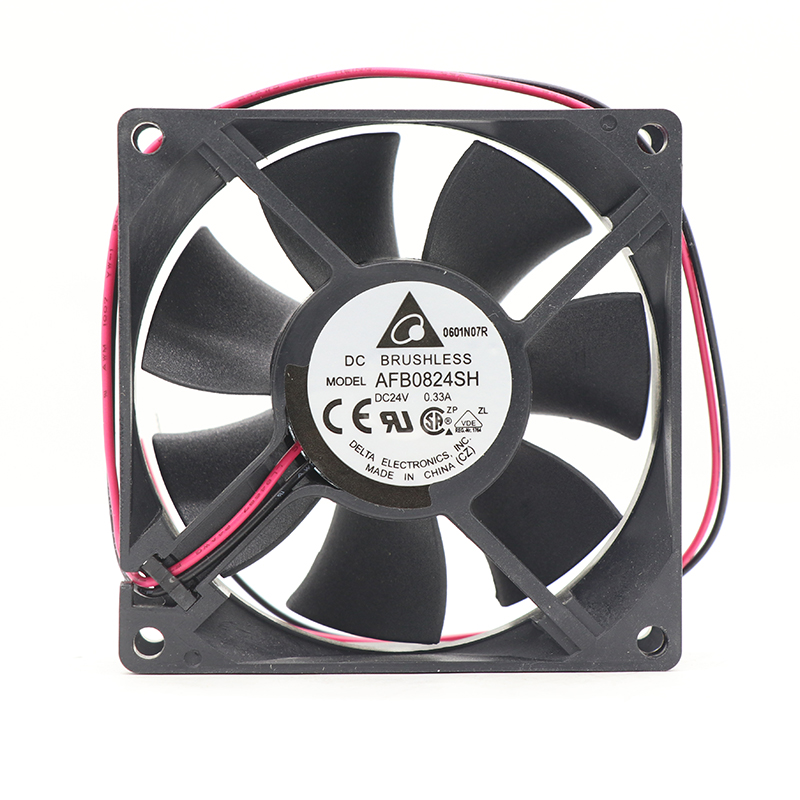

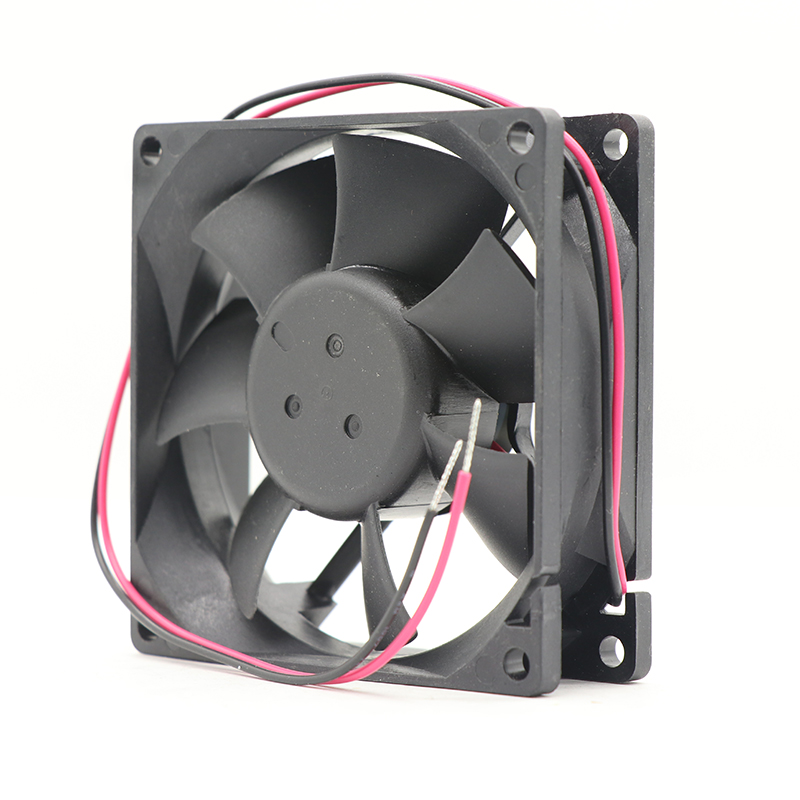

AFB0824SH Delta Compact Fan

Brand :: Delta

Model:: AFB0824SH | Delta Electronics 24VDC 3.84W Axial Fan for Server and Power Supply Cooling

Type:: Compact Fans

Industry:: Data Center Cooling

Description:: AFB0824SH is an 80 x 80 x 25 mm axial fan for server and power-supply enclosures. Using 24VDC, it lists 4000 rpm operation and a 3.84 W input, with 79 m3/h maximum airflow specified for selection.

Datasheet:: AFB0824SH | Delta Electronics 24VDC 3.84W Axial Fan for Server and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	808025
Max.Air Flow(m³/h)	79
Input Power(W)	3.84
Speed(rpm)	4000
Noise(db)	40

Product Features

DC Equipment Cooling

The AFB0824SH addresses ventilation needs in industrial control equipment. Delta's brushless DC axial fan format allows cooling airflow to be integrated alongside the equipment's heat-producing assemblies.

The listed 3.84 W input is relevant to supply sizing and the system energy budget; actual consumption depends on the operating duty. The axial layout moves air along the fan axis, supporting a direct ventilation route through the equipment opening. Matching the fan curve to the finished air path supports efficient cooling; free-air flow alone does not determine installed performance.

For OEM design-in and replacement sourcing, confirm the full suffix, connector and mounting pattern to support dependable service in the intended assembly.

Application Industry

Server & Storage

For server and storage equipment, Delta AFB0824SH provides equipment cooling around processors, drives and other heat-producing assemblies. Managing sustained computing loads helps maintain stable equipment temperatures.

Power Supplies

In power-supply equipment, air movement helps handle electrical conversion losses. Delta AFB0824SH supports cooling around power-conversion components, contributing to dependable power delivery.

Telecommunications

Delta AFB0824SH supports cooling in telecommunications equipment. Air circulation around densely arranged electronic assemblies helps manage continuous communication duty, supporting service continuity.

Industrial Controls

In industrial control equipment, Delta AFB0824SH helps remove heat from controllers and electronic modules. The cooling solution addresses heat accumulated within enclosures to support stable automation operation.

Frequently Asked Questions

What equipment is AFB0824SH intended to cool?

AFB0824SH is listed for Server and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

How should noise from AFB0824SH be evaluated?

The listed noise value is 40 dB, but compare values only under matching test conditions. Installed noise also depends on speed, restriction, resonance and enclosure geometry.

Can AFB0824SH directly replace another fan?

A matching outline alone does not prove compatibility. Check 24VDC, mounting dimensions, connector, pinout, airflow direction, control signals and the required pressure-flow point.

How should the energy efficiency of AFB0824SH be assessed?

The listed input-power figure is 3.84 W, but efficiency must be evaluated at the required airflow and pressure. Check the applicable fan curve and test conditions before comparison.

What supply voltage should be used for AFB0824SH?

24VDC is listed for AFB0824SH. Verify the allowable input range, phase, frequency where applicable, polarity and wiring diagram in the exact specification.

What operating speed is listed for AFB0824SH?

4000 rpm is listed in the workbook. This value alone does not establish adjustable-speed capability; confirm the control input and permitted operating range in the exact datasheet.

Related Products

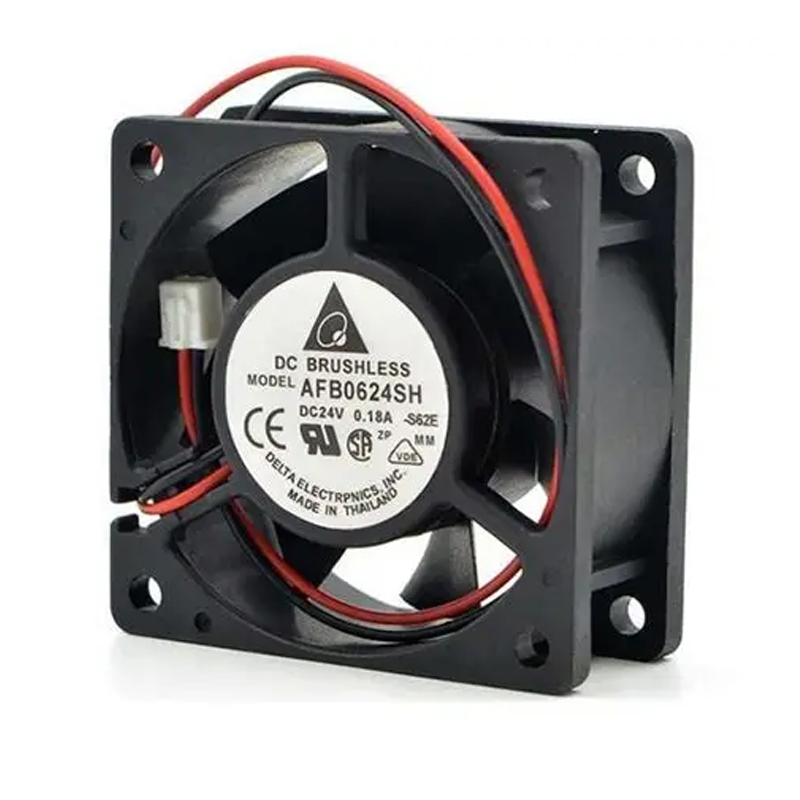

AFB0624SH | Delta Electronics 24VDC 4.08W Axial Fan for Server and Power Supply Cooling

AFB0624SH places server cooling in a 60 mm axial fan frame powered by 24VDC. The SH entry lists 6000 rpm and 4.08 W, giving it a different speed-and-power combination from the 5500 rpm VH entry in the supplied range.

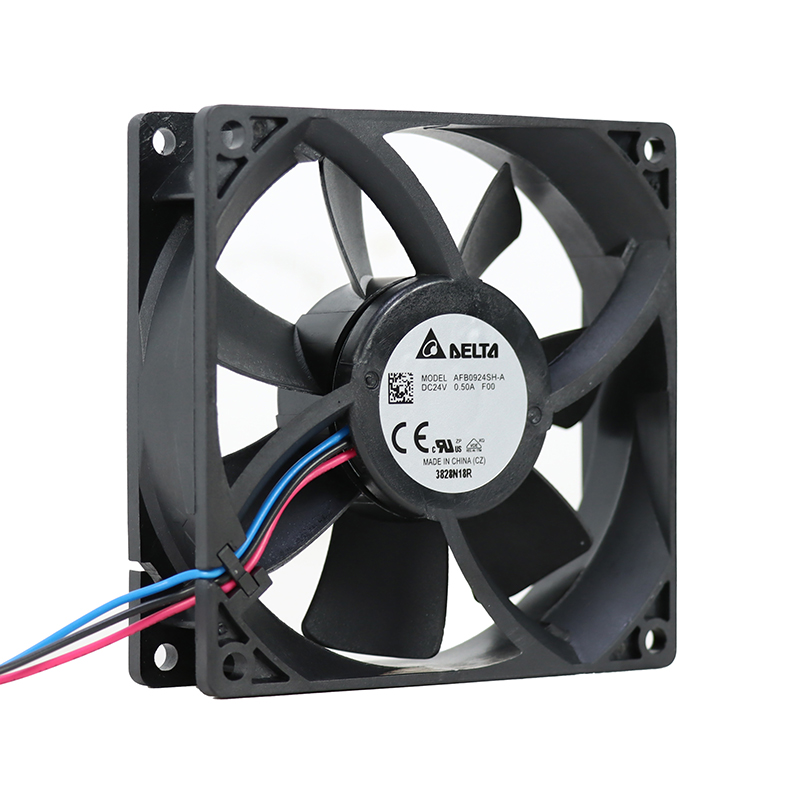

AFB0924SH | Delta Electronics 24VDC 9.6W Axial Fan for Server and Power Supply Cooling

AFB0924SH provides axial ventilation for server and power-supply enclosures using 24VDC. The 92 x 92 x 25 mm fan lists 174 m3/h maximum airflow, with a 4800 rpm rotor and 9.6 W input specification.

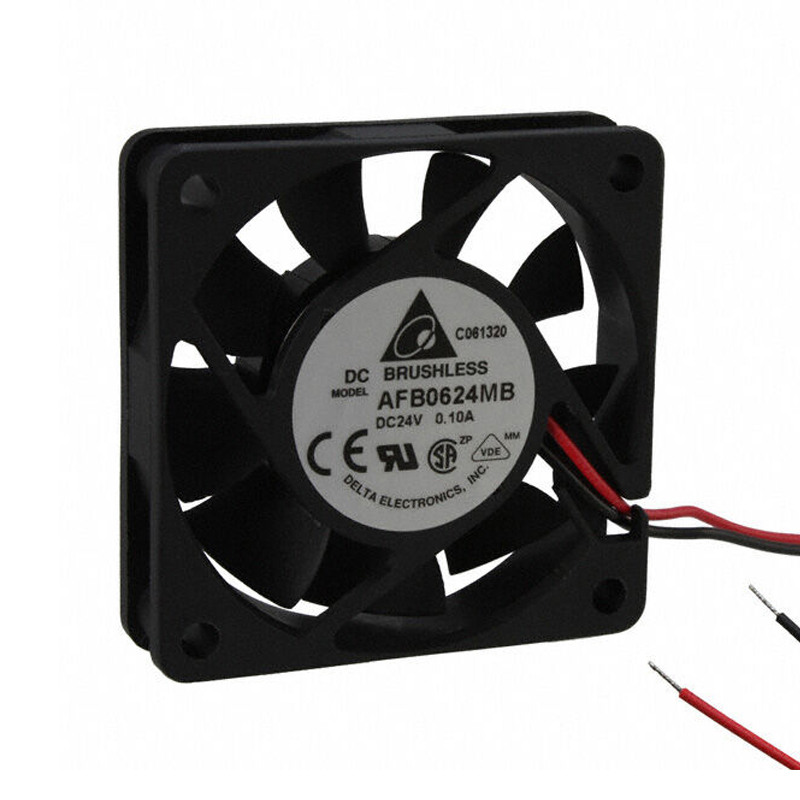

AFB0624MB | Delta Electronics 24VDC 1.44W Axial Fan for Server and Power Supply Cooling

A 1.44 W input makes AFB0624MB a lower-input entry among the listed 24VDC axial fan fans. For server and power-supply ventilation, it provides a 60 x 60 x 15 mm format with a specified 4000 rpm rotor.

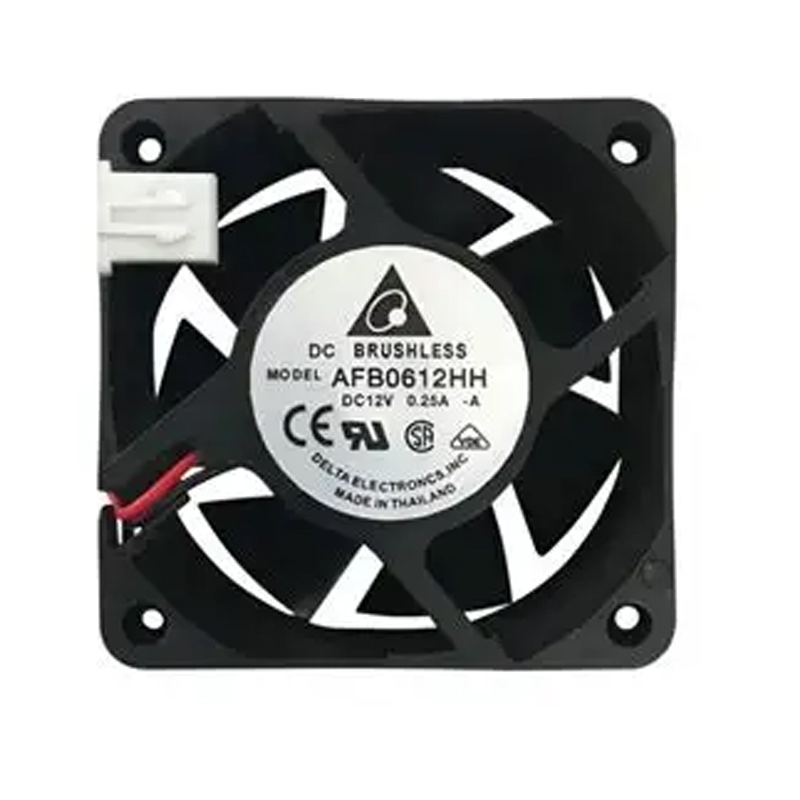

AFB0612HH-A | Delta Electronics 12VDC 2.04W Axial Fan for Server and Power Supply Cooling

AFB0612HH-A combines a 5000 rpm rotor with a 12VDC axial fan motor for server and power-supply cooling. Its listed 2.04 W input and 74 Pa maximum static pressure accompany a 60 x 60 x 25.4 mm frame.

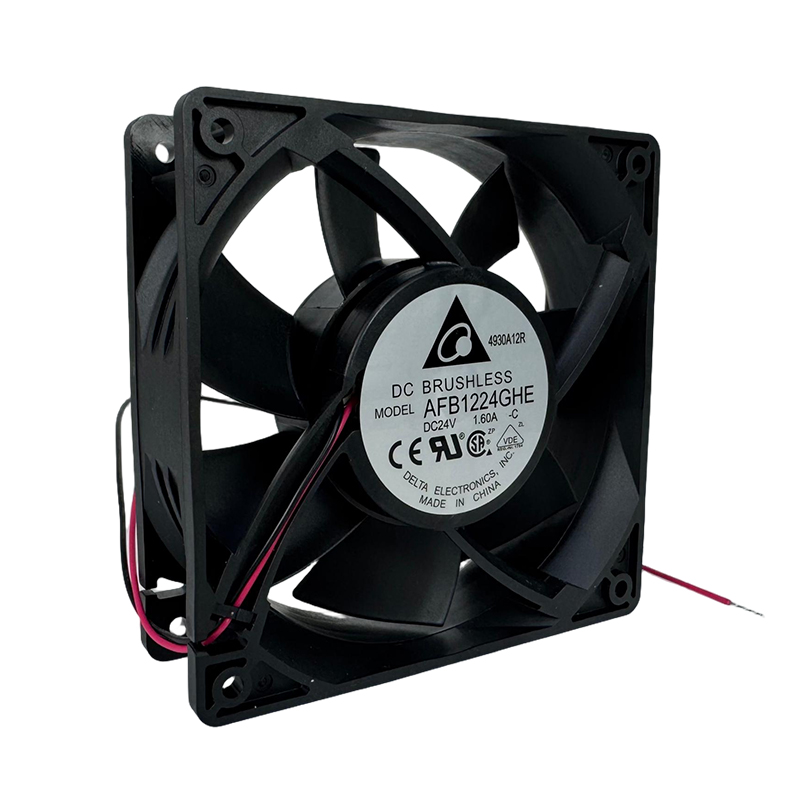

AFB1224GHE-C | Delta Electronics 24VDC 27.6W Axial Fan for Server and Power Supply Cooling

AFB1224GHE-C is a 24VDC axial fan for server chassis, with 409.7 m3/h listed maximum airflow. Its 27.6 W input differs from the 12VDC GHE entry; retain the -C suffix when checking connector and control configuration.

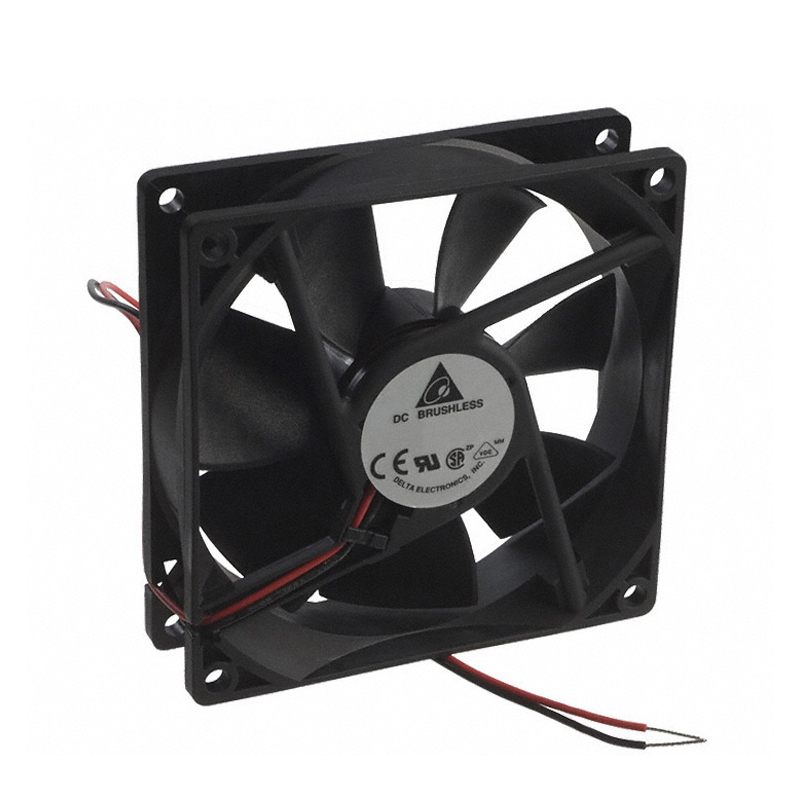

AFB0912HH | Delta Electronics 12VDC 3W Axial Fan for Server, Storage and Power Supply Cooling
