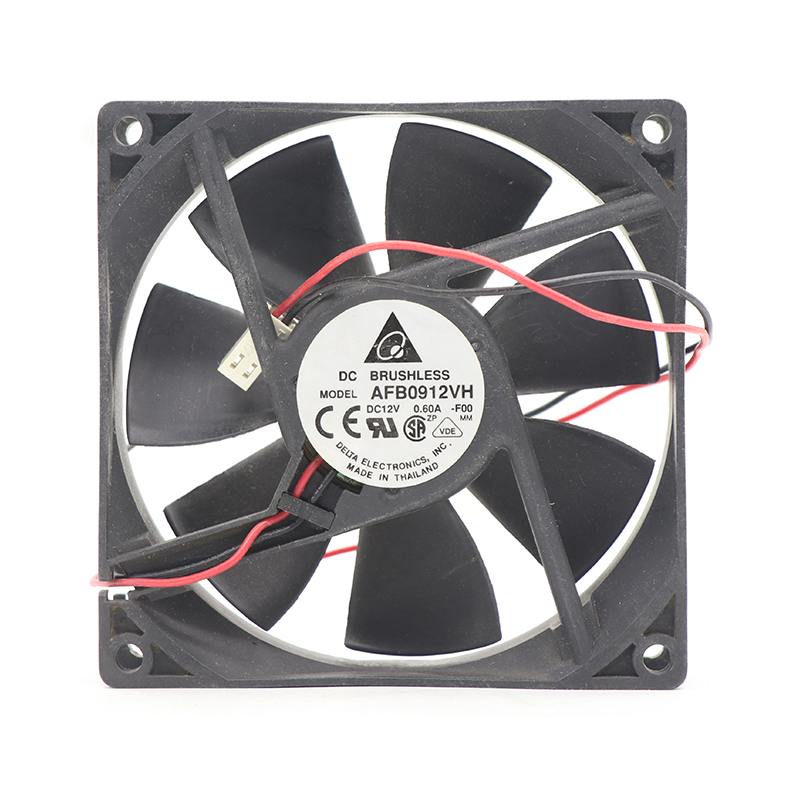

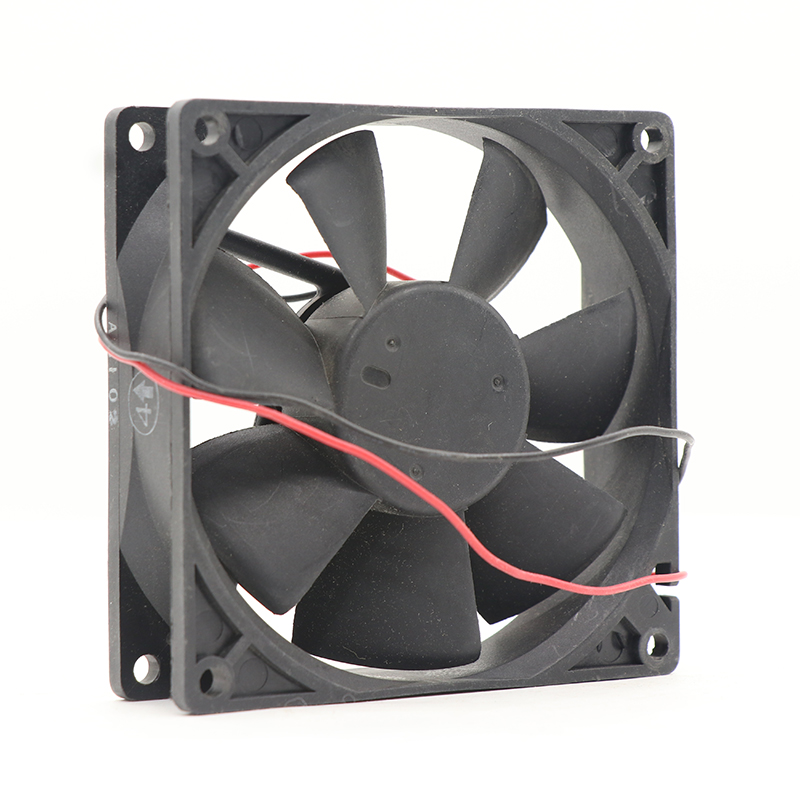

AFB0912VH Delta Compact Fan

Brand :: Delta

Model:: AFB0912VH | Delta Electronics 12VDC 4.8W Axial Fan for Server and Power Supply Cooling

Type:: Compact Fans

Industry:: Data Center Cooling

Description:: AFB0912VH offers a 92 mm axial fan format for server and power-supply cooling on 12VDC. Its listed 4.8 W input accompanies 3800 rpm operation and 115.26 m3/h maximum airflow in a 25 mm-deep body.

Datasheet:: AFB0912VH | Delta Electronics 12VDC 4.8W Axial Fan for Server and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	929225
Max.Air Flow(m³/h)	115.26
Input Power(W)	4.8
Speed(rpm)	3800
Noise(db)	45

Product Features

DC Equipment Cooling

The Delta AFB0912VH is a brushless DC axial fan for server and storage equipment. It provides a defined airflow path where equipment layout leaves limited room for passive heat removal.

A listed speed of 3800 rpm helps define the operating profile when reviewing airflow demand, mechanical mounting and the enclosure's acoustic target. The axial layout moves air along the fan axis, supporting a direct ventilation route through the equipment opening. A controlled exhaust route limits recirculation, allowing the delivered air to carry heat away rather than return to the inlet.

It suits engineering buyers who need a defined cooling component. Verify the exact wiring and environmental limits before approving long-term installation.

Application Industry

Server & Storage

Delta AFB0912VH serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

For power-supply equipment, Delta AFB0912VH provides equipment cooling around power-conversion components. Managing electrical conversion losses helps maintain dependable power delivery.

Telecommunications

In telecommunications equipment, air movement helps handle continuous communication duty. Delta AFB0912VH supports cooling around densely arranged electronic assemblies, contributing to service continuity.

Industrial Controls

Delta AFB0912VH supports cooling in industrial control equipment. Air circulation around controllers and electronic modules helps manage heat accumulated within enclosures, supporting stable automation operation.

Frequently Asked Questions

What equipment is AFB0912VH intended to cool?

AFB0912VH is listed for Server and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

What maximum airflow is listed for AFB0912VH?

The workbook lists a maximum airflow of 115.26 m3/h. This is not the airflow at every system resistance; use the applicable pressure-flow curve to identify the installed operating point.

What installation space is required for AFB0912VH?

The workbook lists 92 x 92 x 25 mm. Confirm overall depth, hole pattern, connector clearance and guard or inlet-ring dimensions in the exact mechanical drawing.

Can AFB0912VH reduce total ownership cost?

The provided parameters do not prove a cost saving. Compare purchase price, power at the real operating point, service access, expected life and downtime risk for the complete cooling system.

Can AFB0912VH directly replace another fan?

A matching outline alone does not prove compatibility. Check 12VDC, mounting dimensions, connector, pinout, airflow direction, control signals and the required pressure-flow point.

What should be checked if AFB0912VH fails to start?

Isolate power first. Verify the approved supply, connector, polarity or phase, control-enable input and any obstruction; follow the exact specification and do not bypass protection circuits.
