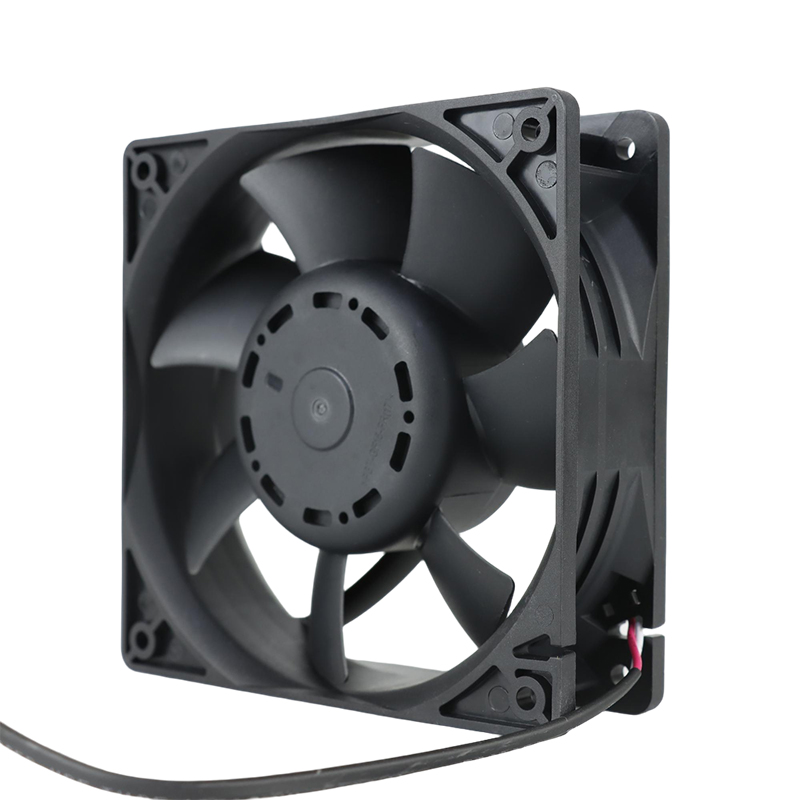

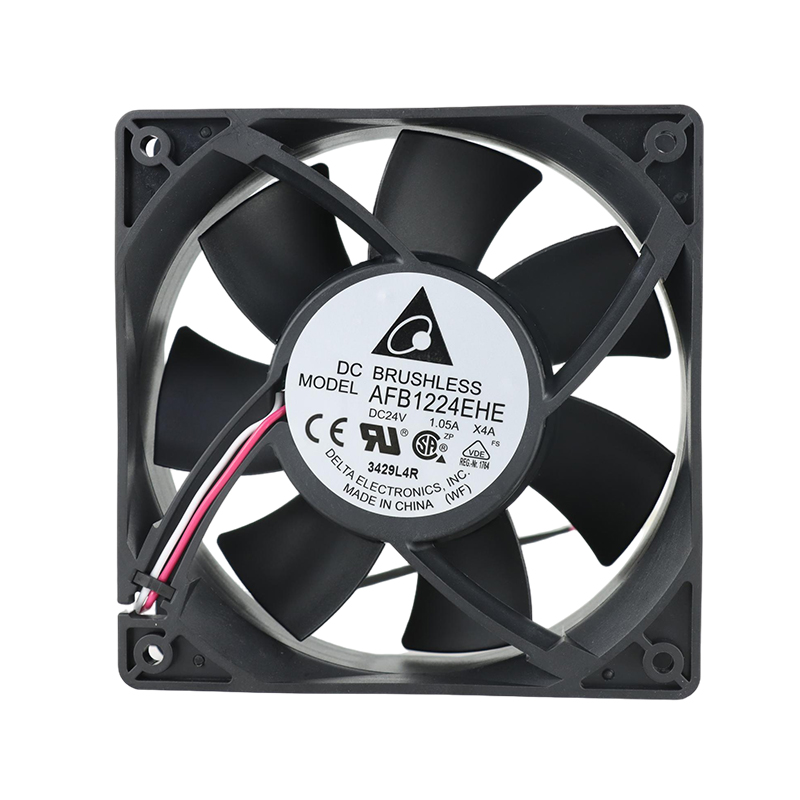

AFB1224EHE Delta Blower Fan

Brand :: Delta

Model:: AFB1224EHE | Delta Electronics 24VDC 20.4W Axial Fan for Server and Power Supply Cooling

Type:: Blower Fans

Industry:: Data Center Cooling

Description:: AFB1224EHE offers a 4600 rpm axial fan design for server and power-supply cooling on 24VDC. The supplied frame dimensions are 119 x 119 x 38 mm, with 361 m3/h maximum airflow and 20.4 W input listed.

Datasheet:: AFB1224EHE | Delta Electronics 24VDC 20.4W Axial Fan for Server and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	11911938
Max.Air Flow(m³/h)	361
Input Power(W)	20.4
Speed(rpm)	4600
Noise(db)	58.5

Product Features

DC Equipment Cooling

In power-supply equipment, Delta AFB1224EHE supplies the forced-air element of the cooling system. As a brushless DC axial fan, it is intended for integration into a defined mechanical and electrical assembly.

The listed 20.4 W input is relevant to supply sizing and the system energy budget; actual consumption depends on the operating duty. The axial layout moves air along the fan axis, supporting a direct ventilation route through the equipment opening. The mounting arrangement and duct transitions should preserve the intended air path so cooling is not lost to leakage or recirculation.

Equipment manufacturers and maintenance teams should match the complete part number and installation limits for reliable operation across the service cycle.

Application Industry

Server & Storage

Delta AFB1224EHE serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

For power-supply equipment, Delta AFB1224EHE provides equipment cooling around power-conversion components. Managing electrical conversion losses helps maintain dependable power delivery.

Telecommunications

In telecommunications equipment, air movement helps handle continuous communication duty. Delta AFB1224EHE supports cooling around densely arranged electronic assemblies, contributing to service continuity.

Industrial Controls

Delta AFB1224EHE supports cooling in industrial control equipment. Air circulation around controllers and electronic modules helps manage heat accumulated within enclosures, supporting stable automation operation.

Frequently Asked Questions

What equipment is AFB1224EHE intended to cool?

AFB1224EHE is listed for Server and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

What installation space is required for AFB1224EHE?

The workbook lists 119 x 119 x 38 mm. Confirm overall depth, hole pattern, connector clearance and guard or inlet-ring dimensions in the exact mechanical drawing.

Can AFB1224EHE directly replace another fan?

A matching outline alone does not prove compatibility. Check 24VDC, mounting dimensions, connector, pinout, airflow direction, control signals and the required pressure-flow point.

What power figure is listed for AFB1224EHE?

20.4 W is shown in the filter data. Check whether the corresponding datasheet defines it as rated, free-air or maximum-load input before sizing the power source.

Is stock and lead time stable for AFB1224EHE?

In Stock is shown in the workbook, but this is not a delivery guarantee. Confirm the complete part number, quantity, current inventory and committed lead time when ordering.
