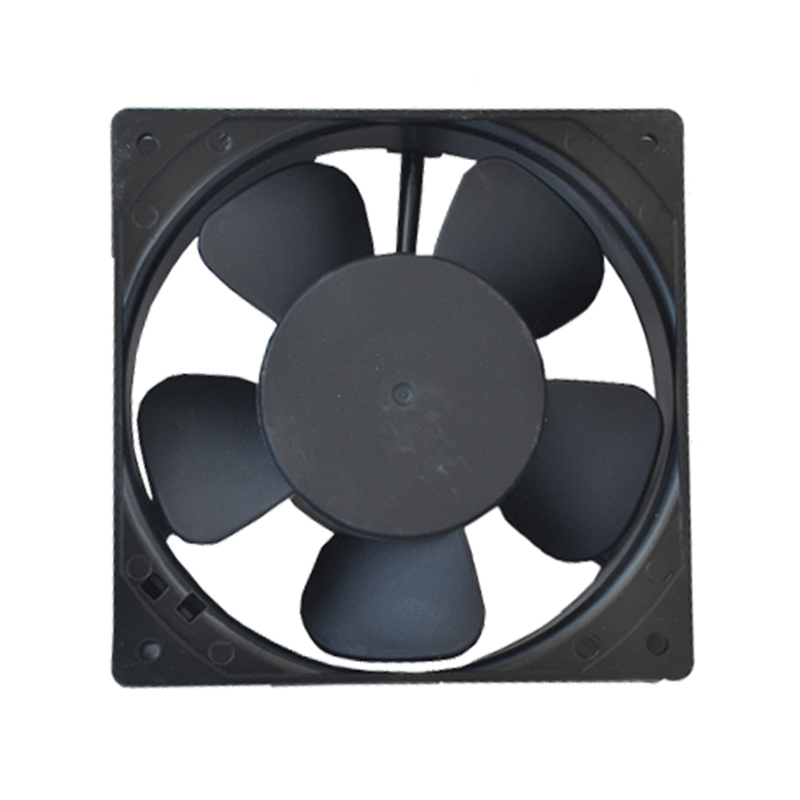

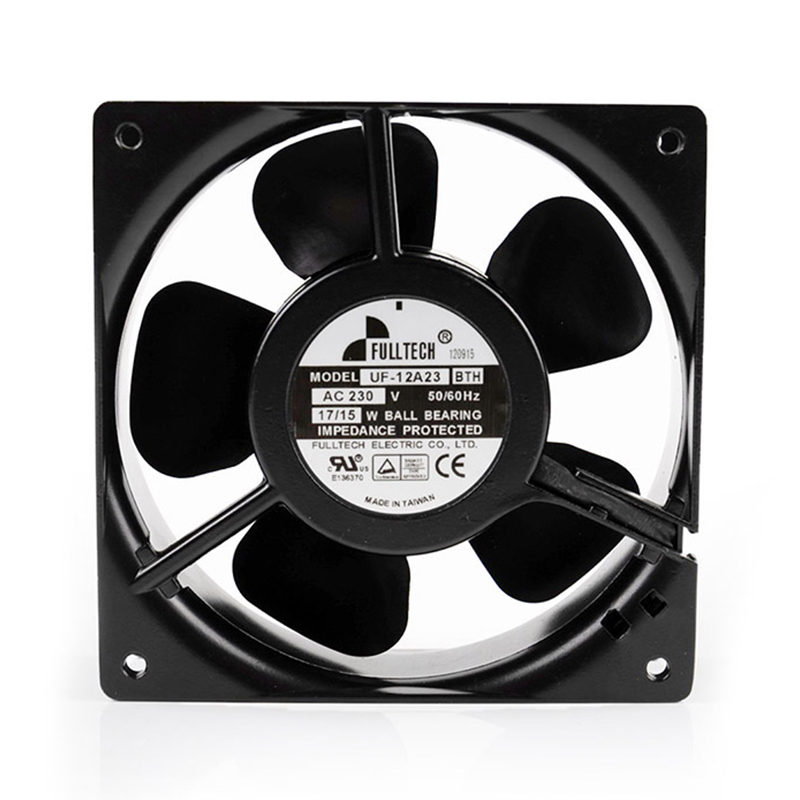

UF-12A23BTH FULLTECH Axial Fan

Brand :: FULLTECH

Model:: UF-12A23BTH | Fulltech 230VAC 17W AC Axial Fan for Control Cabinet and Power Supply Cooling

Type:: Axial Fans

Industry:: Automation

Description:: UF-12A23BTH is a 120 × 120 × 38 mm AC axial fan rated for 230 VAC and applied in industrial cabinets and power supplies. Ball-bearing construction is the central durability detail, paired with terminal connection and motor protection. Rated data: 17 W input, up to 180 m³/h, 3100 rpm, 46 dB.

Datasheet:: UF-12A23BTH | Fulltech 230VAC 17W AC Axial Fan for Control Cabinet and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	12012038
Max.Air Flow(m³/h)	180
Input Power(W)	17
Speed(rpm)	3100
Noise(db)	46

Product Features

Reliable AC Cooling

Designed for control cabinets, Fulltech UF-12A23BTH provides AC axial fan airflow in a compact equipment-ready format. It helps prevent local hot spots during continuous operation.

With a listed maximum airflow of 180 m3/h, the fan can move useful cooling air through the equipment. Final performance depends on the pressure loss of the complete assembly. Ball-bearing construction supports rotational stability and a long-life fan design; the series guidance states more than 40,000 hours at 40°C under its defined conditions.

For design-in or replacement purchasing, UF-12A23BTH offers a model-specific industrial cooling option. Verify wiring, airflow direction and operating conditions against the exact datasheet.

Application Industry

Industrial Electronics

Fulltech UF-12A23BTH is used in industrial electronic equipment, moving air around electronic assemblies to address continuous component heat. The fan gives OEM equipment a planned airflow route, supports stable equipment operation and helps reduce localized heat.

Control Cabinets

Fulltech UF-12A23BTH is used in control cabinets, moving air around drives and controllers to address heat trapped inside the enclosure. The fan gives OEM equipment a planned airflow route, supports reliable control-system duty and helps reduce localized heat.

Power Supplies

For power supplies, Fulltech UF-12A23BTH helps direct air across power-conversion components. Managing conversion losses is important to dependable power delivery, so the fan supports continuous heat removal and a defined circulation route for equipment manufacturers and service buyers.

Industrial Instruments

Fulltech UF-12A23BTH is used in industrial instruments, moving air around sensitive internal electronics to address localized thermal buildup. The fan gives OEM equipment a planned airflow route, supports measurement and control stability and helps reduce localized heat.

Frequently Asked Questions

What protection features are documented for UF-12A23BTH?

Thermal or impedance protection is documented for this model. No additional protection or certification should be assumed beyond the supplied documentation.

What maintenance is recommended for UF-12A23BTH?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Disconnect power before cleaning or service.

Which performance figures should buyers verify for UF-12A23BTH?

Review rated voltage, size, input power, 180 m³/h maximum airflow, and 3100 rpm against the actual duty point.

What standards information is available for UF-12A23BTH?

The supplied reference documents AC 1,500 V dielectric withstand for applicable AC models. Confirm any project-specific certification directly from the datasheet or supplier.

Why select UF-12A23BTH instead of a general-purpose fan?

This AC axial fan combines the listed 230 VAC supply and 180 m³/h maximum airflow at 3100 rpm with model-specific construction documented by Fulltech.

What rated voltage is required by UF-12A23BTH?

The documented rating is 230 VAC. Verify mains frequency, wiring, and protective devices before commissioning.
