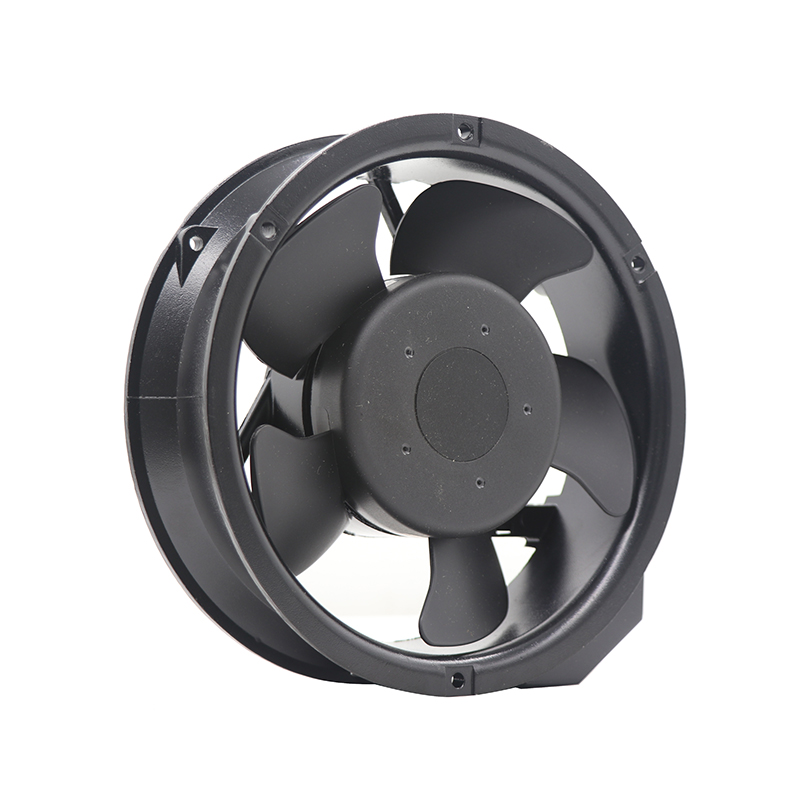

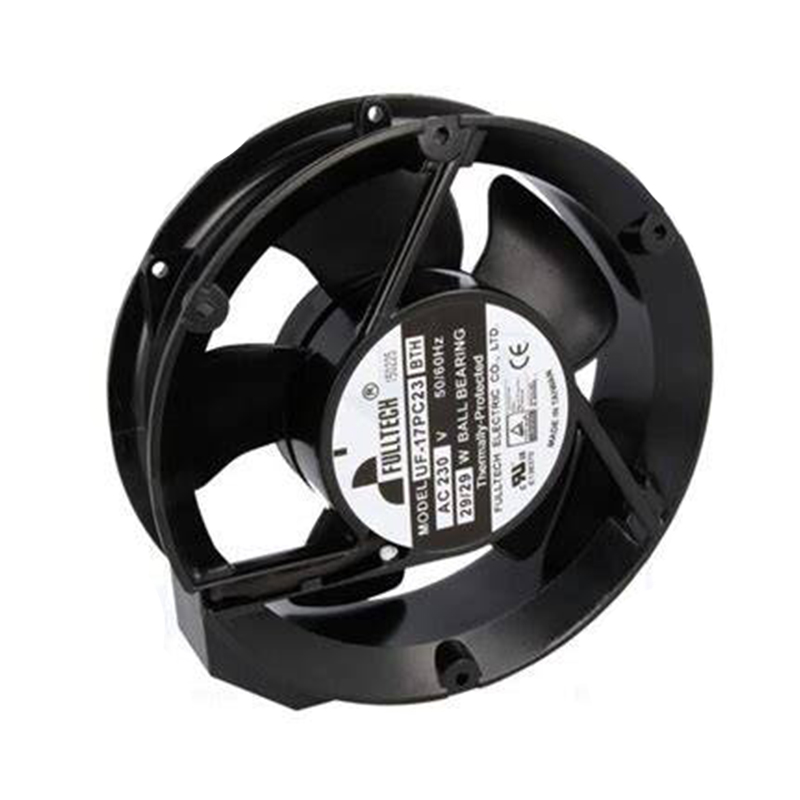

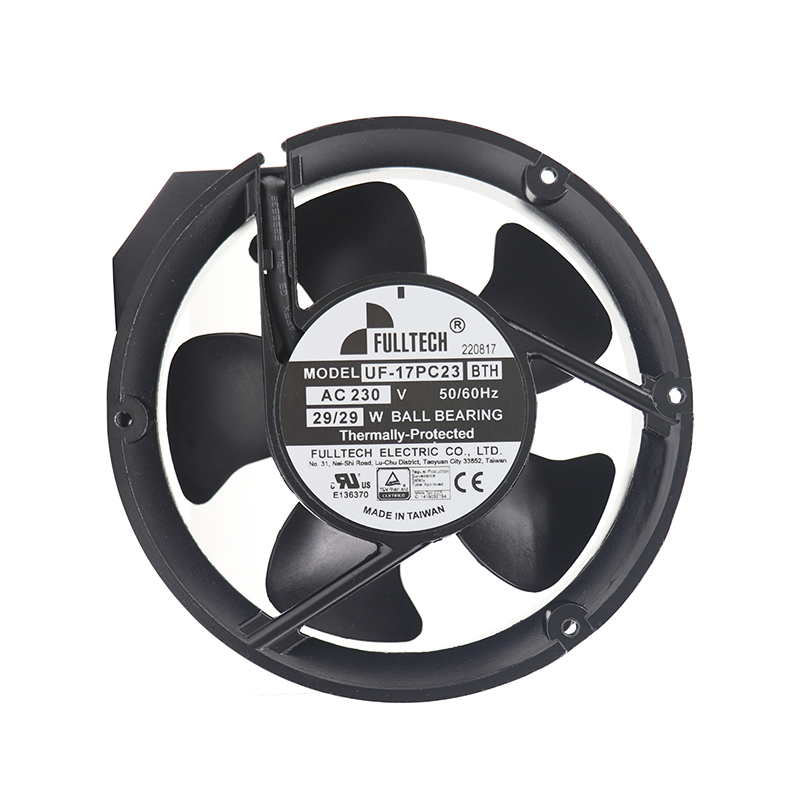

UF-17PC23BTH FULLTECH Axial Fan

Brand :: FULLTECH

Model:: UF-17PC23BTH | Fulltech 230VAC 29W AC Axial Fan for HVAC and Industrial Equipment Cooling

Type:: Axial Fans

Industry:: HVAC & Ventilation

Description:: A Ø172 × 51 mm body, 230 VAC rating, and AC axial fan configuration define Fulltech UF-17PC23BTH for cooling in HVAC, refrigeration, heat exchangers, and industrial cooling. Motor protection is a key selection detail, supported by a die-cast frame, ball bearings, and terminal connection. Rated data: 29 W input, up to 384 m³/h, 3400 rpm, 55 dB.

Datasheet:: UF-17PC23BTH | Fulltech 230VAC 29W AC Axial Fan for HVAC and Industrial Equipment Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	172φ*51
Max.Air Flow(m³/h)	384
Input Power(W)	29
Speed(rpm)	3400
Noise(db)	55

Product Features

Reliable AC Cooling

For HVAC and refrigeration equipment, the Fulltech UF-17PC23BTH serves as an AC axial fan. Its airflow supports temperature control in equipment that must remain stable through repeated operating cycles.

With a listed maximum airflow of 384 m3/h, the fan can move useful cooling air through the equipment. Final performance depends on the pressure loss of the complete assembly. The terminal connection distinguishes the installation interface, helping OEM teams align wiring access with cabinet assembly and service requirements.

This model is appropriate for B2B buyers who need repeatable equipment cooling. Retain the full UF-17PC23BTH code and check the electrical and mechanical interface before ordering.

Application Industry

HVAC & Refrigeration

Fulltech UF-17PC23BTH is used in HVAC and refrigeration equipment, moving air around heat-exchange sections to address recurring heating and cooling loads. The fan gives OEM equipment a planned airflow route, supports stable system operation and helps reduce localized heat.

Heat Exchangers

Fulltech UF-17PC23BTH is used in heat exchangers, moving air around coil and exchanger surfaces to address thermal energy transferred through the assembly. The fan gives OEM equipment a planned airflow route, supports effective heat rejection and helps reduce localized heat.

Industrial Ventilation

Fulltech UF-17PC23BTH is used in industrial ventilation systems, moving air around equipment air passages to address continuous ventilation demand. The fan gives OEM equipment a planned airflow route, supports controlled air circulation and helps reduce localized heat.

Frequently Asked Questions

What installation checks apply to UF-17PC23BTH?

Keep inlet and outlet clear, secure the frame without distortion, follow the documented connection method, and verify voltage before energizing.

How can UF-17PC23BTH help manage operating cost?

Use its listed 384 m³/h maximum airflow at 3400 rpm to avoid oversizing and compare power input with the required duty point. System-level savings depend on airflow resistance and run time.

How does noise affect selection of UF-17PC23BTH?

The listed noise value is 55 dB. Compare it at the intended duty point and installation distance because enclosure acoustics can change the result.

What connection style is documented for UF-17PC23BTH?

A terminal connection is specified. Follow the matching wiring diagram and isolate power before installation or maintenance.

What equipment is UF-17PC23BTH intended to cool?

It is documented for HVAC, refrigeration, heat exchangers, and industrial cooling. Confirm the Ø172 × 51 mm envelope and airflow path against the host equipment.
