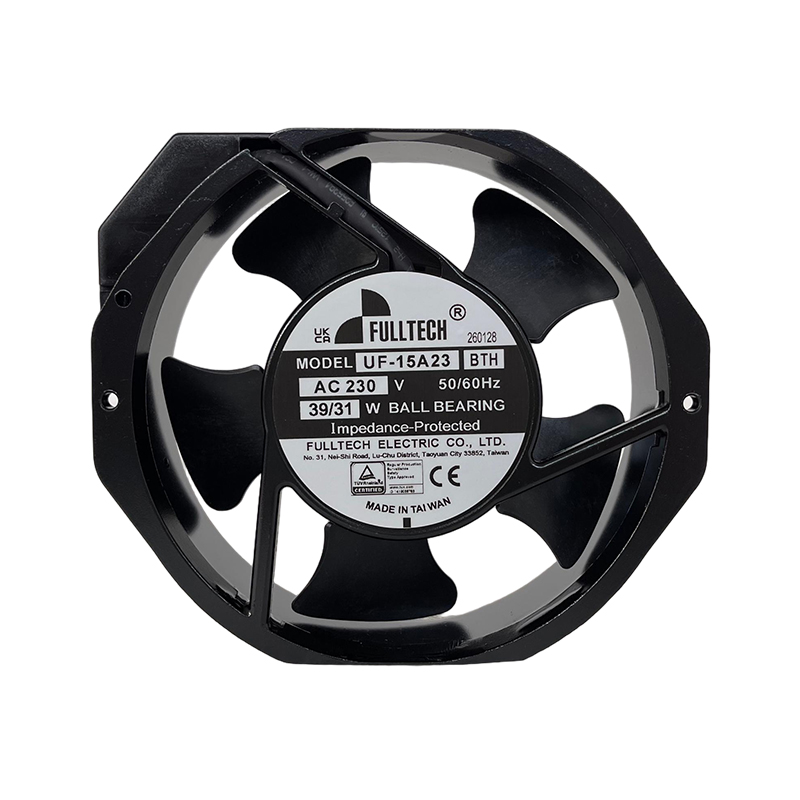

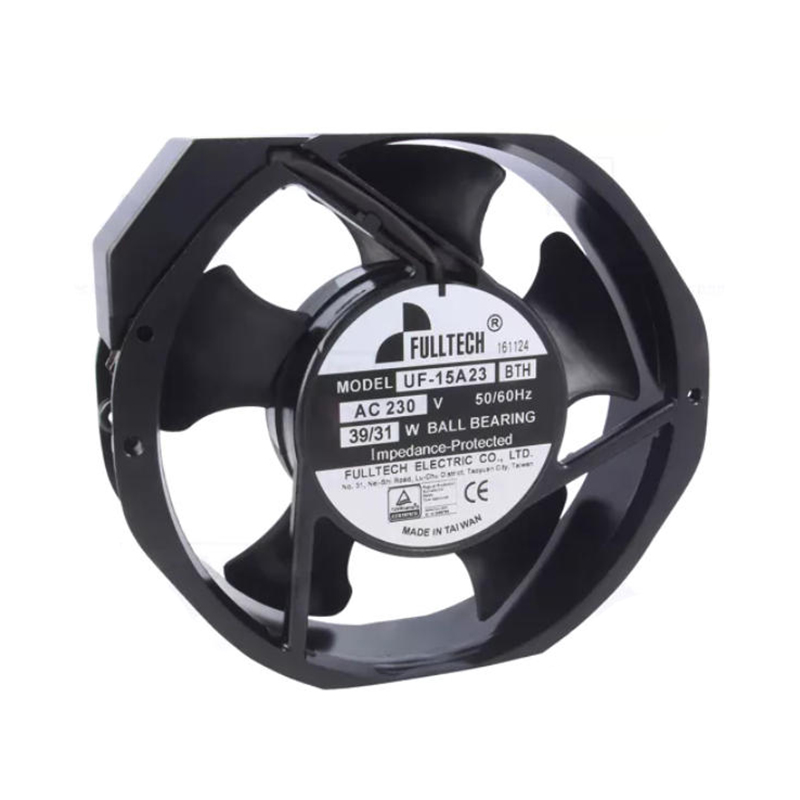

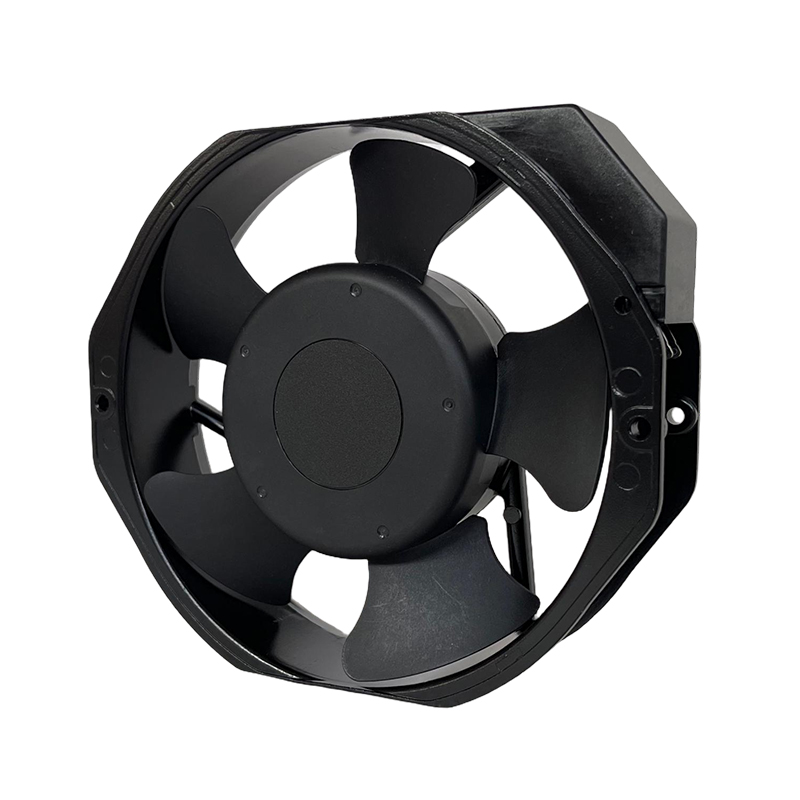

UF-15A23BTH FULLTECH Axial Fan

Brand :: FULLTECH

Model:: UF-15A23BTH | Fulltech 230VAC 31W AC Axial Fan for Control Cabinet and Power Supply Cooling

Type:: Axial Fans

Industry:: Automation

Description:: In industrial cabinets and power supplies, UF-15A23BTH supplies airflow through a 150 × 172 × 38 mm, 230 VAC AC axial fan configuration. Motor protection is a key selection detail, supported by a die-cast frame, ball bearings, and terminal connection. Rated data: 31 W input, up to 337 m³/h, 3200 rpm, 55 dB.

Datasheet:: UF-15A23BTH | Fulltech 230VAC 31W AC Axial Fan for Control Cabinet and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	17215038
Max.Air Flow(m³/h)	337
Input Power(W)	31
Speed(rpm)	3200
Noise(db)	55

Product Features

Reliable AC Cooling

The UF-15A23BTH from Fulltech is an AC axial fan for control cabinets. Equipment builders can integrate it where dependable air exchange is needed around thermally loaded parts.

The 337 m3/h maximum airflow supports active heat removal. Designers should compare the fan curve with the finished air path rather than select from free-air delivery alone. The aluminum die-cast frame provides rigid motor support, while the axial impeller maintains a direct equipment airflow path. Rigid mounting and an unobstructed air path help control vibration, airflow loss and the acoustic result of the assembled equipment.

This model is appropriate for B2B buyers who need repeatable equipment cooling. Retain the full UF-15A23BTH code and check the electrical and mechanical interface before ordering.

Application Industry

Industrial Electronics

Fulltech UF-15A23BTH is used in industrial electronic equipment, moving air around electronic assemblies to address continuous component heat. The fan gives OEM equipment a planned airflow route, supports stable equipment operation and helps reduce localized heat.

Control Cabinets

Fulltech UF-15A23BTH is used in control cabinets, moving air around drives and controllers to address heat trapped inside the enclosure. The fan gives OEM equipment a planned airflow route, supports reliable control-system duty and helps reduce localized heat.

Power Supplies

For power supplies, Fulltech UF-15A23BTH helps direct air across power-conversion components. Managing conversion losses is important to dependable power delivery, so the fan supports continuous heat removal and a defined circulation route for equipment manufacturers and service buyers.

Industrial Instruments

Fulltech UF-15A23BTH is used in industrial instruments, moving air around sensitive internal electronics to address localized thermal buildup. The fan gives OEM equipment a planned airflow route, supports measurement and control stability and helps reduce localized heat.

Frequently Asked Questions

How should UF-15A23BTH be matched to an enclosure?

Check the 150 × 172 × 38 mm dimensions, 337 m³/h maximum airflow at 3200 rpm, available mounting space, system resistance, and required ventilation duty.

Is UF-15A23BTH suitable for high-reliability thermal management?

Its ball-bearing construction and documented motor protection support industrial cooling use. Reliability still depends on correct sizing, clean airflow, and operation within ratings.

What should be checked if UF-15A23BTH stops or airflow drops?

Confirm the 230 VAC supply, wiring, obstructions, impeller freedom, and protection status. Replace or service only after isolating power.

Does UF-15A23BTH use a ball-bearing design?

Yes. Ball bearings are listed in the supplied model reference; installation temperature and loading still influence service life.

How should procurement confirm availability for UF-15A23BTH?

Stock and lead time can change. Confirm the exact model suffix, quantity, and required delivery date with the supplier before ordering.

Does UF-15A23BTH support speed control?

Speed-control capability is not stated in the supplied reference. Use the rated supply and confirm any controller with the datasheet or supplier before installation.

Related Products

UF-17PC23BTH | Fulltech 230VAC 29W AC Axial Fan for HVAC and Industrial Equipment Cooling

A Ø172 × 51 mm body, 230 VAC rating, and AC axial fan configuration define Fulltech UF-17PC23BTH for cooling in HVAC, refrigeration, heat exchangers, and industrial cooling. Motor protection is a key selection detail, supported by a die-cast frame, ball bearings, and terminal connection. Rated data: 29 W input, up to 384 m³/h, 3400 rpm, 55 dB.

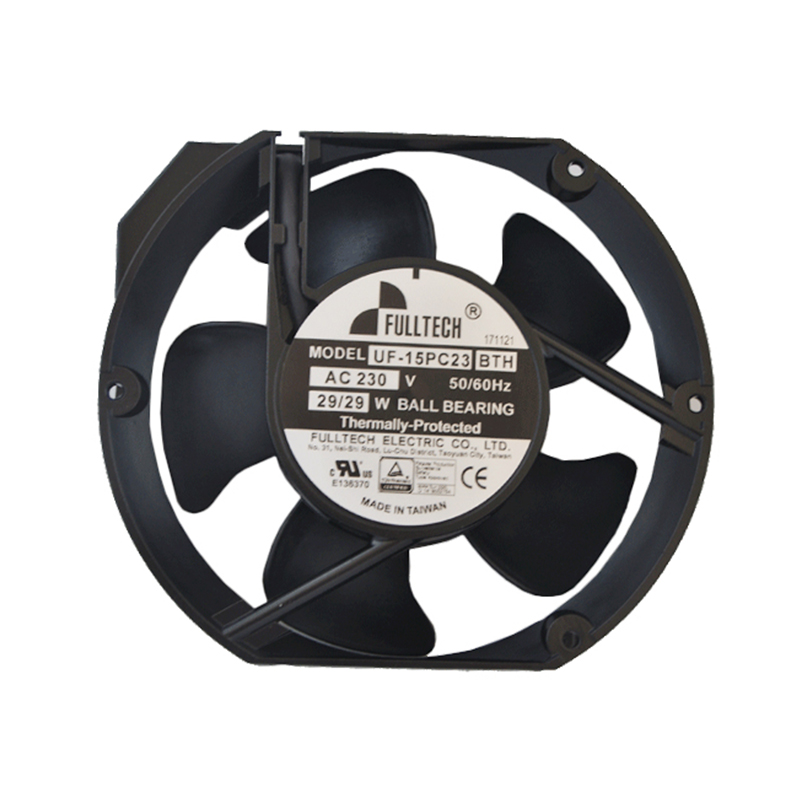

UF-15PC23BTH | Fulltech 230VAC 29W AC Axial Fan for HVAC and Industrial Equipment Cooling

Aimed at HVAC, refrigeration, heat exchangers, and industrial cooling, the Fulltech UF-15PC23BTH uses a 230 VAC AC axial fan architecture within 150 × 172 × 51 mm. Terminal connection distinguishes this version, alongside a die-cast frame, ball bearings, and protection. Rated data: 29 W input, up to 384 m³/h, 3400 rpm, 58 dB.

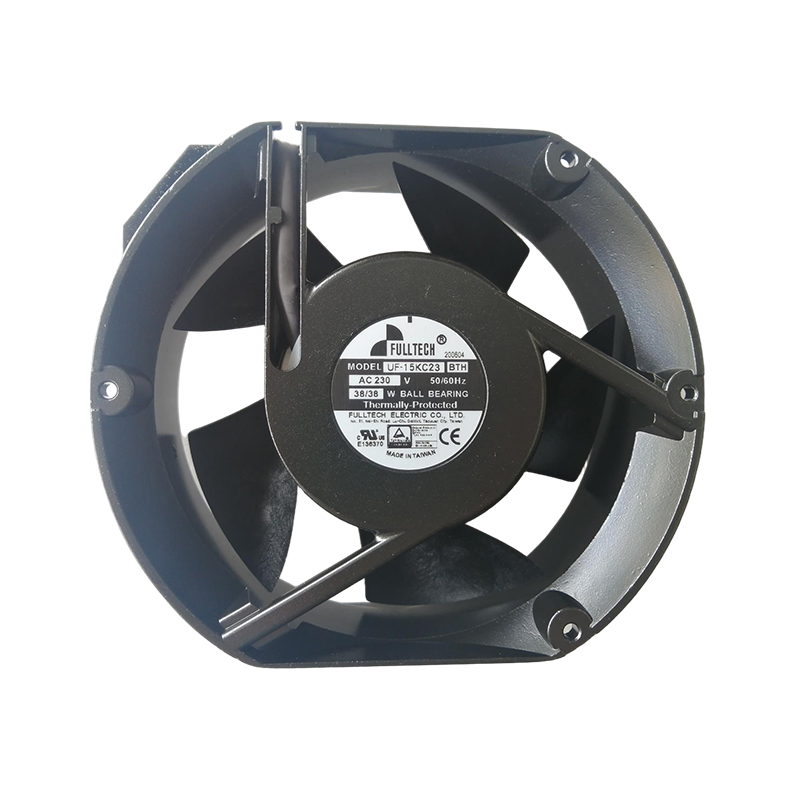

UF-15KC23BTH | Fulltech 230VAC 38W AC Axial Fan for HVAC and Industrial Equipment Cooling

Built around 150 × 172 × 55 mm, the UF-15KC23BTH uses a 230 VAC AC axial fan arrangement for HVAC and industrial cooling. Its die-cast aluminum frame is the representative structural feature; ball bearings and terminal connection are also documented. Rated data: 38 W input, up to 498 m³/h, 3400 rpm, 60 dB.

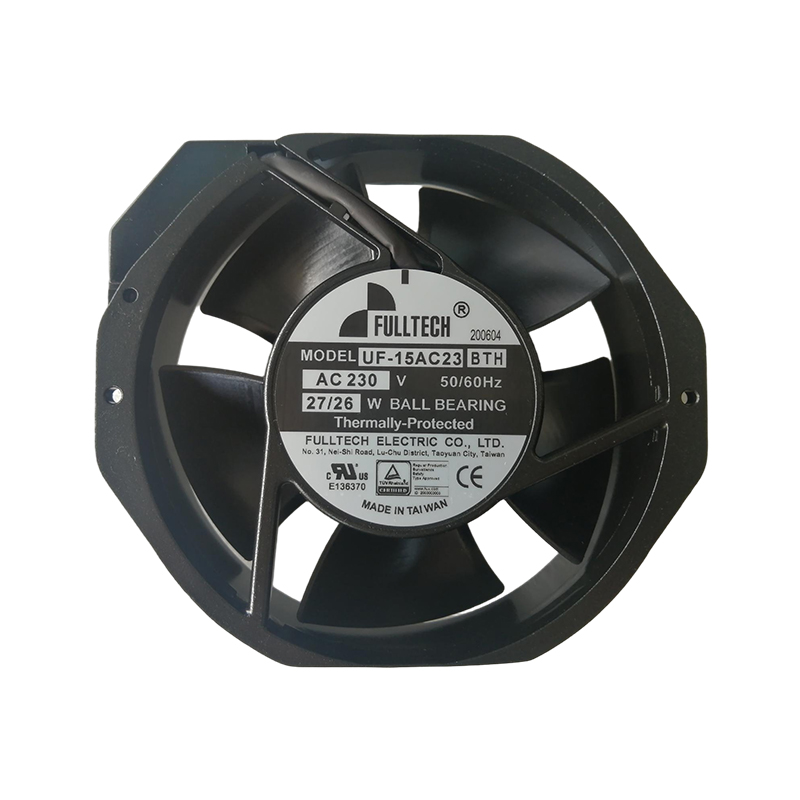

UF-15AC23BTH | Fulltech 230VAC 26W AC Axial Fan for HVAC and Industrial Equipment Cooling

Fulltech UF-15AC23BTH provides 230 VAC AC axial fan cooling for HVAC and industrial cooling from a 150 × 172 × 38 mm format. Motor protection is a key selection detail, supported by a die-cast frame, ball bearings, and terminal connection. Rated data: 26 W input, up to 360 m³/h, 3400 rpm, 58 dB.

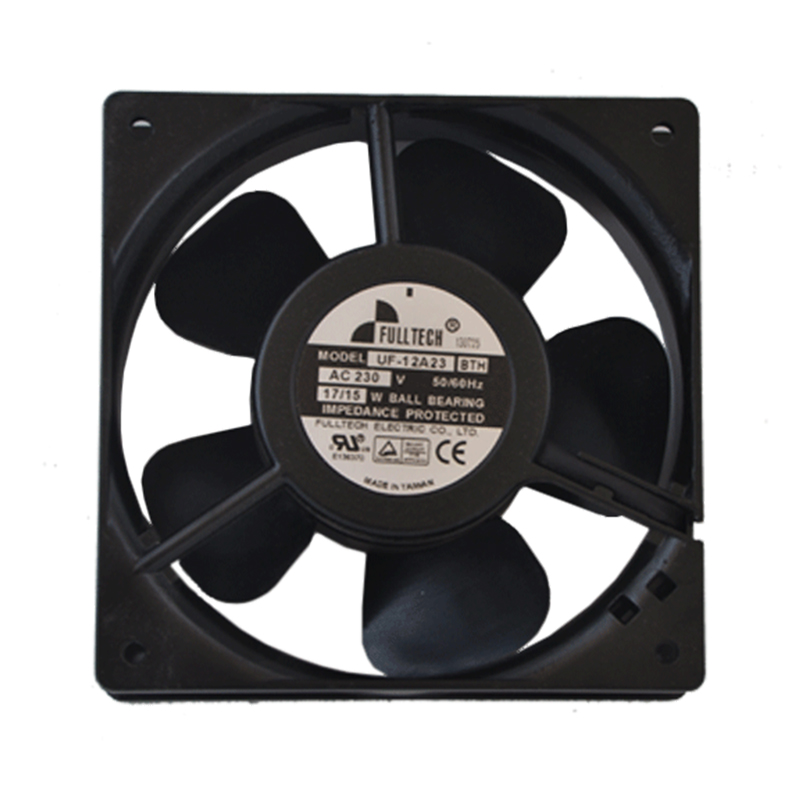

UF-12A23BTH | Fulltech 230VAC 17W AC Axial Fan for Control Cabinet and Power Supply Cooling
