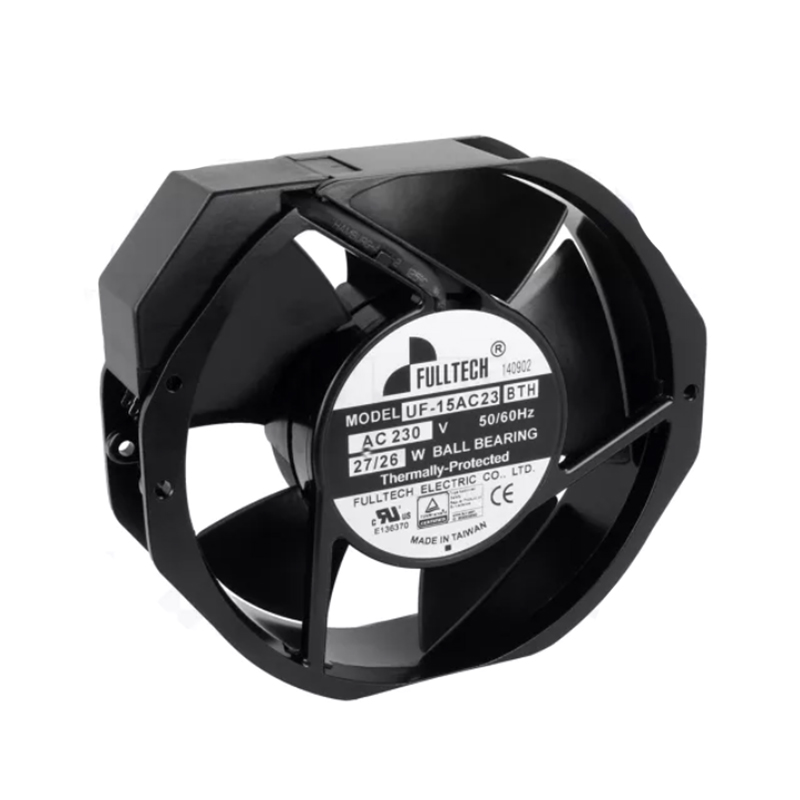

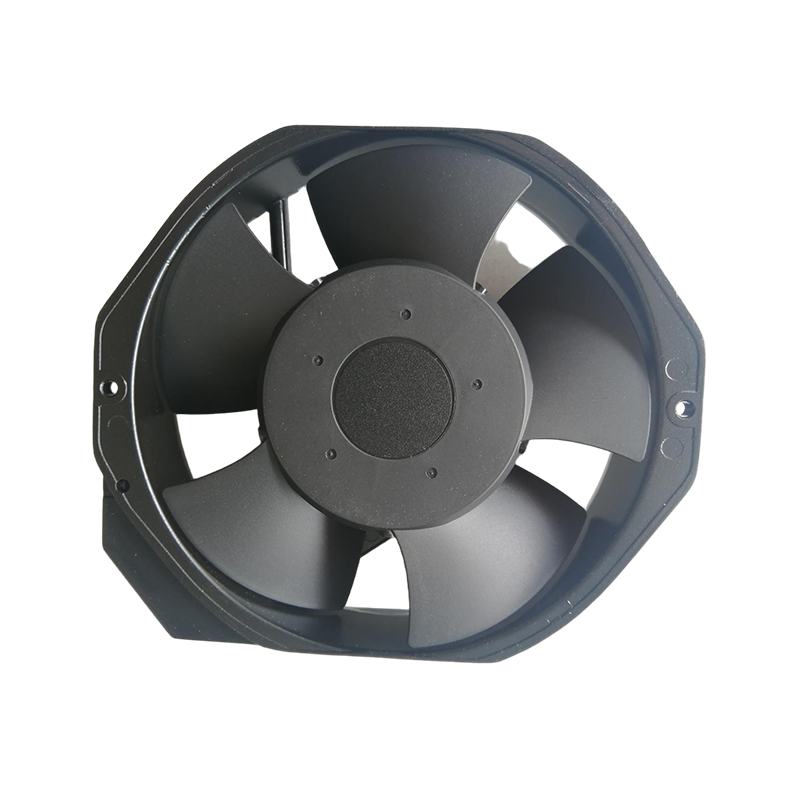

UF-15AC23BTH FULLTECH Axial Fan

Brand :: FULLTECH

Model:: UF-15AC23BTH | Fulltech 230VAC 26W AC Axial Fan for HVAC and Industrial Equipment Cooling

Type:: Axial Fans

Industry:: HVAC & Ventilation

Description:: Fulltech UF-15AC23BTH provides 230 VAC AC axial fan cooling for HVAC and industrial cooling from a 150 × 172 × 38 mm format. Motor protection is a key selection detail, supported by a die-cast frame, ball bearings, and terminal connection. Rated data: 26 W input, up to 360 m³/h, 3400 rpm, 58 dB.

Datasheet:: UF-15AC23BTH | Fulltech 230VAC 26W AC Axial Fan for HVAC and Industrial Equipment Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	17215038
Max.Air Flow(m³/h)	360
Input Power(W)	26
Speed(rpm)	3400
Noise(db)	58

Product Features

Reliable AC Cooling

The UF-15AC23BTH from Fulltech is an AC axial fan for heat exchangers. Equipment builders can integrate it where dependable air exchange is needed around thermally loaded parts.

Its rated airflow of up to 360 m3/h gives engineers a basis for sizing enclosure air exchange, while the installed duty point must account for filters, guards and internal resistance. Ball-bearing construction supports rotational stability and a long-life fan design; the series guidance states more than 40,000 hours at 40°C under its defined conditions.

For OEM production and service programs, UF-15AC23BTH provides a documented cooling component. Check supply, connector, airflow direction and environmental limits before release.

Application Industry

HVAC & Refrigeration

Fulltech UF-15AC23BTH is used in HVAC and refrigeration equipment, moving air around heat-exchange sections to address recurring heating and cooling loads. The fan gives OEM equipment a planned airflow route, supports stable system operation and helps reduce localized heat.

Heat Exchangers

Fulltech UF-15AC23BTH is used in heat exchangers, moving air around coil and exchanger surfaces to address thermal energy transferred through the assembly. The fan gives OEM equipment a planned airflow route, supports effective heat rejection and helps reduce localized heat.

Industrial Ventilation

Fulltech UF-15AC23BTH is used in industrial ventilation systems, moving air around equipment air passages to address continuous ventilation demand. The fan gives OEM equipment a planned airflow route, supports controlled air circulation and helps reduce localized heat.

Frequently Asked Questions

What maintenance is recommended for UF-15AC23BTH?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Disconnect power before cleaning or service.

Which performance figures should buyers verify for UF-15AC23BTH?

Review rated voltage, size, input power, 360 m³/h maximum airflow, and 3400 rpm against the actual duty point.

What standards information is available for UF-15AC23BTH?

The supplied reference documents AC 1,500 V dielectric withstand for applicable AC models. Confirm any project-specific certification directly from the datasheet or supplier.

Why select UF-15AC23BTH instead of a general-purpose fan?

This AC axial fan combines the listed 230 VAC supply and 360 m³/h maximum airflow at 3400 rpm with model-specific construction documented by Fulltech.

What rated voltage is required by UF-15AC23BTH?

The documented rating is 230 VAC. Verify mains frequency, wiring, and protective devices before commissioning.
