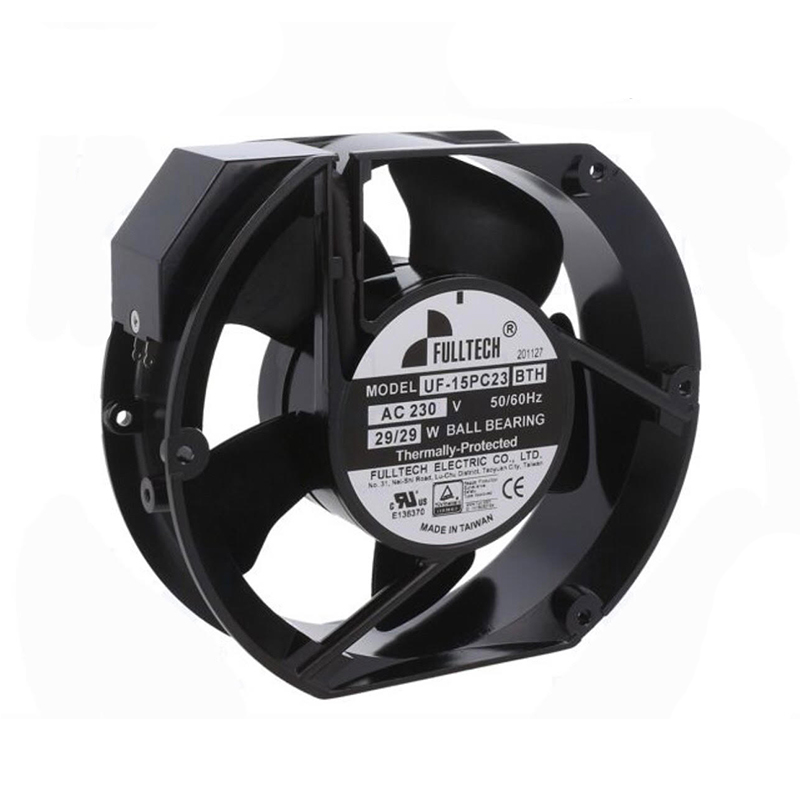

UF-15PC23BTH FULLTECH Axial Fan

Brand :: FULLTECH

Model:: UF-15PC23BTH | Fulltech 230VAC 29W AC Axial Fan for HVAC and Industrial Equipment Cooling

Type:: Axial Fans

Industry:: HVAC & Ventilation

Description:: Aimed at HVAC, refrigeration, heat exchangers, and industrial cooling, the Fulltech UF-15PC23BTH uses a 230 VAC AC axial fan architecture within 150 × 172 × 51 mm. Terminal connection distinguishes this version, alongside a die-cast frame, ball bearings, and protection. Rated data: 29 W input, up to 384 m³/h, 3400 rpm, 58 dB.

Datasheet:: UF-15PC23BTH | Fulltech 230VAC 29W AC Axial Fan for HVAC and Industrial Equipment Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	17215051
Max.Air Flow(m³/h)	384
Input Power(W)	29
Speed(rpm)	3400
Noise(db)	58

Product Features

Reliable AC Cooling

Designed for heat exchangers, Fulltech UF-15PC23BTH provides AC axial fan airflow in a compact equipment-ready format. It helps prevent local hot spots during continuous operation.

A listed air-delivery ceiling of 384 m3/h supports thermal planning for the target equipment. Clear inlet space and a defined outlet reduce avoidable flow loss. Ball-bearing construction supports rotational stability and a long-life fan design; the series guidance states more than 40,000 hours at 40°C under its defined conditions.

This model is appropriate for B2B buyers who need repeatable equipment cooling. Retain the full UF-15PC23BTH code and check the electrical and mechanical interface before ordering. This supports repeatable engineering review from prototype to production.

Application Industry

HVAC & Refrigeration

Fulltech UF-15PC23BTH is used in HVAC and refrigeration equipment, moving air around heat-exchange sections to address recurring heating and cooling loads. The fan gives OEM equipment a planned airflow route, supports stable system operation and helps reduce localized heat.

Heat Exchangers

Fulltech UF-15PC23BTH is used in heat exchangers, moving air around coil and exchanger surfaces to address thermal energy transferred through the assembly. The fan gives OEM equipment a planned airflow route, supports effective heat rejection and helps reduce localized heat.

Industrial Ventilation

Fulltech UF-15PC23BTH is used in industrial ventilation systems, moving air around equipment air passages to address continuous ventilation demand. The fan gives OEM equipment a planned airflow route, supports controlled air circulation and helps reduce localized heat.

Frequently Asked Questions

Which performance figures should buyers verify for UF-15PC23BTH?

Review rated voltage, size, input power, 384 m³/h maximum airflow, and 3400 rpm against the actual duty point.

What standards information is available for UF-15PC23BTH?

The supplied reference documents AC 1,500 V dielectric withstand for applicable AC models. Confirm any project-specific certification directly from the datasheet or supplier.

Why select UF-15PC23BTH instead of a general-purpose fan?

This AC axial fan combines the listed 230 VAC supply and 384 m³/h maximum airflow at 3400 rpm with model-specific construction documented by Fulltech.

What rated voltage is required by UF-15PC23BTH?

The documented rating is 230 VAC. Verify mains frequency, wiring, and protective devices before commissioning.

What protection features are documented for UF-15PC23BTH?

Thermal or impedance protection is documented for this model. No additional protection or certification should be assumed beyond the supplied documentation.

What maintenance is recommended for UF-15PC23BTH?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Disconnect power before cleaning or service.
