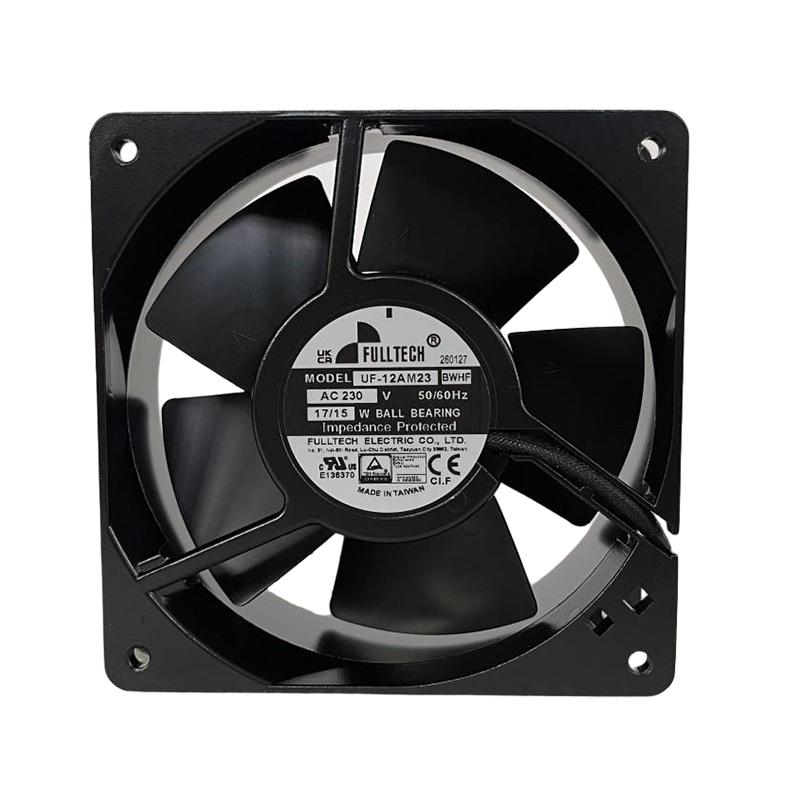

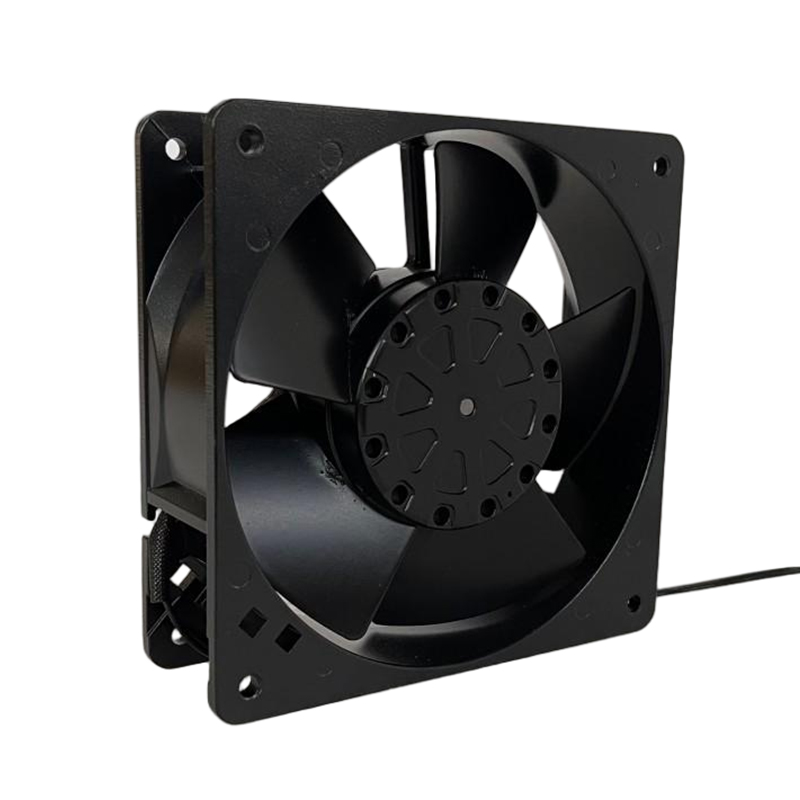

UF-12AM23BWHF FULLTECH Axial Fan

Brand :: FULLTECH

Model:: UF-12AM23BWHF | Fulltech 230VAC 15W AC Axial Fan for Control Cabinet and Power Supply Cooling

Type:: Axial Fans

Industry:: Automation

Description:: The 230 VAC UF-12AM23BWHF is a 120 × 120 × 38 mm AC axial fan specified for industrial cabinets and power supplies. A die-cast frame and ball bearings define the mechanical design, while lead-wire connection supports integration. Rated data: 15 W input, up to 175 m³/h, 3100 rpm, 46 dB.

Datasheet:: UF-12AM23BWHF | Fulltech 230VAC 15W AC Axial Fan for Control Cabinet and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	12012038
Max.Air Flow(m³/h)	175
Input Power(W)	15
Speed(rpm)	3100
Noise(db)	46

Product Features

Metal Impeller Duty

For industrial instruments, the Fulltech UF-12AM23BWHF serves as an AC axial fan. Its airflow supports temperature control in equipment that must remain stable through repeated operating cycles.

A listed air-delivery ceiling of 175 m3/h supports thermal planning for the target equipment. Clear inlet space and a defined outlet reduce avoidable flow loss. The aluminum die-cast frame provides rigid motor support, while a metal impeller and Class F insulation address higher-temperature duty.

Equipment builders can select UF-12AM23BWHF when its duty point and installation envelope match the system. Exact-model verification supports reliable operation and long service life. This supports repeatable engineering review from prototype to production.

Application Industry

Industrial Electronics

Fulltech UF-12AM23BWHF is used in industrial electronic equipment, moving air around electronic assemblies to address continuous component heat. The fan gives OEM equipment a planned airflow route, supports stable equipment operation and helps reduce localized heat.

Control Cabinets

Fulltech UF-12AM23BWHF supports control cabinets, where airflow across drives and controllers helps manage heat trapped inside the enclosure. The fan contributes to reliable control-system duty by moving heat away from critical areas and maintaining a planned ventilation path within the equipment.

Power Supplies

In power supplies, Fulltech UF-12AM23BWHF moves air around power-conversion components to address conversion losses. This industrial cooling fan helps equipment builders maintain dependable power delivery, reduce localized hot spots and establish dependable circulation through the intended air path.

Industrial Instruments

Fulltech UF-12AM23BWHF is used in industrial instruments, moving air around sensitive internal electronics to address localized thermal buildup. The fan gives OEM equipment a planned airflow route, supports measurement and control stability and helps reduce localized heat.

Frequently Asked Questions

Can UF-12AM23BWHF be used for continuous-duty cooling?

The reference specifies ball bearings and cites a general service-life basis above 40,000 hours at 40°C for this fan family. Actual life depends on temperature, loading, and maintenance.

What installation checks apply to UF-12AM23BWHF?

Keep inlet and outlet clear, secure the frame without distortion, follow the documented connection method, and verify voltage before energizing.

How can UF-12AM23BWHF help manage operating cost?

Use its listed 175 m³/h maximum airflow at 3100 rpm to avoid oversizing and compare power input with the required duty point. System-level savings depend on airflow resistance and run time.

How does noise affect selection of UF-12AM23BWHF?

The listed noise value is 46 dB. Compare it at the intended duty point and installation distance because enclosure acoustics can change the result.

What connection style is documented for UF-12AM23BWHF?

A lead-wire connection is specified. Follow the matching wiring diagram and isolate power before installation or maintenance.

What equipment is UF-12AM23BWHF intended to cool?

It is documented for control cabinets, power supplies, instruments, and compact industrial enclosures. Confirm the 120 × 120 × 38 mm envelope and airflow path against the host equipment.
