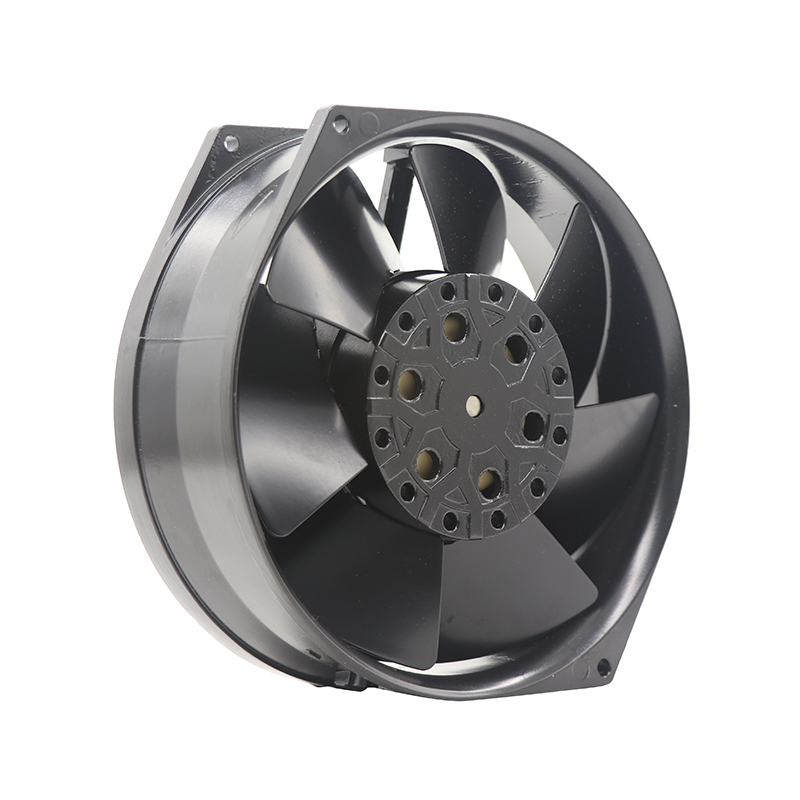

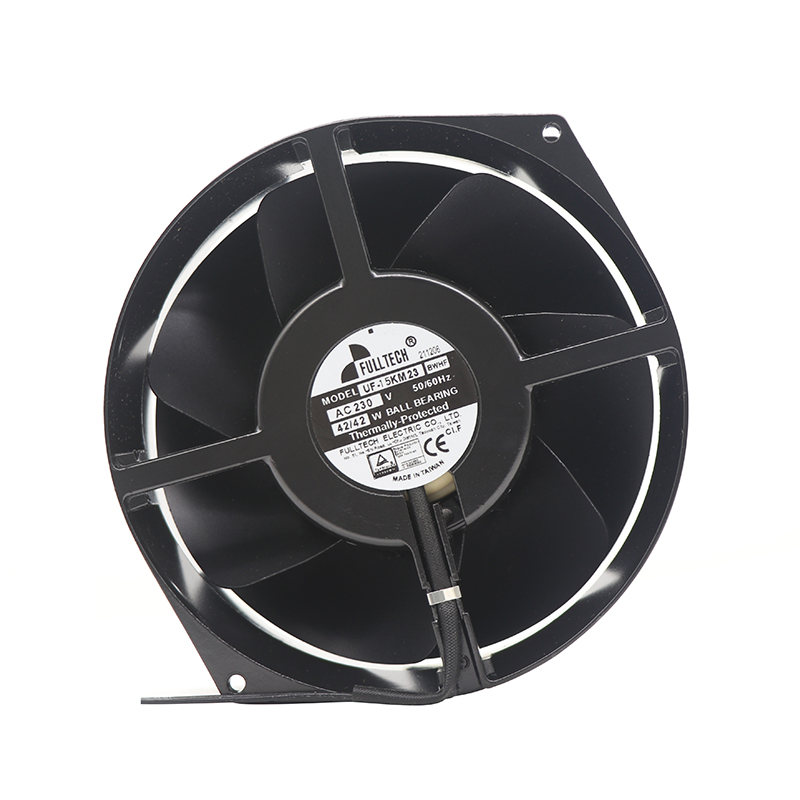

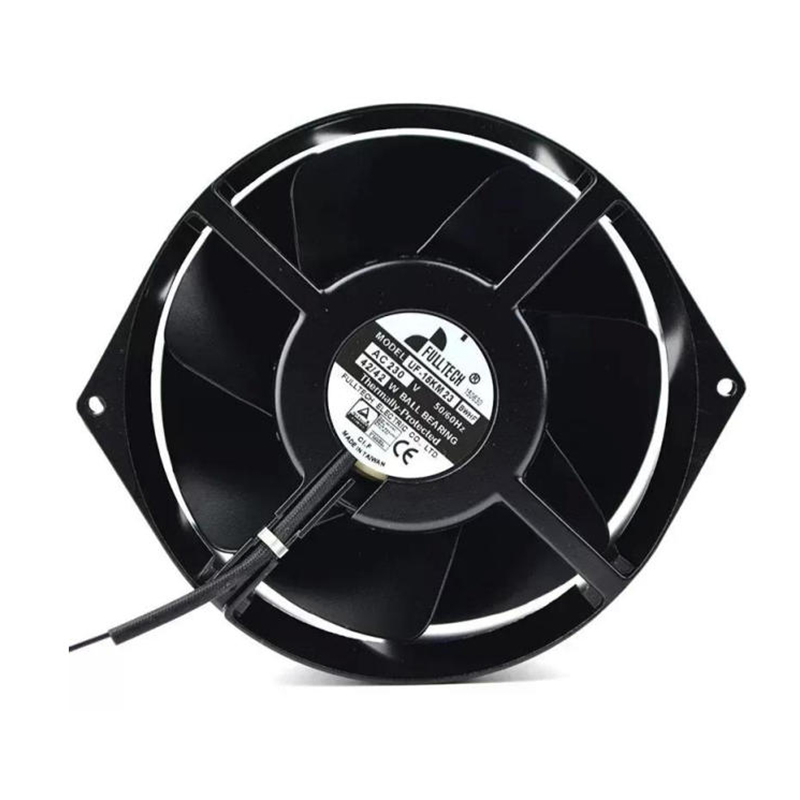

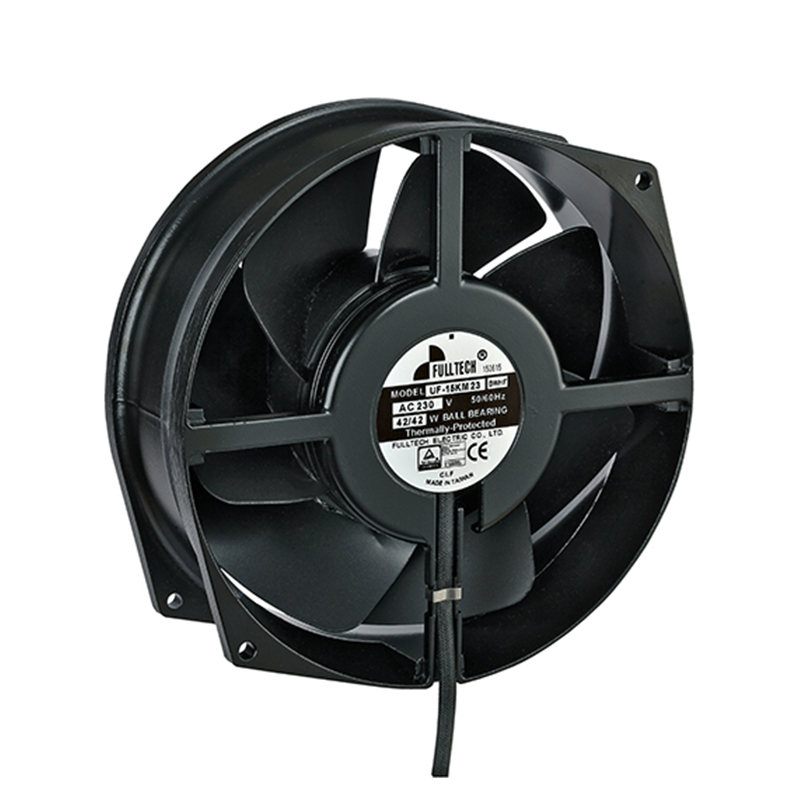

UF-15KM23BWHF FULLTECH Axial Fan

Brand :: FULLTECH

Model:: UF-15KM23BWHF | Fulltech 230VAC 42W AC Axial Fan for Control Cabinet and Power Supply Cooling

Type:: Axial Fans

Industry:: Automation

Description:: Fulltech UF-15KM23BWHF provides 230 VAC AC axial fan cooling for industrial cabinets and power supplies from a 150 × 172 × 55 mm format. Ball-bearing construction is the central durability detail, paired with lead-wire connection and motor protection. Rated data: 42 W input, up to 391 m³/h, 3250 rpm, 53 dB.

Datasheet:: UF-15KM23BWHF | Fulltech 230VAC 42W AC Axial Fan for Control Cabinet and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	17215055
Max.Air Flow(m³/h)	391
Input Power(W)	42
Speed(rpm)	3250
Noise(db)	53

Product Features

Metal Impeller Duty

Fulltech UF-15KM23BWHF supports power supplies with AC axial fan cooling. The design helps move warm air out of confined equipment spaces before heat affects nearby components.

A listed air-delivery ceiling of 391 m3/h supports thermal planning for the target equipment. Clear inlet space and a defined outlet reduce avoidable flow loss. The aluminum die-cast frame provides rigid motor support, while a metal impeller and Class F insulation address higher-temperature duty. The enclosure should guide air across the thermal load, because bypass flow can reduce cooling even when the fan operates normally.

This model is appropriate for B2B buyers who need repeatable equipment cooling. Retain the full UF-15KM23BWHF code and check the electrical and mechanical interface before ordering.

Application Industry

Industrial Electronics

Fulltech UF-15KM23BWHF is used in industrial electronic equipment, moving air around electronic assemblies to address continuous component heat. The fan gives OEM equipment a planned airflow route, supports stable equipment operation and helps reduce localized heat.

Control Cabinets

Fulltech UF-15KM23BWHF is used in control cabinets, moving air around drives and controllers to address heat trapped inside the enclosure. The fan gives OEM equipment a planned airflow route, supports reliable control-system duty and helps reduce localized heat.

Power Supplies

Fulltech UF-15KM23BWHF supports power supplies, where airflow across power-conversion components helps manage conversion losses. The fan contributes to dependable power delivery by moving heat away from critical areas and maintaining a planned ventilation path within the equipment.

Industrial Instruments

Fulltech UF-15KM23BWHF is used in industrial instruments, moving air around sensitive internal electronics to address localized thermal buildup. The fan gives OEM equipment a planned airflow route, supports measurement and control stability and helps reduce localized heat.

Frequently Asked Questions

Does UF-15KM23BWHF support speed control?

Speed-control capability is not stated in the supplied reference. Use the rated supply and confirm any controller with the datasheet or supplier before installation.

How should UF-15KM23BWHF be matched to an enclosure?

Check the 150 × 172 × 55 mm dimensions, 391 m³/h maximum airflow at 3250 rpm, available mounting space, system resistance, and required ventilation duty.

Is UF-15KM23BWHF suitable for high-reliability thermal management?

Its ball-bearing construction and documented motor protection support industrial cooling use. Reliability still depends on correct sizing, clean airflow, and operation within ratings.

What should be checked if UF-15KM23BWHF stops or airflow drops?

Confirm the 230 VAC supply, wiring, obstructions, impeller freedom, and protection status. Replace or service only after isolating power.

Does UF-15KM23BWHF use a ball-bearing design?

Yes. Ball bearings are listed in the supplied model reference; installation temperature and loading still influence service life.

Related Products

UF-15KMR23 BWHF | Fulltech 230VAC 45W AC Axial Fan for Control Cabinet and Power Supply Cooling

Built around 150 × 172 × 55 mm, the UF-15KMR23 BWHF uses a 230 VAC AC axial fan arrangement for industrial cabinets and power supplies. Lead-wire connection distinguishes this version, alongside a die-cast frame, ball bearings, and protection. Rated data: 45 W input, up to 433 m³/h, 3150 rpm, 61 dB.

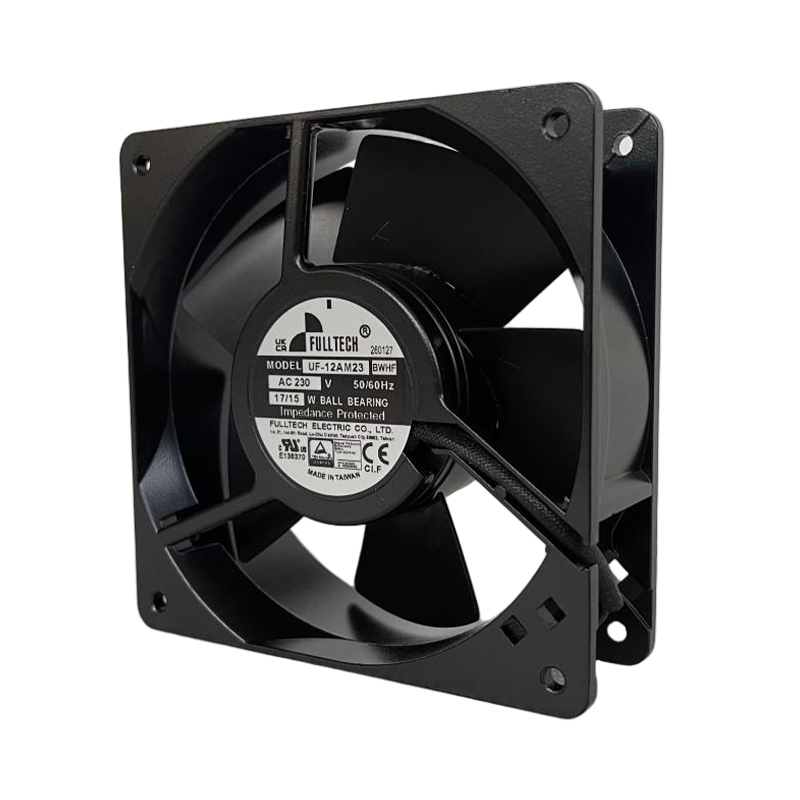

UF-12AM23BWHF | Fulltech 230VAC 15W AC Axial Fan for Control Cabinet and Power Supply Cooling
