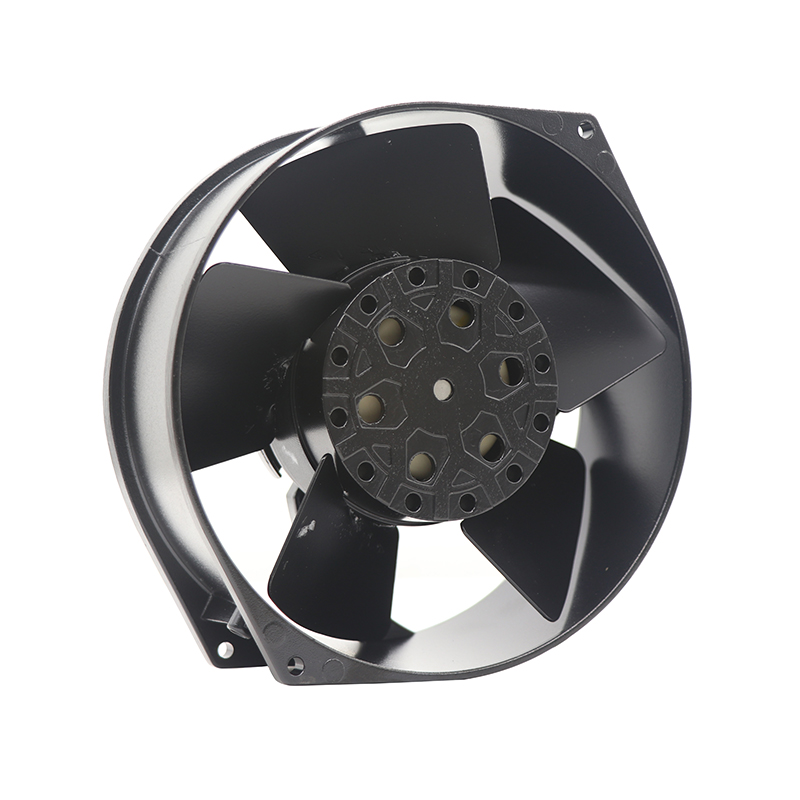

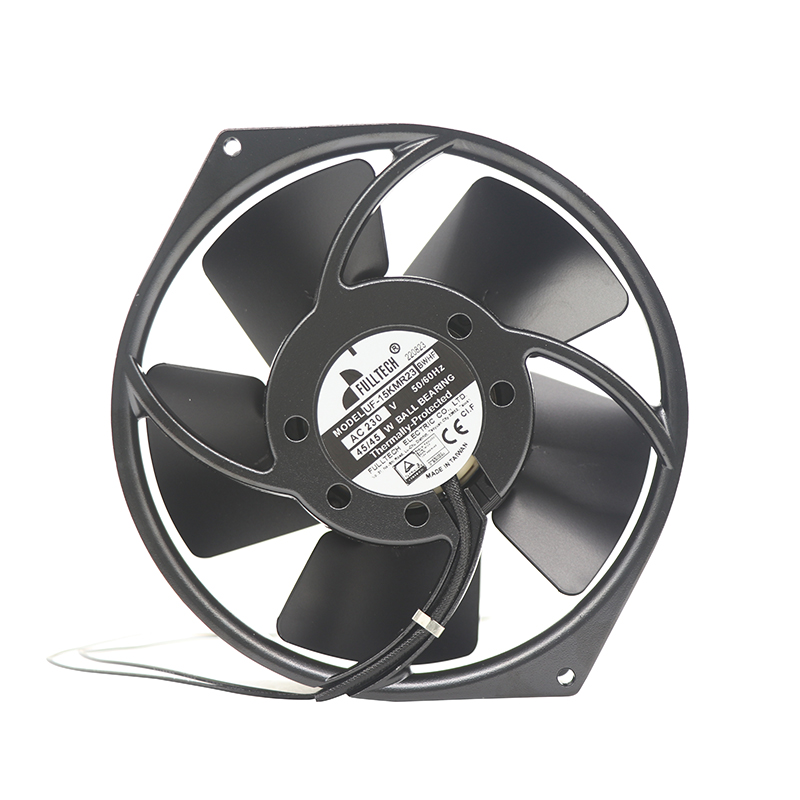

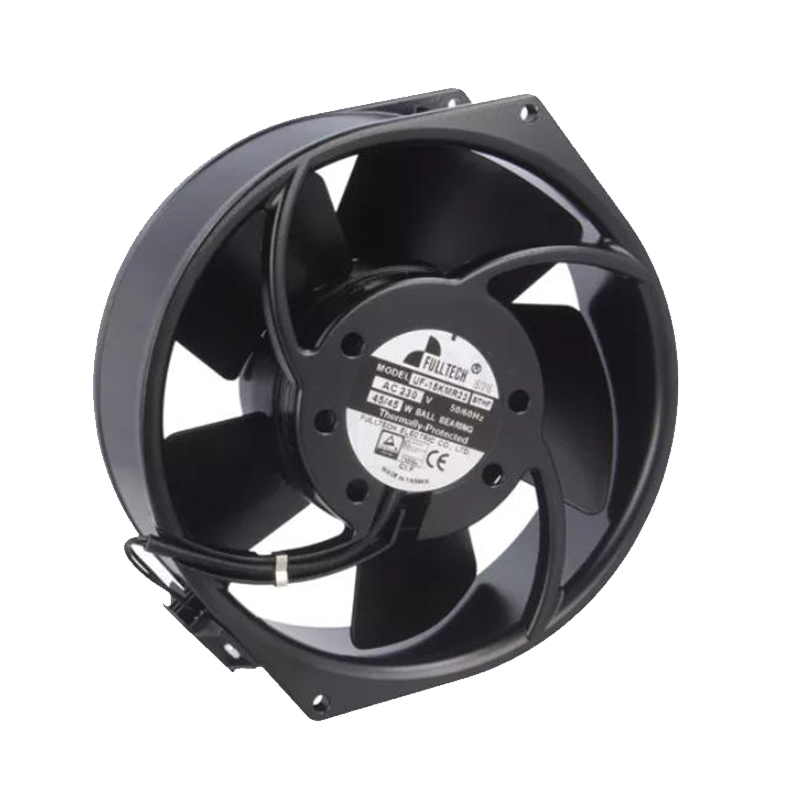

UF-15KMR23 BWHF FULLTECH Axial Fan

Brand :: FULLTECH

Model:: UF-15KMR23 BWHF | Fulltech 230VAC 45W AC Axial Fan for Control Cabinet and Power Supply Cooling

Type:: Axial Fans

Industry:: Automation

Description:: Built around 150 × 172 × 55 mm, the UF-15KMR23 BWHF uses a 230 VAC AC axial fan arrangement for industrial cabinets and power supplies. Lead-wire connection distinguishes this version, alongside a die-cast frame, ball bearings, and protection. Rated data: 45 W input, up to 433 m³/h, 3150 rpm, 61 dB.

Datasheet:: UF-15KMR23 BWHF | Fulltech 230VAC 45W AC Axial Fan for Control Cabinet and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	17215055
Max.Air Flow(m³/h)	433
Input Power(W)	45
Speed(rpm)	3150
Noise(db)	61

Product Features

Metal Impeller Duty

Fulltech UF-15KMR23 BWHF supports industrial instruments with AC axial fan cooling. The design helps move warm air out of confined equipment spaces before heat affects nearby components.

With a listed maximum airflow of 433 m3/h, the fan can move useful cooling air through the equipment. Final performance depends on the pressure loss of the complete assembly. Its reverse-airflow configuration supports layouts that require intake over the struts; airflow direction must be checked before replacement.

This model is appropriate for B2B buyers who need repeatable equipment cooling. Retain the full UF-15KMR23 BWHF code and check the electrical and mechanical interface before ordering. The final assembly should be tested at its expected thermal load.

Application Industry

Industrial Electronics

Fulltech UF-15KMR23 BWHF is used in industrial electronic equipment, moving air around electronic assemblies to address continuous component heat. The fan gives OEM equipment a planned airflow route, supports stable equipment operation and helps reduce localized heat.

Control Cabinets

Fulltech UF-15KMR23 BWHF supports control cabinets, where airflow across drives and controllers helps manage heat trapped inside the enclosure. The fan contributes to reliable control-system duty by moving heat away from critical areas and maintaining a planned ventilation path within the equipment.

Power Supplies

Fulltech UF-15KMR23 BWHF is used in power supplies, moving air around power-conversion components to address conversion losses. The fan gives OEM equipment a planned airflow route, supports dependable power delivery and helps reduce localized heat. It supports equipment cooling.

Industrial Instruments

Fulltech UF-15KMR23 BWHF is used in industrial instruments, moving air around sensitive internal electronics to address localized thermal buildup. The fan gives OEM equipment a planned airflow route, supports measurement and control stability and helps reduce localized heat.

Frequently Asked Questions

How can UF-15KMR23 BWHF help manage operating cost?

Use its listed 433 m³/h maximum airflow at 3150 rpm to avoid oversizing and compare power input with the required duty point. System-level savings depend on airflow resistance and run time.

How does noise affect selection of UF-15KMR23 BWHF?

The listed noise value is 61 dB. Compare it at the intended duty point and installation distance because enclosure acoustics can change the result.

What connection style is documented for UF-15KMR23 BWHF?

A lead-wire connection is specified. Follow the matching wiring diagram and isolate power before installation or maintenance.

What equipment is UF-15KMR23 BWHF intended to cool?

It is documented for control cabinets, power supplies, instruments, and compact industrial enclosures. Confirm the 150 × 172 × 55 mm envelope and airflow path against the host equipment.

Can UF-15KMR23 BWHF be used for continuous-duty cooling?

The reference specifies ball bearings and cites a general service-life basis above 40,000 hours at 40°C for this fan family. Actual life depends on temperature, loading, and maintenance.

What installation checks apply to UF-15KMR23 BWHF?

Keep inlet and outlet clear, secure the frame without distortion, follow the documented connection method, and verify voltage before energizing.
