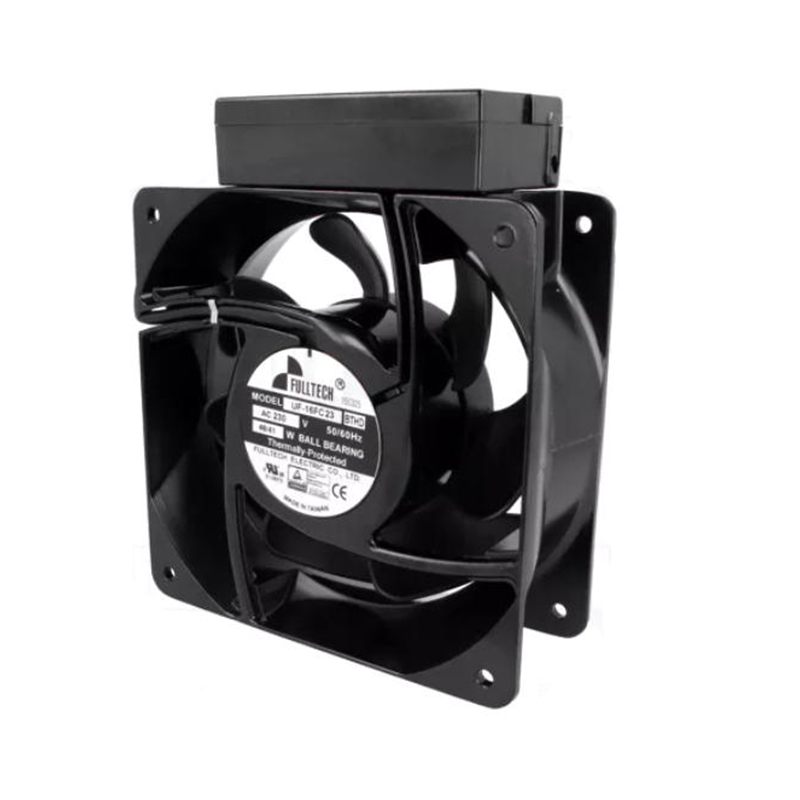

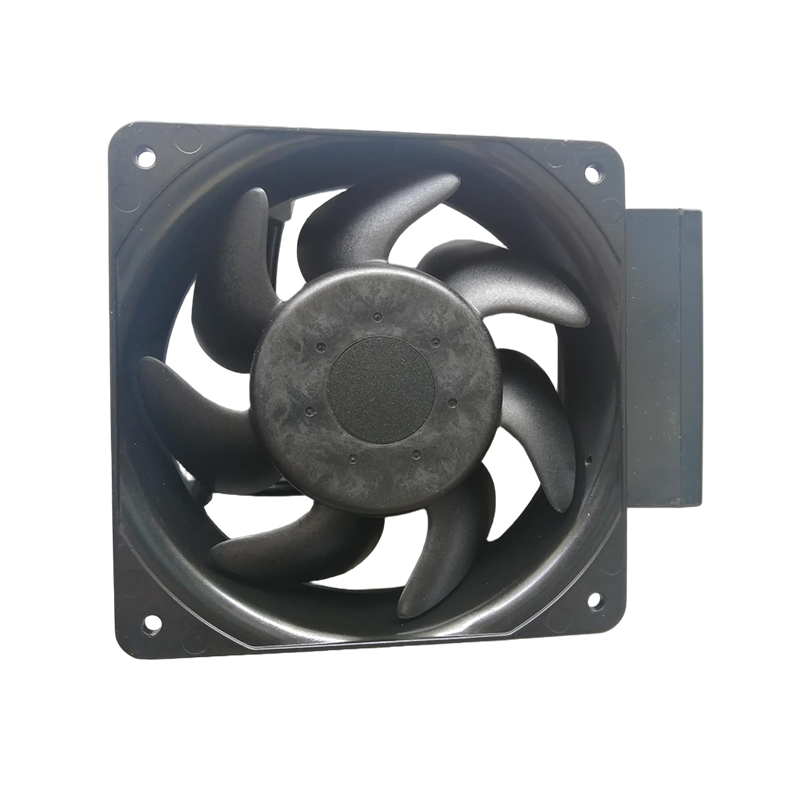

UF-16FC23BTHD FULLTECH Axial Fan

Brand :: FULLTECH

Model:: UF-16FC23BTHD | Fulltech 230VAC 41W AC Axial Fan for HVAC and Industrial Equipment Cooling

Type:: Axial Fans

Industry:: HVAC & Ventilation

Description:: For equipment designers serving HVAC, refrigeration, heat exchangers, and industrial cooling, Fulltech UF-16FC23BTHD offers a 160 × 160 × 62 mm AC axial fan rated for 230 VAC. Motor protection is a key selection detail, supported by a die-cast frame, ball bearings, and terminal connection. Rated data: 41 W input, up to 451 m³/h, 3400 rpm, 56 dB.

Datasheet:: UF-16FC23BTHD | Fulltech 230VAC 41W AC Axial Fan for HVAC and Industrial Equipment Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	12012025
Max.Air Flow(m³/h)	451
Input Power(W)	41
Speed(rpm)	3400
Noise(db)	56

Product Features

Reliable AC Cooling

The Fulltech UF-16FC23BTHD is an AC axial fan developed for HVAC and refrigeration equipment. Its forced-air design supports stable heat removal where natural convection cannot protect enclosed components.

Its rated airflow of up to 451 m3/h gives engineers a basis for sizing enclosure air exchange, while the installed duty point must account for filters, guards and internal resistance. The terminal connection distinguishes the installation interface, helping OEM teams align wiring access with cabinet assembly and service requirements.

For OEM production and service programs, UF-16FC23BTHD provides a documented cooling component. Check supply, connector, airflow direction and environmental limits before release.

Application Industry

HVAC & Refrigeration

Fulltech UF-16FC23BTHD is used in HVAC and refrigeration equipment, moving air around heat-exchange sections to address recurring heating and cooling loads. The fan gives OEM equipment a planned airflow route, supports stable system operation and helps reduce localized heat.

Heat Exchangers

Fulltech UF-16FC23BTHD is used in heat exchangers, moving air around coil and exchanger surfaces to address thermal energy transferred through the assembly. The fan gives OEM equipment a planned airflow route, supports effective heat rejection and helps reduce localized heat.

Industrial Ventilation

Fulltech UF-16FC23BTHD is used in industrial ventilation systems, moving air around equipment air passages to address continuous ventilation demand. The fan gives OEM equipment a planned airflow route, supports controlled air circulation and helps reduce localized heat.

Frequently Asked Questions

How can UF-16FC23BTHD help manage operating cost?

Use its listed 451 m³/h maximum airflow at 3400 rpm to avoid oversizing and compare power input with the required duty point. System-level savings depend on airflow resistance and run time.

How does noise affect selection of UF-16FC23BTHD?

The listed noise value is 56 dB. Compare it at the intended duty point and installation distance because enclosure acoustics can change the result.

What connection style is documented for UF-16FC23BTHD?

A terminal connection is specified. Follow the matching wiring diagram and isolate power before installation or maintenance.

What equipment is UF-16FC23BTHD intended to cool?

It is documented for HVAC, refrigeration, heat exchangers, and industrial cooling. Confirm the 160 × 160 × 62 mm envelope and airflow path against the host equipment.

Can UF-16FC23BTHD be used for continuous-duty cooling?

The reference specifies ball bearings and cites a general service-life basis above 40,000 hours at 40°C for this fan family. Actual life depends on temperature, loading, and maintenance.

What installation checks apply to UF-16FC23BTHD?

Keep inlet and outlet clear, secure the frame without distortion, follow the documented connection method, and verify voltage before energizing.
