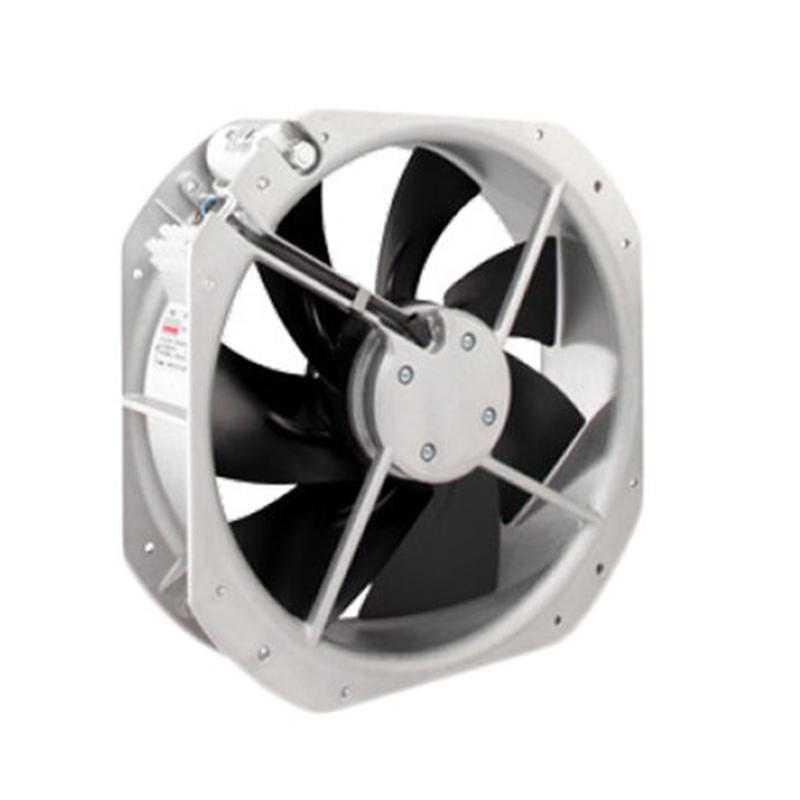

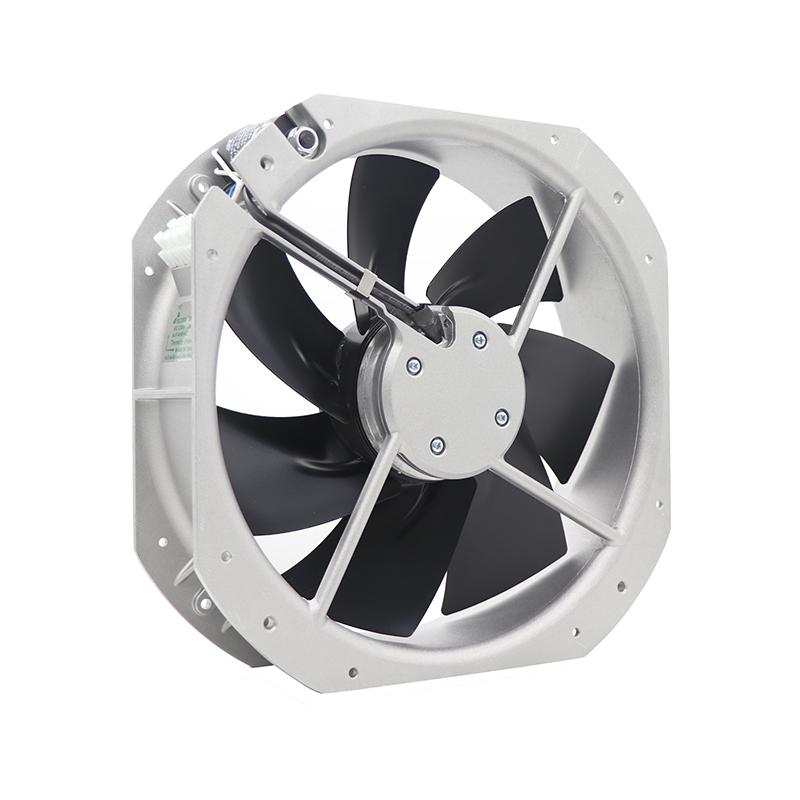

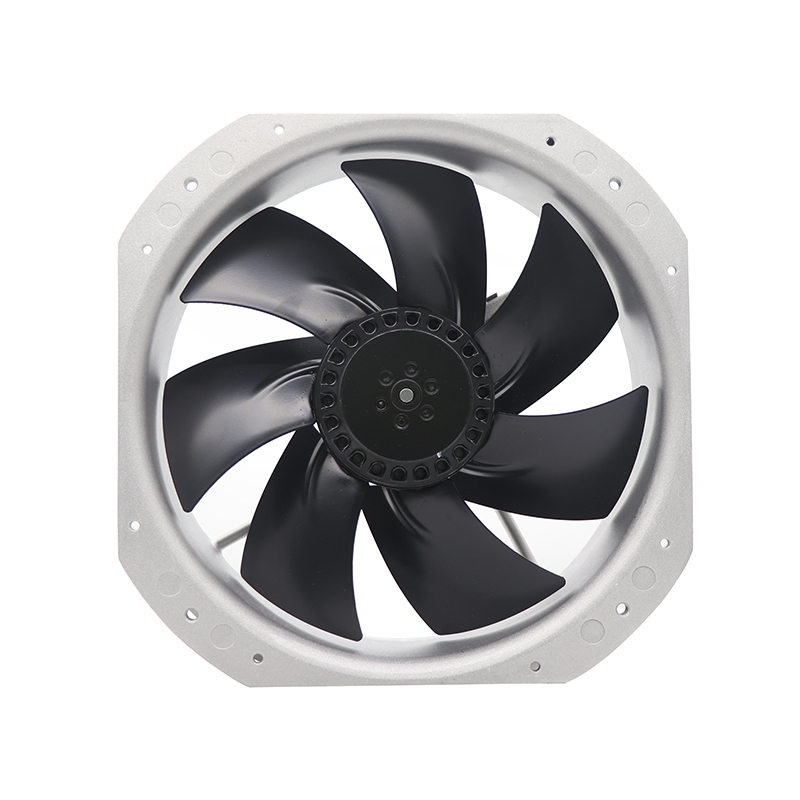

UF-250BMB23H1C2A FULLTECH Axial Fan

Brand :: FULLTECH

Model:: UF-250BMB23H1C2A | Fulltech 230VAC 158W AC Axial Fan for HVAC and Refrigeration Equipment Cooling

Type:: Axial Fans

Industry:: Refrigeration Equipment

Description:: With a Ø250 mm outline and 230 VAC electrical rating, Fulltech UF-250BMB23H1C2A is a AC axial fan specified for HVAC, refrigeration, heat exchangers, and industrial cooling. An integrated external-rotor motor, welded impeller, ball bearings, and protection define this version. Rated data: 158 W input, up to 1921 m³/h, 2700 rpm, 70 dB.

Datasheet:: UF-250BMB23H1C2A | Fulltech 230VAC 158W AC Axial Fan for HVAC and Refrigeration Equipment Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	28028080
Max.Air Flow(m³/h)	1921
Input Power(W)	158
Speed(rpm)	2700
Noise(db)	70

Product Features

Metal Impeller Duty

Designed for HVAC and refrigeration equipment, Fulltech UF-250BMB23H1C2A provides external-rotor AC axial fan airflow in a compact equipment-ready format. It helps prevent local hot spots during continuous operation.

With a listed maximum airflow of 1921 m3/h, the fan can move useful cooling air through the equipment. Final performance depends on the pressure loss of the complete assembly. The integrated external-rotor motor and welded steel impeller form a compact drive-and-airflow assembly for continuous ventilation.

This model is appropriate for B2B buyers who need repeatable equipment cooling. Retain the full UF-250BMB23H1C2A code and check the electrical and mechanical interface before ordering.

Application Industry

HVAC & Refrigeration

Fulltech UF-250BMB23H1C2A is used in HVAC and refrigeration equipment, moving air around heat-exchange sections to address recurring heating and cooling loads. The fan gives OEM equipment a planned airflow route, supports stable system operation and helps reduce localized heat.

Condenser & Evaporator

Fulltech UF-250BMB23H1C2A is used in condenser and evaporator equipment, moving air around coil surfaces to address refrigeration heat-transfer loads. The fan gives OEM equipment a planned airflow route, supports reliable temperature control and helps reduce localized heat.

Heat Exchangers

Fulltech UF-250BMB23H1C2A is used in heat exchangers, moving air around coil and exchanger surfaces to address thermal energy transferred through the assembly. The fan gives OEM equipment a planned airflow route, supports effective heat rejection and helps reduce localized heat.

Industrial Ventilation

Fulltech UF-250BMB23H1C2A is used in industrial ventilation systems, moving air around equipment air passages to address continuous ventilation demand. The fan gives OEM equipment a planned airflow route, supports controlled air circulation and helps reduce localized heat.

Frequently Asked Questions

How does noise affect selection of UF-250BMB23H1C2A?

The listed noise value is 70 dB. Compare it at the intended duty point and installation distance because enclosure acoustics can change the result.

What connection style is documented for UF-250BMB23H1C2A?

Use the connection arrangement shown in the supplied datasheet. Follow the matching wiring diagram and isolate power before installation or maintenance.

What equipment is UF-250BMB23H1C2A intended to cool?

It is documented for HVAC, refrigeration, heat exchangers, and industrial cooling. Confirm the Ø250 mm envelope and airflow path against the host equipment.

Can UF-250BMB23H1C2A be used for continuous-duty cooling?

The reference specifies ball bearings and cites a general service-life basis above 40,000 hours at 40°C for this fan family. Actual life depends on temperature, loading, and maintenance.

What installation checks apply to UF-250BMB23H1C2A?

Keep inlet and outlet clear, secure the frame without distortion, follow the documented connection method, and verify voltage before energizing.
