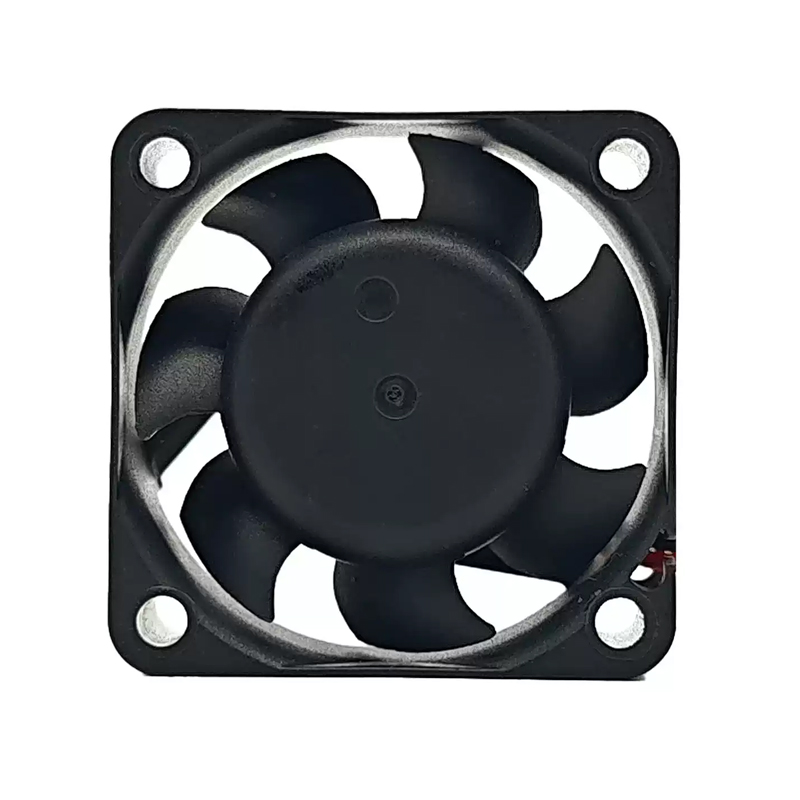

AFB0424HB Delta Compact Fan

Brand :: Delta

Model:: AFB0424HB | Delta Electronics 24VDC 1.92W Axial Fan for Server and Power Supply Cooling

Type:: Compact Fans

Industry:: Data Center Cooling

Description:: At a listed 7000 rpm, AFB0424HB provides a different speed option within the 40 mm axial fan range. It operates on 24VDC for server and power-supply cooling, with a 15 mm body depth and 1.92 W input.

Datasheet:: AFB0424HB | Delta Electronics 24VDC 1.92W Axial Fan for Server and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	404015
Max.Air Flow(m³/h)	16
Input Power(W)	1.92
Speed(rpm)	7000
Noise(db)	28.5

Product Features

Compact DC Cooling

For industrial control equipment, the AFB0424HB from Delta is a brushless DC axial fan that supports active thermal management. A planned inlet-to-outlet route helps the installation carry component heat away.

A listed speed of 7000 rpm helps define the operating profile when reviewing airflow demand, mechanical mounting and the enclosure's acoustic target. The series uses ball-bearing motor support for rotational durability, giving OEMs a service-life-oriented construction for equipment cooling. Acoustic results depend on the enclosure and duty point; smooth inlet geometry helps control avoidable airflow noise.

Choose it for a model-specific cooling requirement, with connector, operating conditions and airflow direction checked before release to production.

Application Industry

Server & Storage

Delta AFB0424HB serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

In power-supply equipment, Delta AFB0424HB helps remove heat from power-conversion components. The cooling solution addresses electrical conversion losses to support dependable power delivery.

Telecommunications

For telecommunications equipment, Delta AFB0424HB provides equipment cooling around densely arranged electronic assemblies. Managing continuous communication duty helps maintain service continuity.

Industrial Controls

In industrial control equipment, air movement helps handle heat accumulated within enclosures. Delta AFB0424HB supports cooling around controllers and electronic modules, contributing to stable automation operation.

Frequently Asked Questions

How should the pressure capability of AFB0424HB be checked?

No maximum-pressure value is present in the filter row. Match the exact-model curve to the system resistance before using the fan in a restricted airflow path.

What equipment is AFB0424HB intended to cool?

AFB0424HB is listed for Server and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

How should noise from AFB0424HB be evaluated?

The listed noise value is 28.5 dB, but compare values only under matching test conditions. Installed noise also depends on speed, restriction, resonance and enclosure geometry.

Can AFB0424HB run continuously in 24/7 equipment?

The supplied filter data does not establish an unconditional 24/7 rating. Confirm bearing life, temperature range, duty cycle and derating in the exact datasheet, then validate system-level redundancy.

Can AFB0424HB reduce total ownership cost?

The provided parameters do not prove a cost saving. Compare purchase price, power at the real operating point, service access, expected life and downtime risk for the complete cooling system.

Is stock and lead time stable for AFB0424HB?

In Stock is shown in the workbook, but this is not a delivery guarantee. Confirm the complete part number, quantity, current inventory and committed lead time when ordering.
