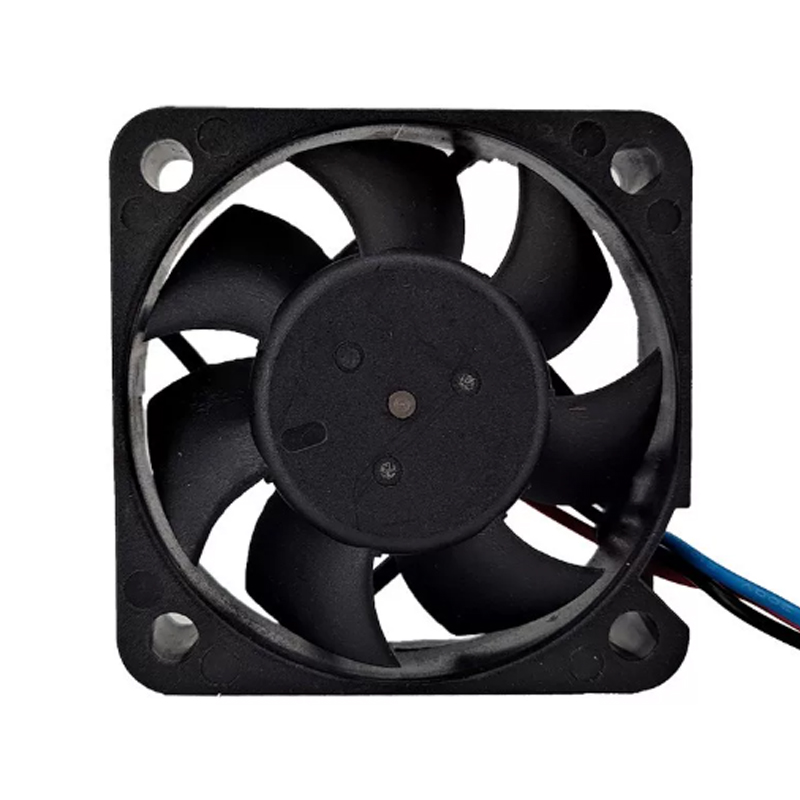

AFB0524HHB-F00 Delta Compact Fan

Brand :: Delta

Model:: AFB0524HHB-F00 | Delta Electronics 24VDC 1.92W Axial Fan for Server and Power Supply Cooling

Type:: Compact Fans

Industry:: Data Center Cooling

Description:: For a shallow 50 mm installation, AFB0524HHB-F00 is a 24VDC axial fan intended for server and power-supply cooling. Its 15 mm depth is paired with 6400 rpm operation and a listed 27.6 m3/h maximum airflow.

Product Features

Rated Voltage(V)	24
Size(mm)	505015
Max.Air Flow(m³/h)	27.6
Max.Pressure(Pa)	78.5
Input Power(W)	1.92
Speed(rpm)	6400
Noise(db)	36

Product Features

Compact DC Cooling

In power-supply equipment, Delta AFB0524HHB-F00 supplies the forced-air element of the cooling system. As a brushless DC axial fan, it is intended for integration into a defined mechanical and electrical assembly.

A listed speed of 6400 rpm helps define the operating profile when reviewing airflow demand, mechanical mounting and the enclosure's acoustic target. The series combines ball-bearing construction with UL 94V-0 materials, addressing mechanical durability and component flammability requirements. Good inlet spacing helps reduce turbulence, which matters when balancing usable cooling capacity against installed sound levels.

It suits engineering buyers who need a defined cooling component. Verify the exact wiring and environmental limits before approving long-term installation.

Application Industry

Server & Storage

Delta AFB0524HHB-F00 serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

In power-supply equipment, Delta AFB0524HHB-F00 helps remove heat from power-conversion components. The cooling solution addresses electrical conversion losses to support dependable power delivery.

Telecommunications

For telecommunications equipment, Delta AFB0524HHB-F00 provides equipment cooling around densely arranged electronic assemblies. Managing continuous communication duty helps maintain service continuity.

Industrial Controls

In industrial control equipment, air movement helps handle heat accumulated within enclosures. Delta AFB0524HHB-F00 supports cooling around controllers and electronic modules, contributing to stable automation operation.

Frequently Asked Questions

What supply voltage should be used for AFB0524HHB-F00?

24VDC is listed for AFB0524HHB-F00. Verify the allowable input range, phase, frequency where applicable, polarity and wiring diagram in the exact specification.

What equipment is AFB0524HHB-F00 intended to cool?

AFB0524HHB-F00 is listed for Server and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

How should the energy efficiency of AFB0524HHB-F00 be assessed?

The listed input-power figure is 1.92 W, but efficiency must be evaluated at the required airflow and pressure. Check the applicable fan curve and test conditions before comparison.

How should noise from AFB0524HHB-F00 be evaluated?

The listed noise value is 36 dB, but compare values only under matching test conditions. Installed noise also depends on speed, restriction, resonance and enclosure geometry.

Can AFB0524HHB-F00 run continuously in 24/7 equipment?

The supplied filter data does not establish an unconditional 24/7 rating. Confirm bearing life, temperature range, duty cycle and derating in the exact datasheet, then validate system-level redundancy.

Can AFB0524HHB-F00 directly replace another fan?

A matching outline alone does not prove compatibility. Check 24VDC, mounting dimensions, connector, pinout, airflow direction, control signals and the required pressure-flow point.
