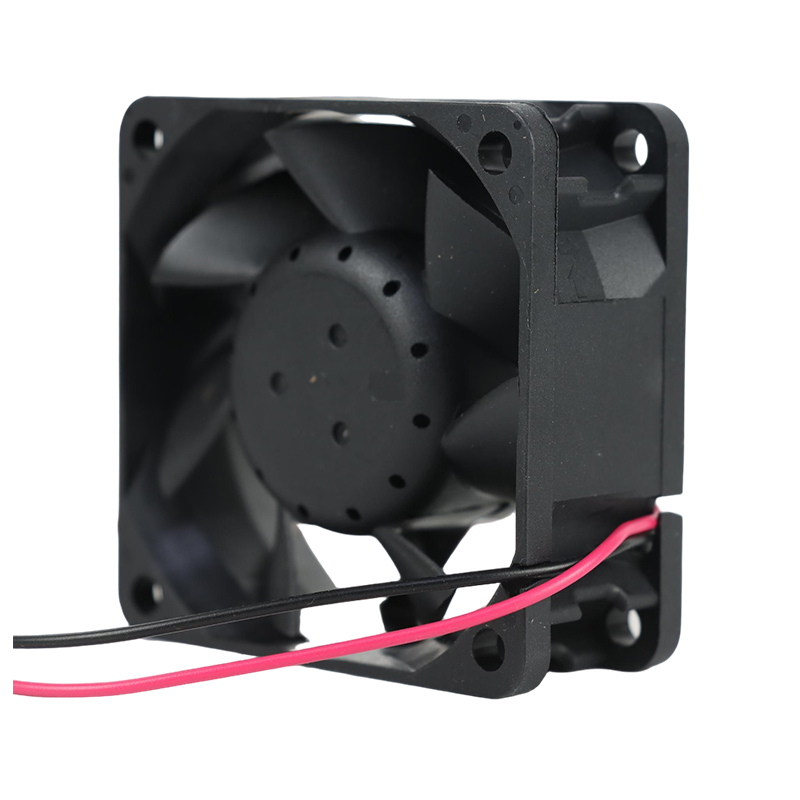

AFB0624EHW7F Delta Compact Fan

Brand :: Delta

Model:: AFB0624EHW7F | Delta Electronics 24VDC 5.76W Axial Fan for Server and Power Supply Cooling

Type:: Compact Fans

Industry:: Data Center Cooling

Description:: AFB0624EHW7F targets server and power-supply ventilation with a 24VDC axial fan design. A listed maximum static pressure of 135.5 Pa complements its 60 x 60 x 25 mm frame and 6800 rpm operating speed.

Product Features

Rated Voltage(V)	24
Size(mm)	606025
Max.Air Flow(m³/h)	65.28
Max.Pressure(Pa)	135.5
Input Power(W)	5.76
Speed(rpm)	6800
Noise(db)	46.5

Product Features

Compact DC Cooling

For industrial control equipment, the AFB0624EHW7F from Delta is a brushless DC axial fan that supports active thermal management. A planned inlet-to-outlet route helps the installation carry component heat away.

The listed 5.76 W input is relevant to supply sizing and the system energy budget; actual consumption depends on the operating duty. The series uses ball-bearing motor support for rotational durability, giving OEMs a service-life-oriented construction for equipment cooling. Separating the intake from warmed exhaust improves the effectiveness of air exchange across the equipment section.

OEM purchasers can specify this model after checking the thermal duty, supply and mechanical fit, keeping reliable equipment operation central to selection.

Application Industry

Server & Storage

Delta AFB0624EHW7F serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

In power-supply equipment, Delta AFB0624EHW7F helps remove heat from power-conversion components. The cooling solution addresses electrical conversion losses to support dependable power delivery.

Telecommunications

For telecommunications equipment, Delta AFB0624EHW7F provides equipment cooling around densely arranged electronic assemblies. Managing continuous communication duty helps maintain service continuity.

Industrial Controls

In industrial control equipment, air movement helps handle heat accumulated within enclosures. Delta AFB0624EHW7F supports cooling around controllers and electronic modules, contributing to stable automation operation.

Frequently Asked Questions

How should the pressure capability of AFB0624EHW7F be checked?

The workbook lists 135.5 Pa maximum pressure. Maximum pressure and maximum airflow occur at different points, so select AFB0624EHW7F from its curve at the required system resistance.

What equipment is AFB0624EHW7F intended to cool?

AFB0624EHW7F is listed for Server and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

Can AFB0624EHW7F reduce total ownership cost?

The provided parameters do not prove a cost saving. Compare purchase price, power at the real operating point, service access, expected life and downtime risk for the complete cooling system.

Is stock and lead time stable for AFB0624EHW7F?

In Stock is shown in the workbook, but this is not a delivery guarantee. Confirm the complete part number, quantity, current inventory and committed lead time when ordering.

What maximum airflow is listed for AFB0624EHW7F?

The workbook lists a maximum airflow of 65.28 m3/h. This is not the airflow at every system resistance; use the applicable pressure-flow curve to identify the installed operating point.
