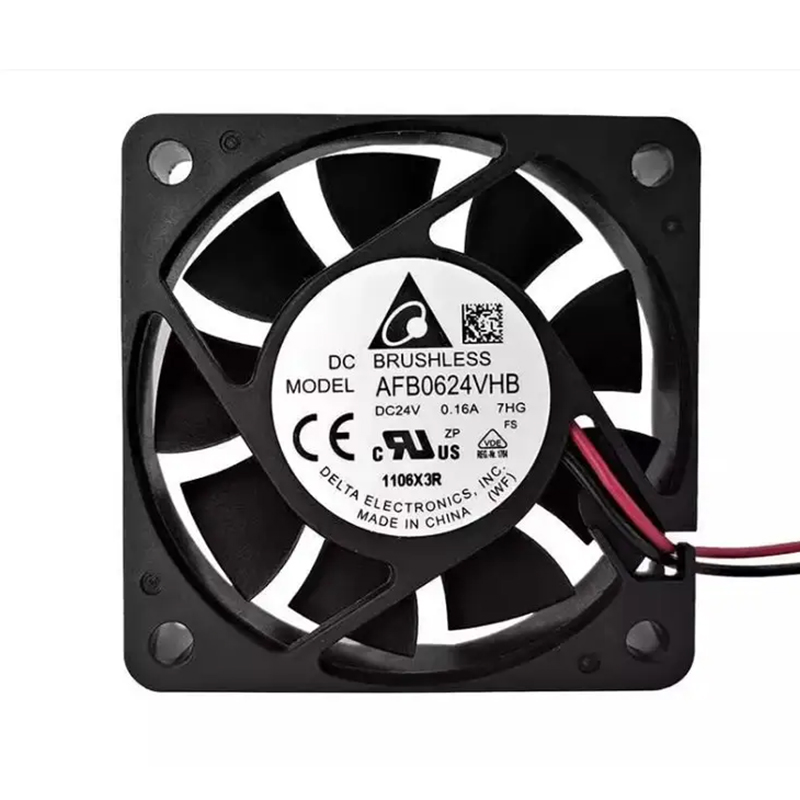

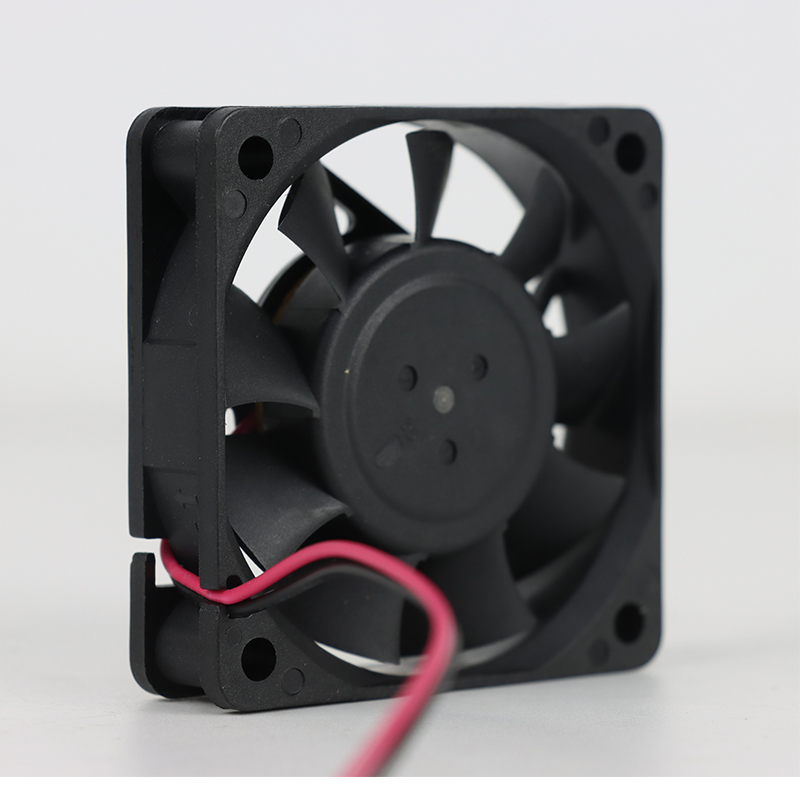

AFB0624VHBWPE Delta Compact Fan

Brand :: Delta

Model:: AFB0624VHBWPE | Delta Electronics 24VDC 2.64W Axial Fan for Server and Power Supply Cooling

Type:: Compact Fans

Industry:: Data Center Cooling

Description:: A 15 mm profile distinguishes AFB0624VHBWPE for server chassis and power supplies. This 24VDC axial fan measures 60 x 60 mm across the frame and is listed at 5000 rpm with a 2.64 W electrical input.

Product Features

Rated Voltage(V)	24
Size(mm)	606015
Max.Air Flow(m³/h)	32.98
Input Power(W)	2.64
Speed(rpm)	5000
Noise(db)	37

Product Features

Compact DC Cooling

AFB0624VHBWPE is a Delta cooling solution for server and storage equipment. This brushless DC axial fan gives designers a practical means of circulating air through a thermally loaded equipment section.

Its listed 60 x 60 x 15 mm format defines the space needed for installation, helping designers reserve room for adjacent components and cable routing. The series combines ball-bearing construction with UL 94V-0 materials, addressing mechanical durability and component flammability requirements. Selecting the operating point against real pressure loss helps avoid oversizing and keeps thermal design focused on useful air delivery.

OEM purchasers can specify this model after checking the thermal duty, supply and mechanical fit, keeping reliable equipment operation central to selection.

Application Industry

Server & Storage

Delta AFB0624VHBWPE serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

In power-supply equipment, Delta AFB0624VHBWPE helps remove heat from power-conversion components. The cooling solution addresses electrical conversion losses to support dependable power delivery.

Telecommunications

For telecommunications equipment, Delta AFB0624VHBWPE provides equipment cooling around densely arranged electronic assemblies. Managing continuous communication duty helps maintain service continuity.

Industrial Controls

In industrial control equipment, air movement helps handle heat accumulated within enclosures. Delta AFB0624VHBWPE supports cooling around controllers and electronic modules, contributing to stable automation operation.

Frequently Asked Questions

What equipment is AFB0624VHBWPE intended to cool?

AFB0624VHBWPE is listed for Server and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

Can AFB0624VHBWPE reduce total ownership cost?

The provided parameters do not prove a cost saving. Compare purchase price, power at the real operating point, service access, expected life and downtime risk for the complete cooling system.

What power figure is listed for AFB0624VHBWPE?

2.64 W is shown in the filter data. Check whether the corresponding datasheet defines it as rated, free-air or maximum-load input before sizing the power source.

Is AFB0624VHBWPE suitable for a high-reliability cooling system?

Suitability depends on thermal margin, operating temperature, alarm or feedback requirements and system redundancy. Qualify AFB0624VHBWPE at the actual duty point; the model name alone is not a reliability guarantee.

Can AFB0624VHBWPE run continuously in 24/7 equipment?

The supplied filter data does not establish an unconditional 24/7 rating. Confirm bearing life, temperature range, duty cycle and derating in the exact datasheet, then validate system-level redundancy.

Why choose AFB0624VHBWPE over a general-purpose fan?

AFB0624VHBWPE provides a defined axial fan format with a listed 5000 rpm speed in a 60 x 60 x 15 mm size. Compare its fan curve with the actual duty point rather than assuming a universal advantage.
