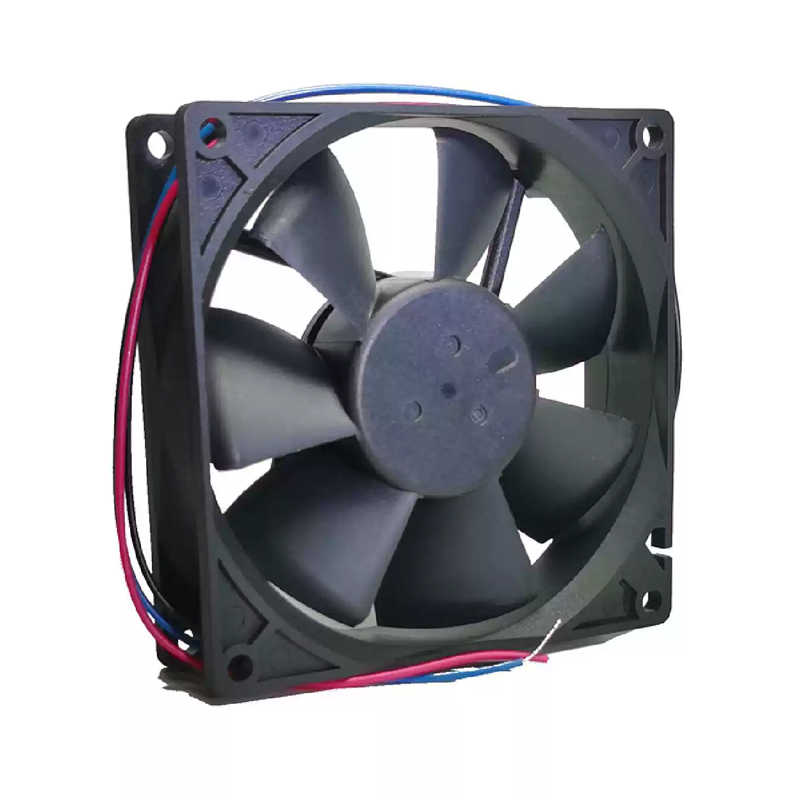

AFB0912VH-R00 Delta Blower Fan

Brand :: Delta

Model:: AFB0912VH-R00 | Delta Electronics 12VDC 4.8W Axial Fan for Server and Power Supply Cooling

Type:: Blower Fans

Industry:: Data Center Cooling

Description:: AFB0912VH-R00 provides a suffix-specific 12VDC axial fan cooling option for server chassis. Rated dimensions are 92 x 92 x 25 mm; the listed 4.8 W input is relevant when budgeting power for multiple enclosure fans.

Datasheet:: AFB0912VH-R00 | Delta Electronics 12VDC 4.8W Axial Fan for Server and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	929225
Max.Air Flow(m³/h)	115.26
Max.Pressure(Pa)	75.2
Input Power(W)	4.8
Speed(rpm)	3800
Noise(db)	45

Product Features

DC Equipment Cooling

The Delta AFB0912VH-R00 is a brushless DC axial fan for server and storage equipment. It provides a defined airflow path where equipment layout leaves limited room for passive heat removal.

Its listed 92 x 92 x 25 mm format defines the space needed for installation, helping designers reserve room for adjacent components and cable routing. The axial layout moves air along the fan axis, supporting a direct ventilation route through the equipment opening. Selecting the operating point against real pressure loss helps avoid oversizing and keeps thermal design focused on useful air delivery.

This fan is a practical candidate for equipment builders and service teams when its verified duty point and mounting interface match the finished system.

Application Industry

Server & Storage

Delta AFB0912VH-R00 serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

In power-supply equipment, Delta AFB0912VH-R00 helps remove heat from power-conversion components. The cooling solution addresses electrical conversion losses to support dependable power delivery.

Telecommunications

For telecommunications equipment, Delta AFB0912VH-R00 provides equipment cooling around densely arranged electronic assemblies. Managing continuous communication duty helps maintain service continuity.

Industrial Controls

In industrial control equipment, air movement helps handle heat accumulated within enclosures. Delta AFB0912VH-R00 supports cooling around controllers and electronic modules, contributing to stable automation operation.

Frequently Asked Questions

Why choose AFB0912VH-R00 over a general-purpose fan?

AFB0912VH-R00 provides a defined axial fan format with a listed 3800 rpm speed in a 92 x 92 x 25 mm size. Compare its fan curve with the actual duty point rather than assuming a universal advantage.

What operating speed is listed for AFB0912VH-R00?

3800 rpm is listed in the workbook. This value alone does not establish adjustable-speed capability; confirm the control input and permitted operating range in the exact datasheet.

What power figure is listed for AFB0912VH-R00?

4.8 W is shown in the filter data. Check whether the corresponding datasheet defines it as rated, free-air or maximum-load input before sizing the power source.

What equipment is AFB0912VH-R00 intended to cool?

AFB0912VH-R00 is listed for Server and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

Can AFB0912VH-R00 reduce total ownership cost?

The provided parameters do not prove a cost saving. Compare purchase price, power at the real operating point, service access, expected life and downtime risk for the complete cooling system.
