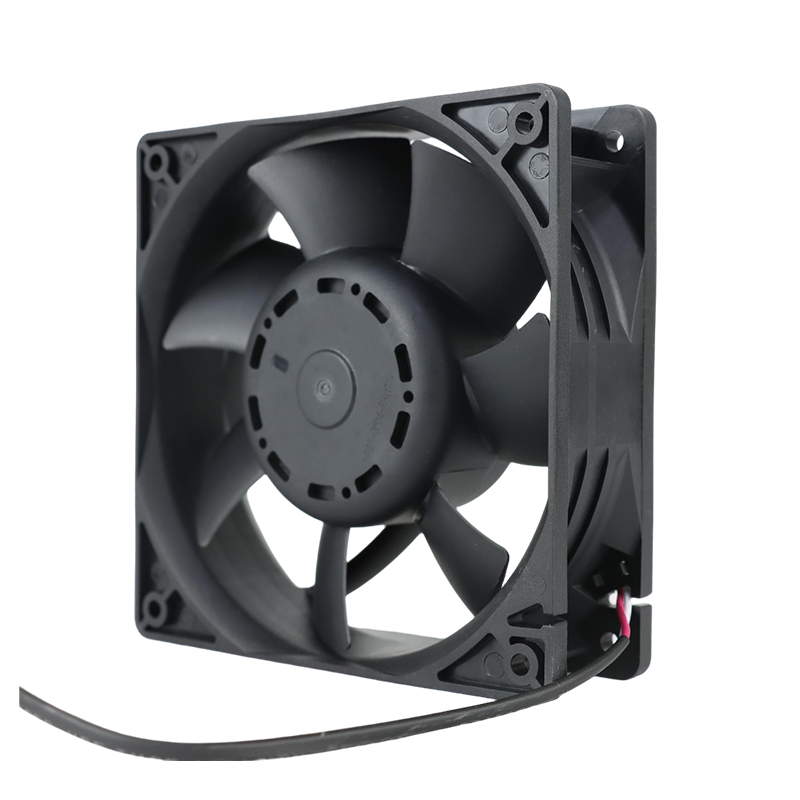

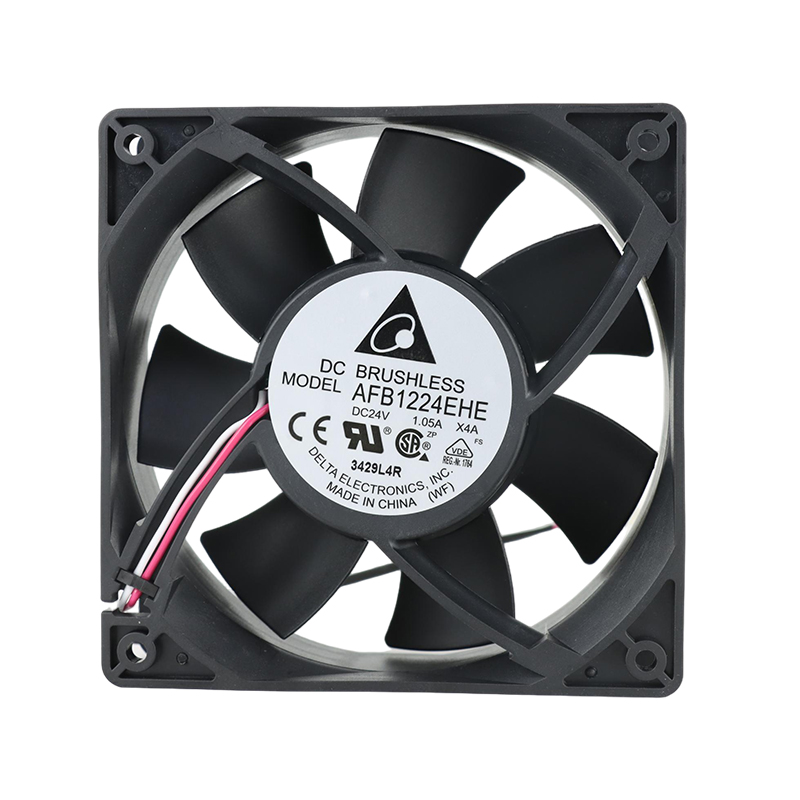

AFB1224EHEX4A Delta Compact Fan

Brand :: Delta

Model:: AFB1224EHEX4A | Delta Electronics 24VDC 20.4W Axial Fan for Server and Power Supply Cooling

Type:: Compact Fans

Industry:: Data Center Cooling

Description:: For server chassis requiring a 120 mm fan, AFB1224EHEX4A combines 24VDC axial operation with 361.42 m3/h listed maximum airflow. The 38 mm-deep assembly is specified at 4600 rpm and 20.4 W input.

Product Features

Rated Voltage(V)	24
Size(mm)	12012038
Max.Air Flow(m³/h)	361.42
Input Power(W)	20.4
Speed(rpm)	4600
Noise(db)	58.5

Product Features

DC Equipment Cooling

In power-supply equipment, Delta AFB1224EHEX4A supplies the forced-air element of the cooling system. As a brushless DC axial fan, it is intended for integration into a defined mechanical and electrical assembly.

The 24 V DC supply requirement gives electrical designers a clear basis for matching the fan to the equipment power architecture. The series combines ball-bearing construction with UL 94V-0 materials, addressing mechanical durability and component flammability requirements. Keeping inlet obstructions clear helps preserve useful airflow without spending extra power on avoidable system losses.

For OEM design-in and replacement sourcing, confirm the full suffix, connector and mounting pattern to support dependable service in the intended assembly.

Application Industry

Server & Storage

Delta AFB1224EHEX4A serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

In power-supply equipment, Delta AFB1224EHEX4A helps remove heat from power-conversion components. The cooling solution addresses electrical conversion losses to support dependable power delivery.

Telecommunications

For telecommunications equipment, Delta AFB1224EHEX4A provides equipment cooling around densely arranged electronic assemblies. Managing continuous communication duty helps maintain service continuity.

Industrial Controls

In industrial control equipment, air movement helps handle heat accumulated within enclosures. Delta AFB1224EHEX4A supports cooling around controllers and electronic modules, contributing to stable automation operation.

Frequently Asked Questions

Which certifications or standards apply to AFB1224EHEX4A?

RoHS Compliant is listed in the workbook. Obtain the current exact-model declaration and datasheet before claiming safety approvals, ingress protection or international compliance.

What equipment is AFB1224EHEX4A intended to cool?

AFB1224EHEX4A is listed for Server and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

What supply voltage should be used for AFB1224EHEX4A?

24VDC is listed for AFB1224EHEX4A. Verify the allowable input range, phase, frequency where applicable, polarity and wiring diagram in the exact specification.

What should be checked if AFB1224EHEX4A fails to start?

Isolate power first. Verify the approved supply, connector, polarity or phase, control-enable input and any obstruction; follow the exact specification and do not bypass protection circuits.

Can AFB1224EHEX4A directly replace another fan?

A matching outline alone does not prove compatibility. Check 24VDC, mounting dimensions, connector, pinout, airflow direction, control signals and the required pressure-flow point.

Does AFB1224EHEX4A support speed control?

The filter data does not confirm a control interface. Check the exact-model datasheet and wiring for PWM, analog control, FG/RD feedback or fixed-speed operation before connection.
