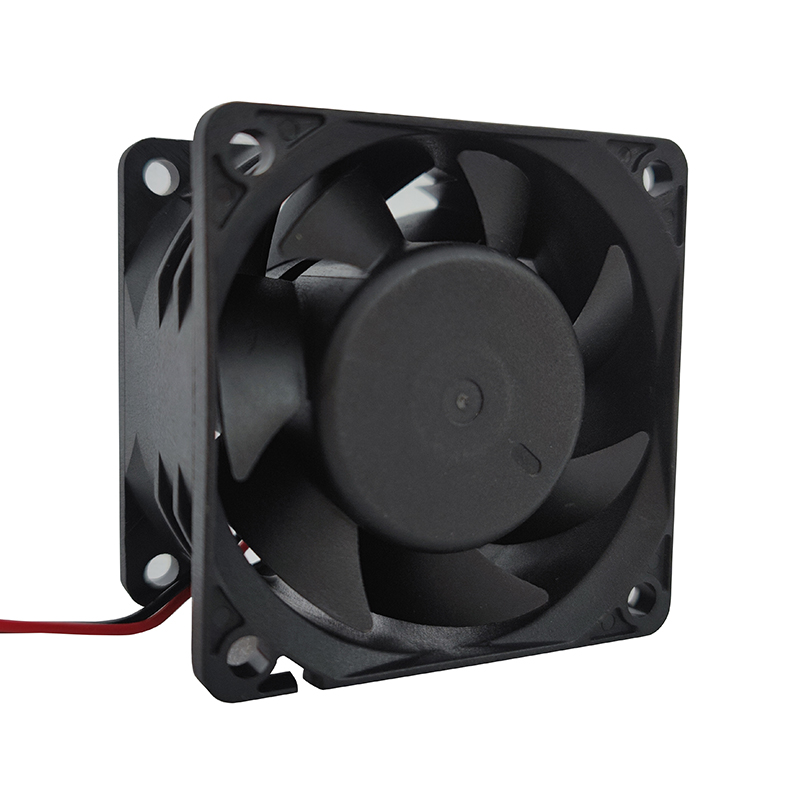

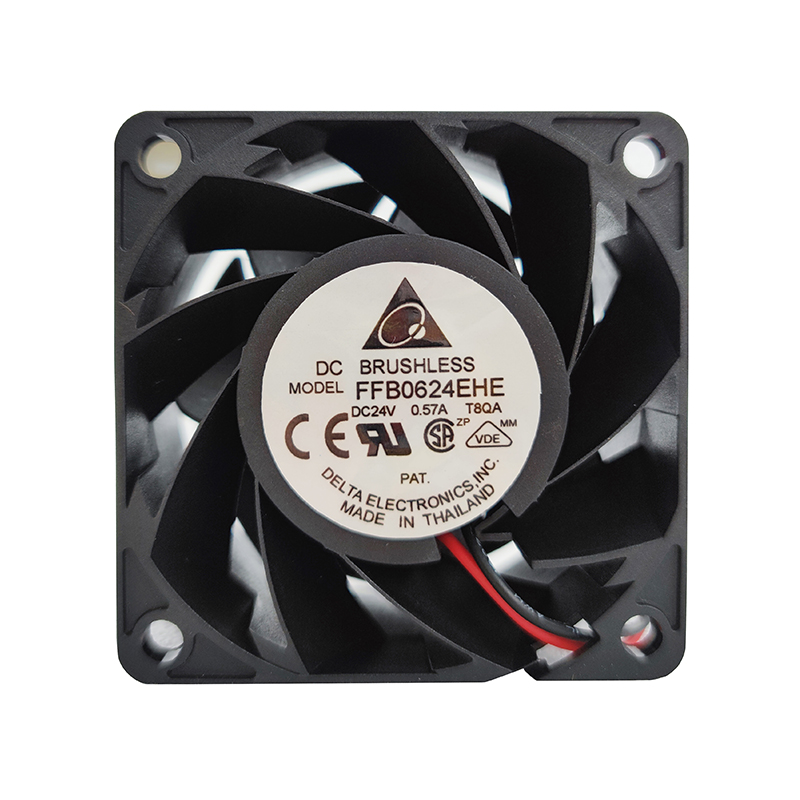

FFB0624EHE Delta Compact Fan

Brand :: Delta

Model:: FFB0624EHE | Delta Electronics 24VDC 9.12W Axial Fan for Server and Telecommunications Cooling

Type:: Compact Fans

Industry:: Data Center Cooling

Description:: FFB0624EHE brings a 38 mm-deep, 60 mm axial format to server and telecom cooling. The 24VDC model runs at 8000 rpm, with 85.34 m3/h maximum airflow specified for this higher-speed enclosure fan.

Datasheet:: FFB0624EHE | Delta Electronics 24VDC 9.12W Axial Fan for Server and Telecommunications Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	606038
Max.Air Flow(m³/h)	85.34
Input Power(W)	9.12
Speed(rpm)	8000
Noise(db)	54.5

Product Features

Compact DC Cooling

In uninterruptible power systems, Delta FFB0624EHE supplies the forced-air element of the cooling system. As a brushless DC axial fan, it is intended for integration into a defined mechanical and electrical assembly.

The 24 V DC supply requirement gives electrical designers a clear basis for matching the fan to the equipment power architecture. The axial layout moves air along the fan axis, supporting a direct ventilation route through the equipment opening. Separating the intake from warmed exhaust improves the effectiveness of air exchange across the equipment section.

This fan is a practical candidate for equipment builders and service teams when its verified duty point and mounting interface match the finished system.

Application Industry

Server & Storage

Delta FFB0624EHE serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

UPS Equipment

For uninterruptible power systems, Delta FFB0624EHE provides equipment cooling around power electronics. Managing heat produced during power conversion helps maintain stable backup-power operation.

Power Supplies

In power-supply equipment, air movement helps handle electrical conversion losses. Delta FFB0624EHE supports cooling around power-conversion components, contributing to dependable power delivery.

Telecommunications

Delta FFB0624EHE supports cooling in telecommunications equipment. Air circulation around densely arranged electronic assemblies helps manage continuous communication duty, supporting service continuity.

Frequently Asked Questions

What equipment is FFB0624EHE intended to cool?

FFB0624EHE is listed for Server and Telecommunications cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

What should be checked if FFB0624EHE fails to start?

Isolate power first. Verify the approved supply, connector, polarity or phase, control-enable input and any obstruction; follow the exact specification and do not bypass protection circuits.

What installation space is required for FFB0624EHE?

The workbook lists 60 x 60 x 38 mm. Confirm overall depth, hole pattern, connector clearance and guard or inlet-ring dimensions in the exact mechanical drawing.

Which certifications or standards apply to FFB0624EHE?

RoHS Compliant is listed in the workbook. Obtain the current exact-model declaration and datasheet before claiming safety approvals, ingress protection or international compliance.

Why choose FFB0624EHE over a general-purpose fan?

FFB0624EHE provides a defined axial fan format with a listed 8000 rpm speed in a 60 x 60 x 38 mm size. Compare its fan curve with the actual duty point rather than assuming a universal advantage.
