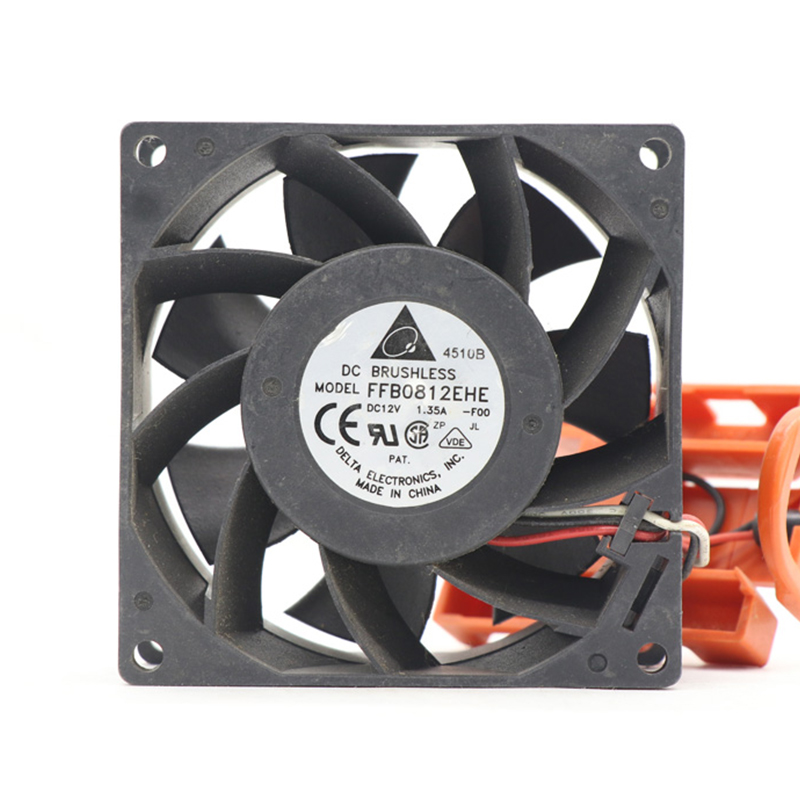

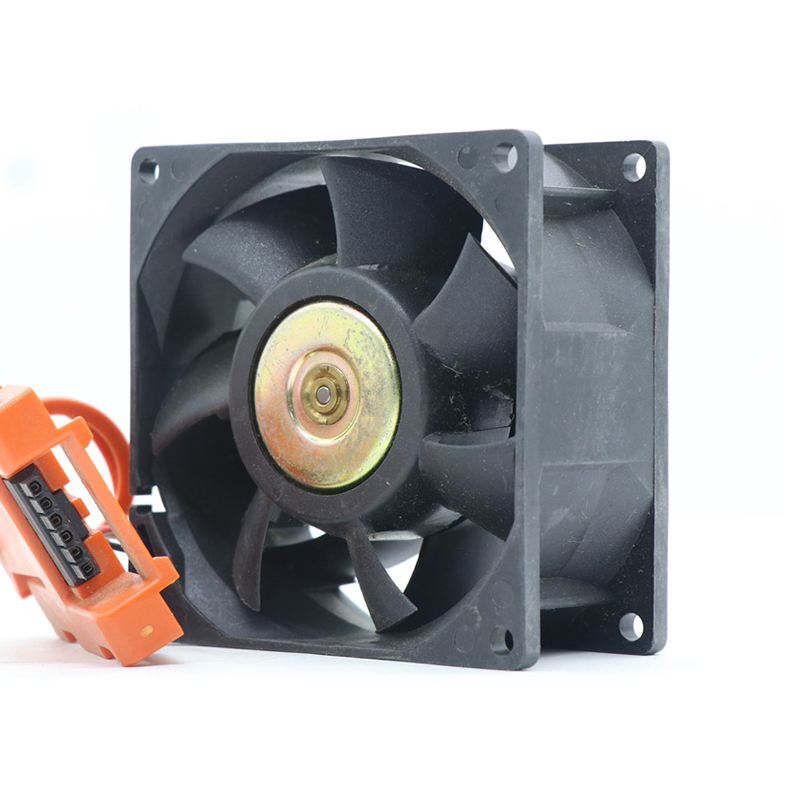

FFB0812EHE Delta Compact Fan

Brand :: Delta

Model:: FFB0812EHE | Delta Electronics 12VDC 10.8W Axial Fan for Server and Telecommunications Cooling

Type:: Compact Fans

Industry:: Data Center Cooling

Description:: For server airflow in an 80 mm frame, FFB0812EHE uses a 38 mm-deep axial design. The 12VDC fan has a 5700 rpm rating and a listed maximum airflow of 136 m3/h, with 10.8 W input power specified.

Datasheet:: FFB0812EHE | Delta Electronics 12VDC 10.8W Axial Fan for Server and Telecommunications Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	808038
Max.Air Flow(m³/h)	136
Input Power(W)	10.8
Speed(rpm)	5700
Noise(db)	52.5

Product Features

DC Equipment Cooling

Designed for uninterruptible power systems, Delta FFB0812EHE brings brushless DC axial fan integration to thermally loaded assemblies. Its role is to move cooling air across components during equipment operation.

Its listed 80 x 80 x 38 mm format defines the space needed for installation, helping designers reserve room for adjacent components and cable routing. Its high-performance fan family emphasizes air delivery and pressure capability, helping address the resistance of densely populated equipment. Keeping inlet obstructions clear helps preserve useful airflow without spending extra power on avoidable system losses.

For OEM design-in and replacement sourcing, confirm the full suffix, connector and mounting pattern to support dependable service in the intended assembly.

Application Industry

Server & Storage

Delta FFB0812EHE serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

UPS Equipment

In uninterruptible power systems, Delta FFB0812EHE helps remove heat from power electronics. The cooling solution addresses heat produced during power conversion to support stable backup-power operation.

Power Supplies

For power-supply equipment, Delta FFB0812EHE provides equipment cooling around power-conversion components. Managing electrical conversion losses helps maintain dependable power delivery.

Telecommunications

In telecommunications equipment, air movement helps handle continuous communication duty. Delta FFB0812EHE supports cooling around densely arranged electronic assemblies, contributing to service continuity.

Frequently Asked Questions

What equipment is FFB0812EHE intended to cool?

FFB0812EHE is listed for Server and Telecommunications cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

What power figure is listed for FFB0812EHE?

10.8 W is shown in the filter data. Check whether the corresponding datasheet defines it as rated, free-air or maximum-load input before sizing the power source.

Which certifications or standards apply to FFB0812EHE?

RoHS Compliant is listed in the workbook. Obtain the current exact-model declaration and datasheet before claiming safety approvals, ingress protection or international compliance.

What should be checked if FFB0812EHE fails to start?

Isolate power first. Verify the approved supply, connector, polarity or phase, control-enable input and any obstruction; follow the exact specification and do not bypass protection circuits.

What installation space is required for FFB0812EHE?

The workbook lists 80 x 80 x 38 mm. Confirm overall depth, hole pattern, connector clearance and guard or inlet-ring dimensions in the exact mechanical drawing.
