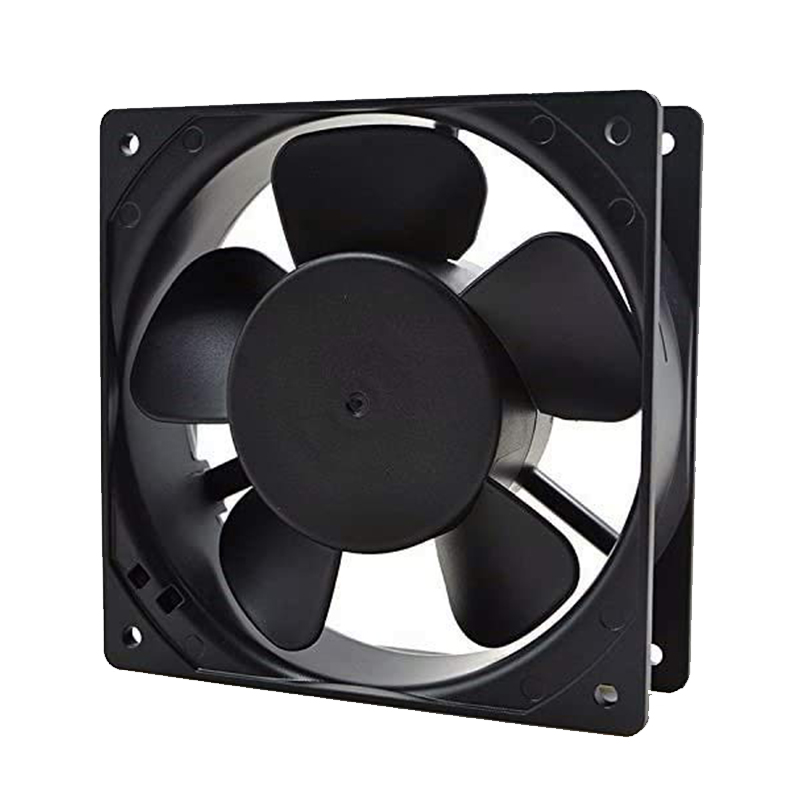

UF-12A11BTH FULLTECH Axial Fan

Brand :: FULLTECH

Model:: UF-12A11BTH | Fulltech 115VAC 12W AC Axial Fan for Control Cabinet and Power Supply Cooling

Type:: Axial Fans

Industry:: Automation

Description:: In industrial cabinets and power supplies, UF-12A11BTH supplies airflow through a 120 × 120 × 38 mm, 115 VAC AC axial fan configuration. A die-cast frame and ball bearings define the mechanical design, while terminal connection supports integration. Rated data: 12 W input, up to 180 m³/h, 3100 rpm, 46 dB.

Datasheet:: UF-12A11BTH | Fulltech 115VAC 12W AC Axial Fan for Control Cabinet and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	115
Size(mm)	12012038
Max.Air Flow(m³/h)	180
Input Power(W)	12
Speed(rpm)	3100
Noise(db)	46

Product Features

Reliable AC Cooling

The UF-12A11BTH from Fulltech is an AC axial fan for power supplies. Equipment builders can integrate it where dependable air exchange is needed around thermally loaded parts.

The 180 m3/h maximum airflow supports active heat removal. Designers should compare the fan curve with the finished air path rather than select from free-air delivery alone. The terminal connection distinguishes the installation interface, helping OEM teams align wiring access with cabinet assembly and service requirements.

For OEM production and service programs, UF-12A11BTH provides a documented cooling component. Check supply, connector, airflow direction and environmental limits before release. Keep inlet and outlet clearances consistent with the installation drawing.

Application Industry

Industrial Electronics

Fulltech UF-12A11BTH is used in industrial electronic equipment, moving air around electronic assemblies to address continuous component heat. The fan gives OEM equipment a planned airflow route, supports stable equipment operation and helps reduce localized heat.

Control Cabinets

Fulltech UF-12A11BTH is used in control cabinets, moving air around drives and controllers to address heat trapped inside the enclosure. The fan gives OEM equipment a planned airflow route, supports reliable control-system duty and helps reduce localized heat.

Power Supplies

Fulltech UF-12A11BTH supports power supplies, where airflow across power-conversion components helps manage conversion losses. The fan contributes to dependable power delivery by moving heat away from critical areas and maintaining a planned ventilation path within the equipment.

Industrial Instruments

Fulltech UF-12A11BTH is used in industrial instruments, moving air around sensitive internal electronics to address localized thermal buildup. The fan gives OEM equipment a planned airflow route, supports measurement and control stability and helps reduce localized heat.

Frequently Asked Questions

What equipment is UF-12A11BTH intended to cool?

It is documented for control cabinets, power supplies, instruments, and compact industrial enclosures. Confirm the 120 × 120 × 38 mm envelope and airflow path against the host equipment.

Can UF-12A11BTH be used for continuous-duty cooling?

The reference specifies ball bearings and cites a general service-life basis above 40,000 hours at 40°C for this fan family. Actual life depends on temperature, loading, and maintenance.

What installation checks apply to UF-12A11BTH?

Keep inlet and outlet clear, secure the frame without distortion, follow the documented connection method, and verify voltage before energizing.

How can UF-12A11BTH help manage operating cost?

Use its listed 180 m³/h maximum airflow at 3100 rpm to avoid oversizing and compare power input with the required duty point. System-level savings depend on airflow resistance and run time.

How does noise affect selection of UF-12A11BTH?

The listed noise value is 46 dB. Compare it at the intended duty point and installation distance because enclosure acoustics can change the result.
