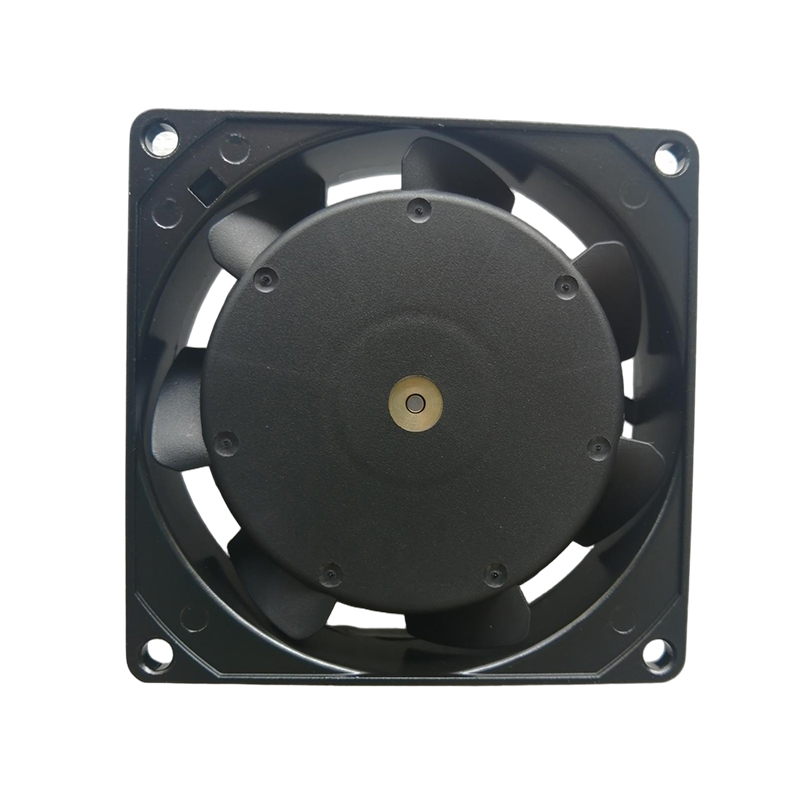

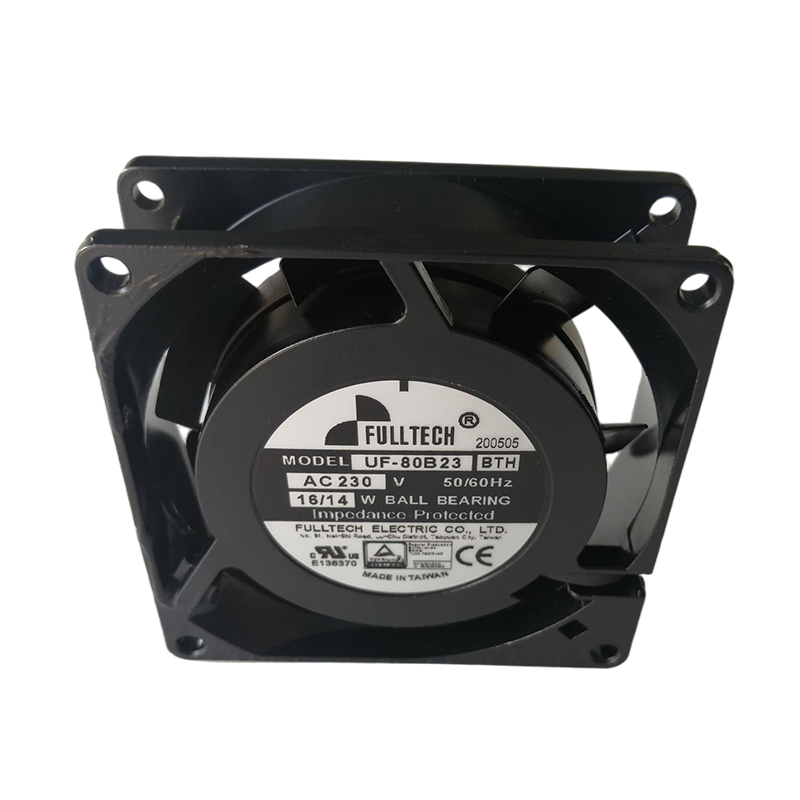

UF-80B23BTH FULLTECH Axial Fan

Brand :: FULLTECH

Model:: UF-80B23BTH | Fulltech 230VAC 14W AC Axial Fan for Control Cabinet and Power Supply Cooling

Type:: Axial Fans

Industry:: Automation

Description:: The 230 VAC UF-80B23BTH is a 80 × 80 × 25 mm AC axial fan specified for industrial cabinets and power supplies. Motor protection is a key selection detail, supported by a die-cast frame, ball bearings, and terminal connection. Rated data: 14 W input, up to 39 m³/h, 3100 rpm, 35 dB. Its stated size and electrical data support installation planning.

Datasheet:: UF-80B23BTH | Fulltech 230VAC 14W AC Axial Fan for Control Cabinet and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	808025
Max.Air Flow(m³/h)	39
Input Power(W)	14
Speed(rpm)	3100
Noise(db)	35

Product Features

Low Noise Cooling

Fulltech UF-80B23BTH supports power supplies with AC axial fan cooling. The design helps move warm air out of confined equipment spaces before heat affects nearby components.

With a listed maximum airflow of 39 m3/h, the fan can move useful cooling air through the equipment. Final performance depends on the pressure loss of the complete assembly. The aluminum die-cast frame provides rigid motor support, while the axial impeller maintains a direct equipment airflow path. A smooth inlet and outlet transition helps convert the documented fan performance into useful airflow through the finished product.

For OEM production and service programs, UF-80B23BTH provides a documented cooling component. Check supply, connector, airflow direction and environmental limits before release.

Application Industry

Industrial Electronics

Fulltech UF-80B23BTH is used in industrial electronic equipment, moving air around electronic assemblies to address continuous component heat. The fan gives OEM equipment a planned airflow route, supports stable equipment operation and helps reduce localized heat.

Control Cabinets

Fulltech UF-80B23BTH is used in control cabinets, moving air around drives and controllers to address heat trapped inside the enclosure. The fan gives OEM equipment a planned airflow route, supports reliable control-system duty and helps reduce localized heat.

Power Supplies

Fulltech UF-80B23BTH supports power supplies, where airflow across power-conversion components helps manage conversion losses. The fan contributes to dependable power delivery by moving heat away from critical areas and maintaining a planned ventilation path within the equipment.

Industrial Instruments

Fulltech UF-80B23BTH is used in industrial instruments, moving air around sensitive internal electronics to address localized thermal buildup. The fan gives OEM equipment a planned airflow route, supports measurement and control stability and helps reduce localized heat.

Frequently Asked Questions

Is UF-80B23BTH suitable for high-reliability thermal management?

Its ball-bearing construction and documented motor protection support industrial cooling use. Reliability still depends on correct sizing, clean airflow, and operation within ratings.

What should be checked if UF-80B23BTH stops or airflow drops?

Confirm the 230 VAC supply, wiring, obstructions, impeller freedom, and protection status. Replace or service only after isolating power.

Does UF-80B23BTH use a ball-bearing design?

Yes. Ball bearings are listed in the supplied model reference; installation temperature and loading still influence service life.

How should procurement confirm availability for UF-80B23BTH?

Stock and lead time can change. Confirm the exact model suffix, quantity, and required delivery date with the supplier before ordering.

Does UF-80B23BTH support speed control?

Speed-control capability is not stated in the supplied reference. Use the rated supply and confirm any controller with the datasheet or supplier before installation.
