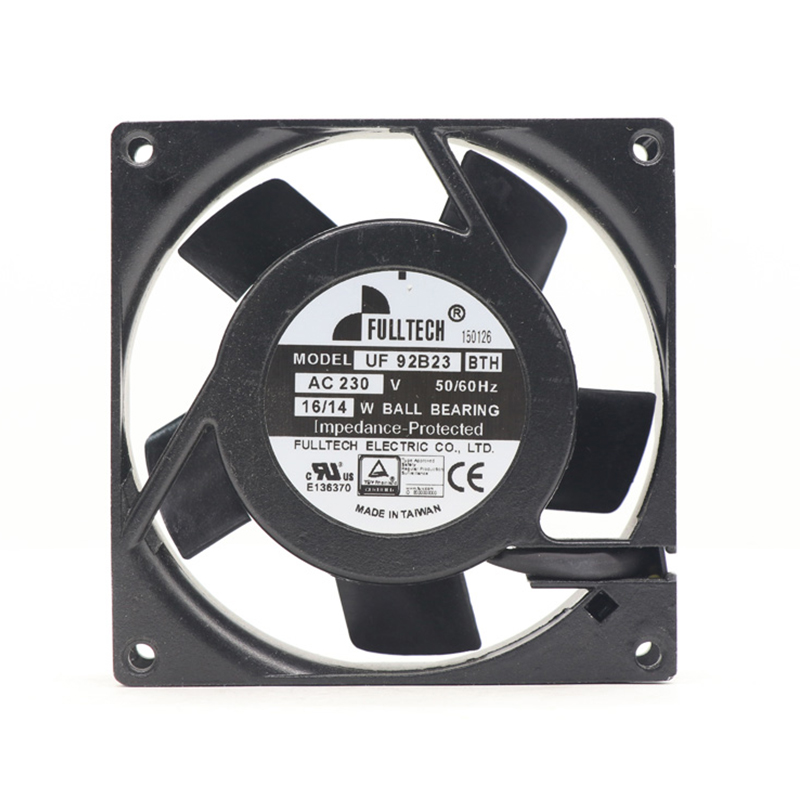

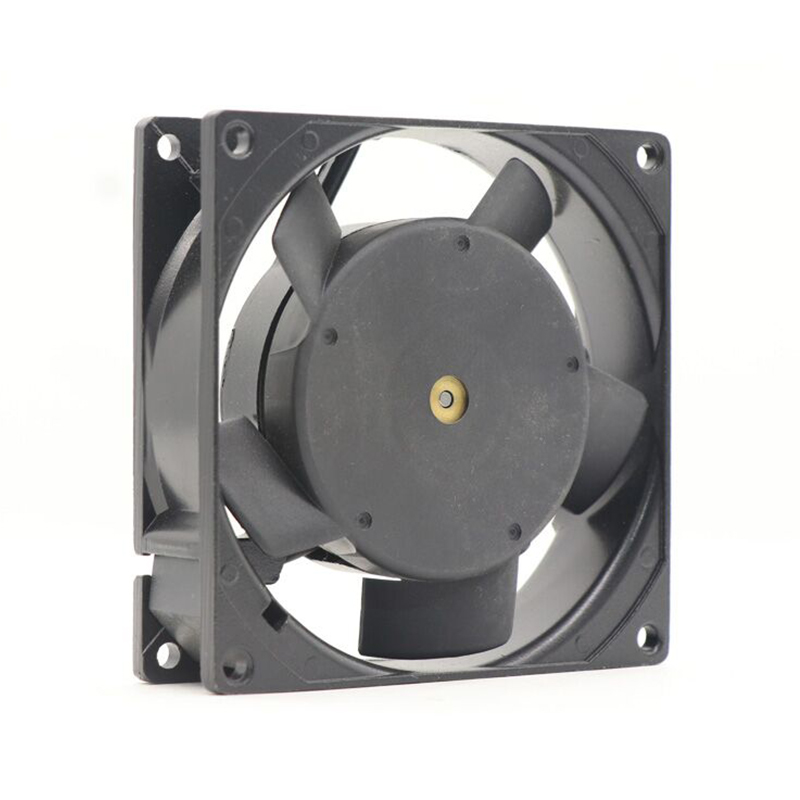

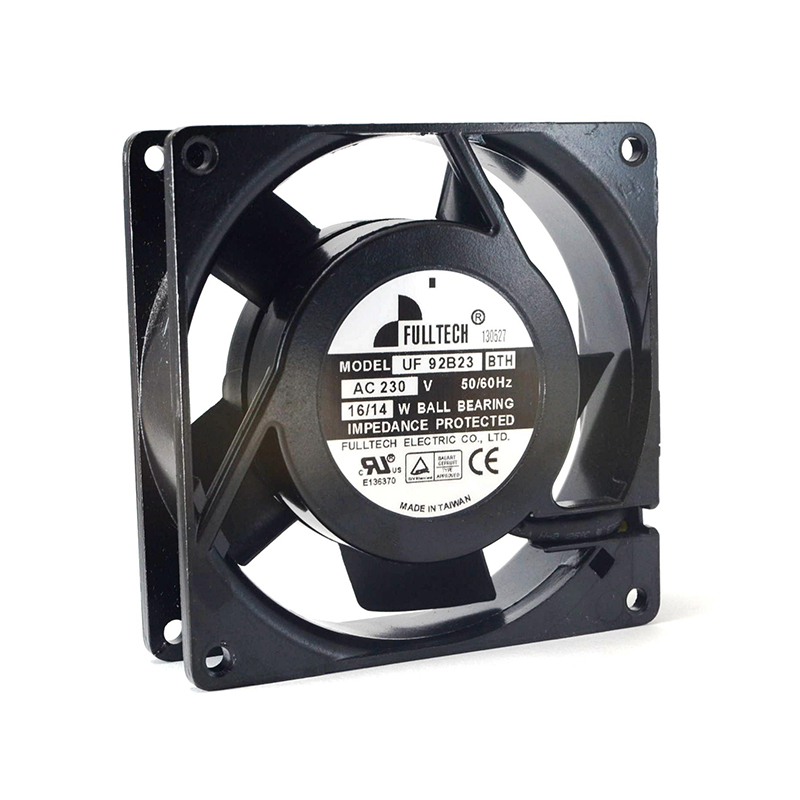

UF-92B23BTH FULLTECH Axial Fan

Brand :: FULLTECH

Model:: UF-92B23BTH | Fulltech 230VAC 16W AC Axial Fan for Control Cabinet and Power Supply Cooling

Type:: Axial Fans

Industry:: Automation

Description:: Built around 92 × 92 × 25 mm, the UF-92B23BTH uses a 230 VAC AC axial fan arrangement for industrial cabinets and power supplies. Ball-bearing construction is the central durability detail, paired with terminal connection and motor protection. Rated data: 16 W input, up to 68 m³/h, 3000 rpm, 36 dB.

Datasheet:: UF-92B23BTH | Fulltech 230VAC 16W AC Axial Fan for Control Cabinet and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	929225
Max.Air Flow(m³/h)	68
Input Power(W)	16
Speed(rpm)	3000
Noise(db)	36

Product Features

Low Noise Cooling

Designed for industrial electronic equipment, Fulltech UF-92B23BTH provides AC axial fan airflow in a compact equipment-ready format. It helps prevent local hot spots during continuous operation.

A listed air-delivery ceiling of 68 m3/h supports thermal planning for the target equipment. Clear inlet space and a defined outlet reduce avoidable flow loss. The terminal connection distinguishes the installation interface, helping OEM teams align wiring access with cabinet assembly and service requirements.

For design-in or replacement purchasing, UF-92B23BTH offers a model-specific industrial cooling option. Verify wiring, airflow direction and operating conditions against the exact datasheet.

Application Industry

Industrial Electronics

Fulltech UF-92B23BTH supports industrial electronic equipment, where airflow across electronic assemblies helps manage continuous component heat. The fan contributes to stable equipment operation by moving heat away from critical areas and maintaining a planned ventilation path within the equipment.

Control Cabinets

Fulltech UF-92B23BTH is used in control cabinets, moving air around drives and controllers to address heat trapped inside the enclosure. The fan gives OEM equipment a planned airflow route, supports reliable control-system duty and helps reduce localized heat.

Power Supplies

Applied in power supplies, Fulltech UF-92B23BTH provides forced airflow around power-conversion components. These systems require reliable ventilation to handle conversion losses; the fan supports dependable power delivery and gives OEM designers a practical equipment-cooling solution.

Industrial Instruments

Fulltech UF-92B23BTH is used in industrial instruments, moving air around sensitive internal electronics to address localized thermal buildup. The fan gives OEM equipment a planned airflow route, supports measurement and control stability and helps reduce localized heat.

Frequently Asked Questions

What rated voltage is required by UF-92B23BTH?

The documented rating is 230 VAC. Verify mains frequency, wiring, and protective devices before commissioning.

What protection features are documented for UF-92B23BTH?

Thermal or impedance protection is documented for this model. No additional protection or certification should be assumed beyond the supplied documentation.

What maintenance is recommended for UF-92B23BTH?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Disconnect power before cleaning or service.

Which performance figures should buyers verify for UF-92B23BTH?

Review rated voltage, size, input power, 68 m³/h maximum airflow, and 3000 rpm against the actual duty point.

What standards information is available for UF-92B23BTH?

The supplied reference documents AC 1,500 V dielectric withstand for applicable AC models. Confirm any project-specific certification directly from the datasheet or supplier.
