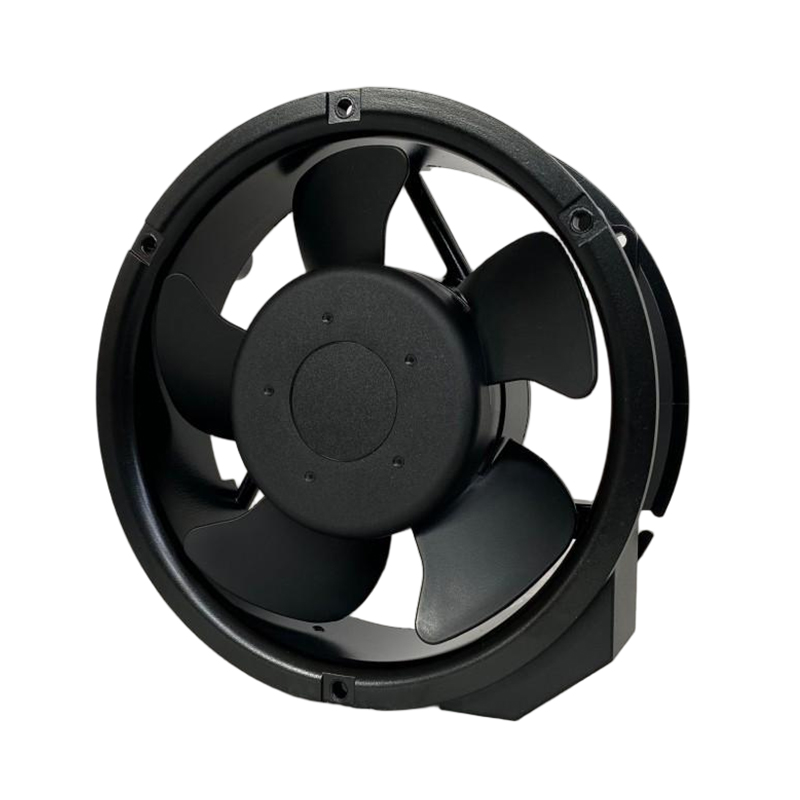

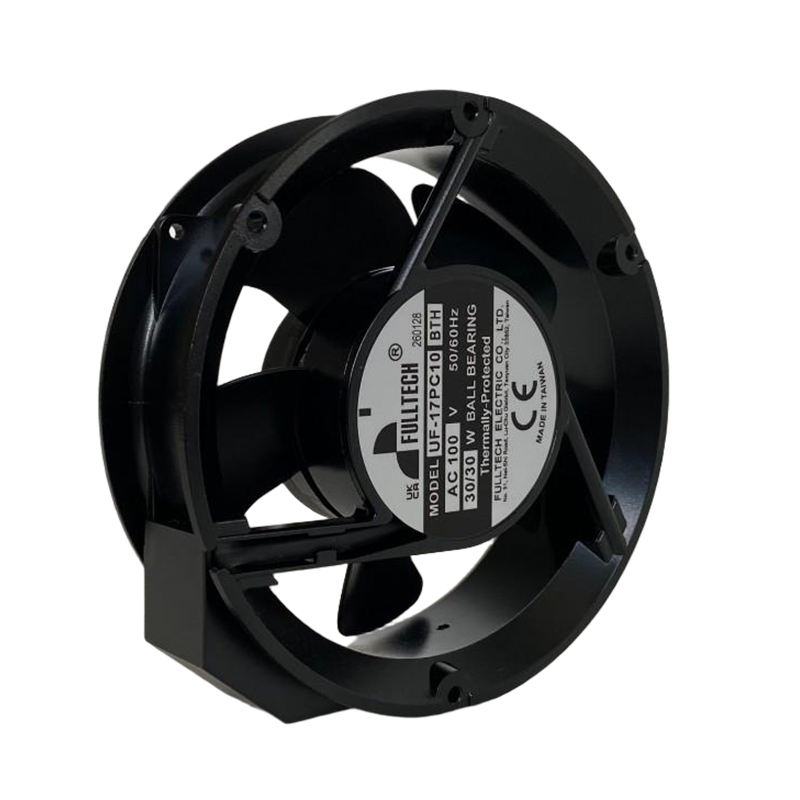

UF-17PC10BTH FULLTECH Axial Fan

Brand :: FULLTECH

Model:: UF-17PC10BTH | Fulltech 100VAC 30W AC Axial Fan for HVAC and Industrial Equipment Cooling

Type:: Axial Fans

Industry:: HVAC & Ventilation

Description:: UF-17PC10BTH addresses HVAC and industrial cooling as a 100 VAC AC axial fan housed in a Ø172 × 51 mm frame. Its die-cast aluminum frame is the representative structural feature; ball bearings and terminal connection are also documented. Rated data: 30 W input, up to 384 m³/h, 2850 rpm, 50 dB.

Datasheet:: UF-17PC10BTH | Fulltech 100VAC 30W AC Axial Fan for HVAC and Industrial Equipment Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	100
Size(mm)	φ172*51
Max.Air Flow(m³/h)	384
Input Power(W)	30
Speed(rpm)	2850
Noise(db)	50

Product Features

Reliable AC Cooling

The UF-17PC10BTH from Fulltech is an AC axial fan for heat exchangers. Equipment builders can integrate it where dependable air exchange is needed around thermally loaded parts.

The 384 m3/h maximum airflow supports active heat removal. Designers should compare the fan curve with the finished air path rather than select from free-air delivery alone. Ball-bearing construction supports rotational stability and a long-life fan design; the series guidance states more than 40,000 hours at 40°C under its defined conditions.

The UF-17PC10BTH suits OEM engineers, equipment manufacturers and maintenance buyers seeking a reliable Fulltech fan. Confirm the complete suffix, connection, mounting and ambient limits before approval.

Application Industry

HVAC & Refrigeration

Fulltech UF-17PC10BTH is used in HVAC and refrigeration equipment, moving air around heat-exchange sections to address recurring heating and cooling loads. The fan gives OEM equipment a planned airflow route, supports stable system operation and helps reduce localized heat.

Heat Exchangers

Fulltech UF-17PC10BTH is used in heat exchangers, moving air around coil and exchanger surfaces to address thermal energy transferred through the assembly. The fan gives OEM equipment a planned airflow route, supports effective heat rejection and helps reduce localized heat.

Industrial Ventilation

Fulltech UF-17PC10BTH is used in industrial ventilation systems, moving air around equipment air passages to address continuous ventilation demand. The fan gives OEM equipment a planned airflow route, supports controlled air circulation and helps reduce localized heat.

Frequently Asked Questions

What standards information is available for UF-17PC10BTH?

The supplied reference documents AC 1,500 V dielectric withstand for applicable AC models. Confirm any project-specific certification directly from the datasheet or supplier.

Why select UF-17PC10BTH instead of a general-purpose fan?

This AC axial fan combines the listed 100 VAC supply and 384 m³/h maximum airflow at 2850 rpm with model-specific construction documented by Fulltech.

What rated voltage is required by UF-17PC10BTH?

The documented rating is 100 VAC. Verify mains frequency, wiring, and protective devices before commissioning.

What protection features are documented for UF-17PC10BTH?

Thermal or impedance protection is documented for this model. No additional protection or certification should be assumed beyond the supplied documentation.

What maintenance is recommended for UF-17PC10BTH?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Disconnect power before cleaning or service.
