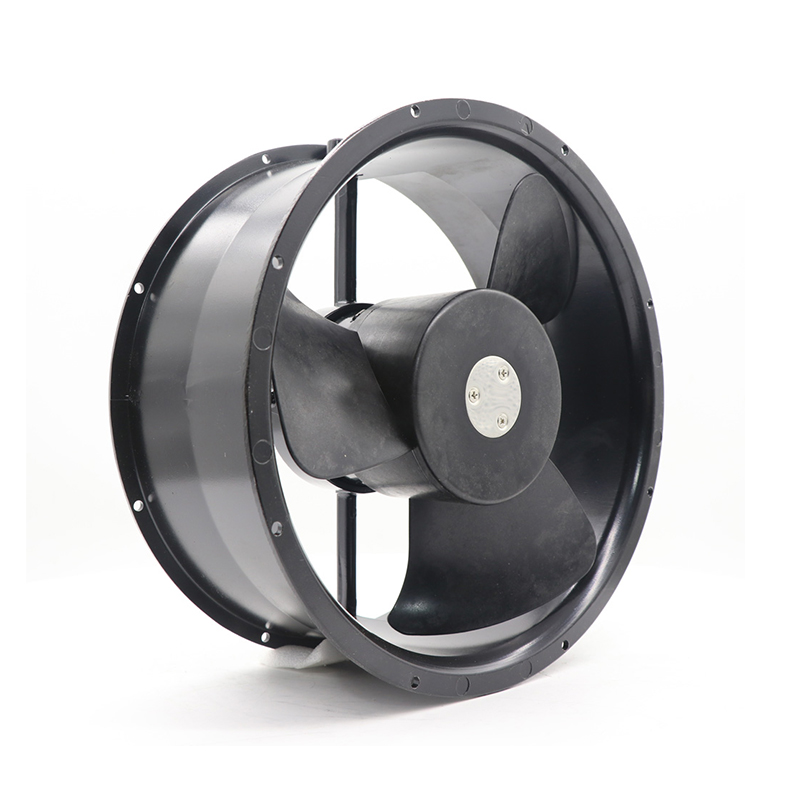

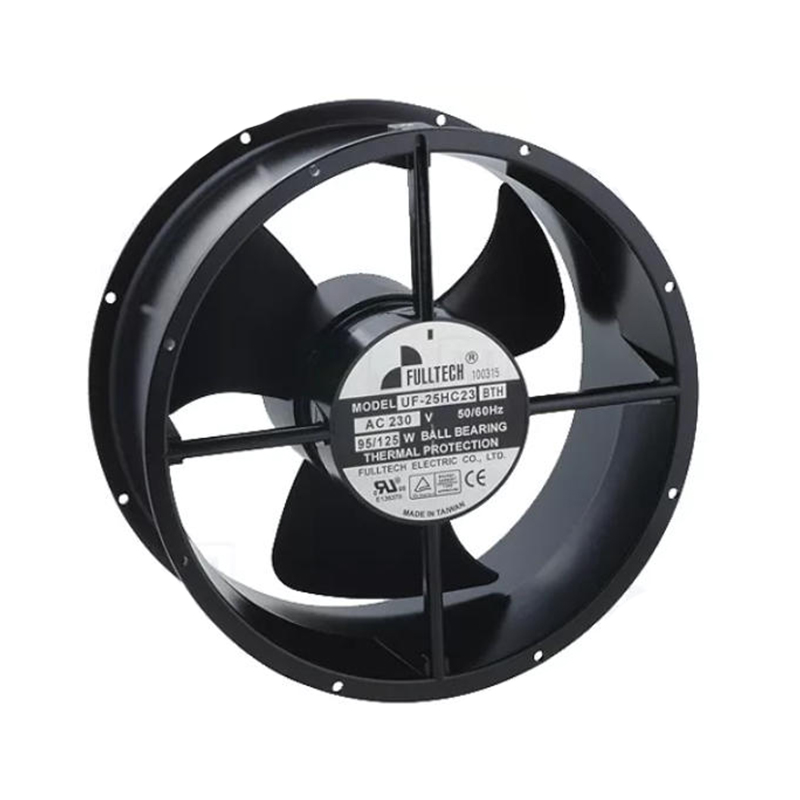

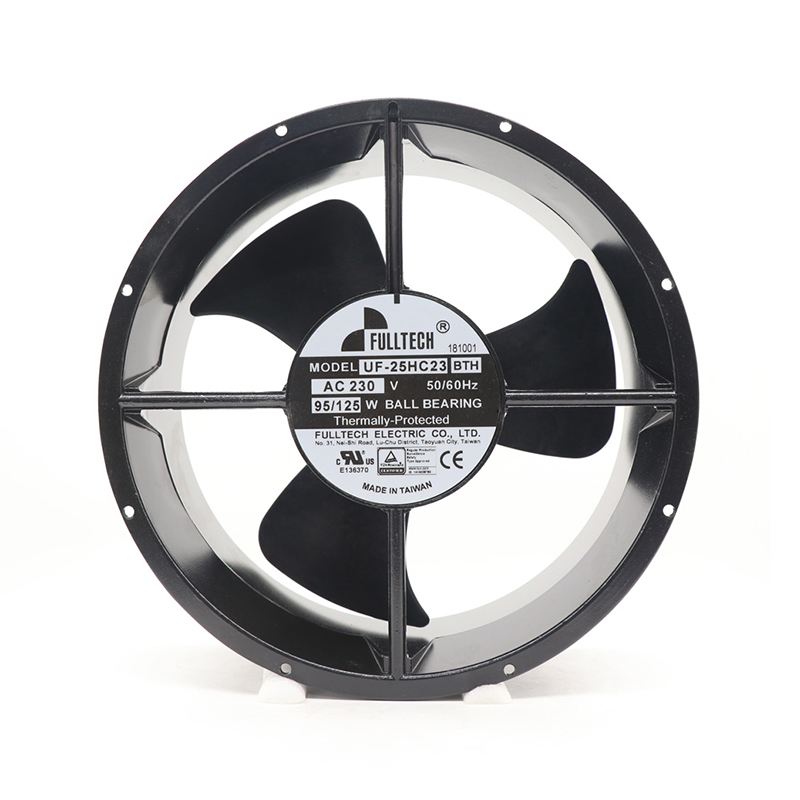

UF-25HC23BTH FULLTECH Axial Fan

Brand :: FULLTECH

Model:: UF-25HC23BTH | Fulltech 230VAC 125W AC Axial Fan for HVAC and Industrial Equipment Cooling

Type:: Axial Fans

Industry:: HVAC & Ventilation

Description:: Serving HVAC and industrial cooling, the UF-25HC23BTH combines 230 VAC operation with a Ø254 × 107 mm AC axial fan design. Its documented capacitor-start operation differentiates the design; the fan also uses a die-cast frame and ball bearings. Rated data: 125 W input, up to 1445 m³/h, 2750 rpm, 65 dB.

Datasheet:: UF-25HC23BTH | Fulltech 230VAC 125W AC Axial Fan for HVAC and Industrial Equipment Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	φ254*107
Max.Air Flow(m³/h)	1445
Input Power(W)	125
Speed(rpm)	2750
Noise(db)	65

Product Features

High Airflow Cooling

For heat exchangers, the Fulltech UF-25HC23BTH serves as an AC axial fan. Its airflow supports temperature control in equipment that must remain stable through repeated operating cycles.

With a listed maximum airflow of 1445 m3/h, the fan can move useful cooling air through the equipment. Final performance depends on the pressure loss of the complete assembly. The aluminum die-cast frame provides rigid motor support, while the axial impeller maintains a direct equipment airflow path.

Equipment builders can select UF-25HC23BTH when its duty point and installation envelope match the system. Exact-model verification supports reliable operation and long service life. The final assembly should be tested at its expected thermal load.

Application Industry

HVAC & Refrigeration

Fulltech UF-25HC23BTH is used in HVAC and refrigeration equipment, moving air around heat-exchange sections to address recurring heating and cooling loads. The fan gives OEM equipment a planned airflow route, supports stable system operation and helps reduce localized heat.

Heat Exchangers

Fulltech UF-25HC23BTH is used in heat exchangers, moving air around coil and exchanger surfaces to address thermal energy transferred through the assembly. The fan gives OEM equipment a planned airflow route, supports effective heat rejection and helps reduce localized heat.

Industrial Ventilation

Fulltech UF-25HC23BTH is used in industrial ventilation systems, moving air around equipment air passages to address continuous ventilation demand. The fan gives OEM equipment a planned airflow route, supports controlled air circulation and helps reduce localized heat.

Frequently Asked Questions

Why select UF-25HC23BTH instead of a general-purpose fan?

This AC axial fan combines the listed 230 VAC supply and 1445 m³/h maximum airflow at 2750 rpm with model-specific construction documented by Fulltech.

What rated voltage is required by UF-25HC23BTH?

The documented rating is 230 VAC. Verify mains frequency, wiring, and protective devices before commissioning.

What protection features are documented for UF-25HC23BTH?

Thermal or impedance protection is documented for this model. No additional protection or certification should be assumed beyond the supplied documentation.

What maintenance is recommended for UF-25HC23BTH?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Disconnect power before cleaning or service.

Which performance figures should buyers verify for UF-25HC23BTH?

Review rated voltage, size, input power, 1445 m³/h maximum airflow, and 2750 rpm against the actual duty point.

What standards information is available for UF-25HC23BTH?

The supplied reference documents AC 1,500 V dielectric withstand for applicable AC models. Confirm any project-specific certification directly from the datasheet or supplier.
